Aiphone PS-1225 Installation Manual

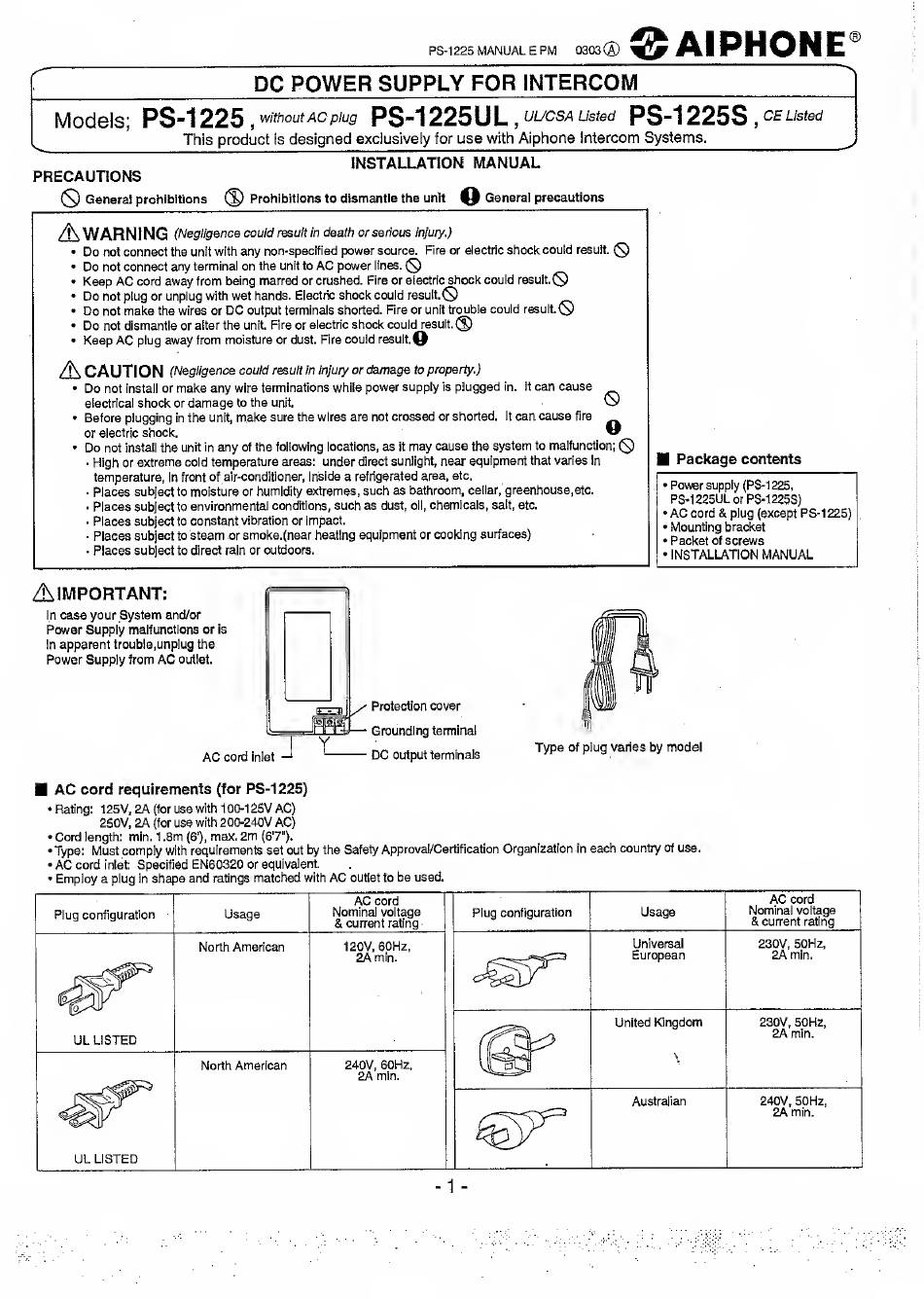

INSTALLATION MANUAL
PRECAUTIONS
(^) General prohibitions (^) Prohibitions to dismantle the unit Q General precautions
A
WARNING
(Negligence could result in death or serious injury.)
•
Do not connect the unit with any non-specified power source. Fire or electric shock could result. 0
• Do not connect any terminal on the unit to AC power lines. 0
• Keep AC cord away from being marred or crushed. Fire or electric shock could result.0
• Do not plug or unplug with wet hands. Electric shock could result.0
• Do not make the wires or DC output terminals shorted. Fire or unit trouble could result.0
• Do not dismantle or alter the unit. Fire or electric shock could result. 0
• Keep AC plug away from moisture or dust. Fire couid result. o
A
CAUTION
(Negligence could result in injury or damage to property.)
•
Do not install or make any wire terminations while power supply is plugged in. it can cause
electrical shock or damage to the unit.
• Before plugging in the unit, make sure the wires are not crossed or shorted, it can cause fire
or electric shock. V
• Do not install the unit in any of the following locations, as it may cause the system to malfunction; 0
• High or extreme cold temperature areas: under direct sunlight, near equipment that varies in
temperature, in front of air-conditioner, inside a refrigerated area, etc.
• Places subject to moisture or humidity extremes, such as bathroom, cellar, greenhouse,etc.
• Places subject to environmental conditions, such as dust, oil, chemicals, salt, etc.
• Places subject to constant vibration or impact.
• Places subject to steam or smoke.(near heating equipment or cooking surfaces)
• Places subject to direct rain or outdoors.
■ Package contents
• Power supply (PS-1225,
PS-1225UL or PS-1225S)
• AC cord & plug (except PS-1225)
• Mounting bracket
• Packet of screws
• INSTALLATION MANUAL
A IMPORTANT:
In case your System and/or
Power Supply malfunctions or is
in apparent trouble,unplug the
Power Supply from AC outlet.
AC cord inlet
Protection cover
Grounding terminal
DC output terminals
Type of plug varies by model
AC cord requirements (for PS-1225)
• Rating: 125V, 2A (for use with 100-125V AC)
250V, 2A (for use with 200-240V AC)
• Cord length: min. 1.8m (6'), max. 2m (67").
•Type: Must comply with requirements set out by the Safety Approval/Certification Organization in each country of use.
• AC cord inlet: Specified EN60320 or equivalent.
• Employ a plug in shape and ratings matched with AC outlet to be used.
Plug configuration
UL LISTED
North American 120V, 60Hz,
2A min.
North American
240V, 60Hz,
2A min.
Plug configuration Usage
—1
Universal
European
230V, 50Hz,
2A min.
United Kingdom
v
230V, 50Hz,
2A min.
Australian 240V, 50Hz,
2A min.
