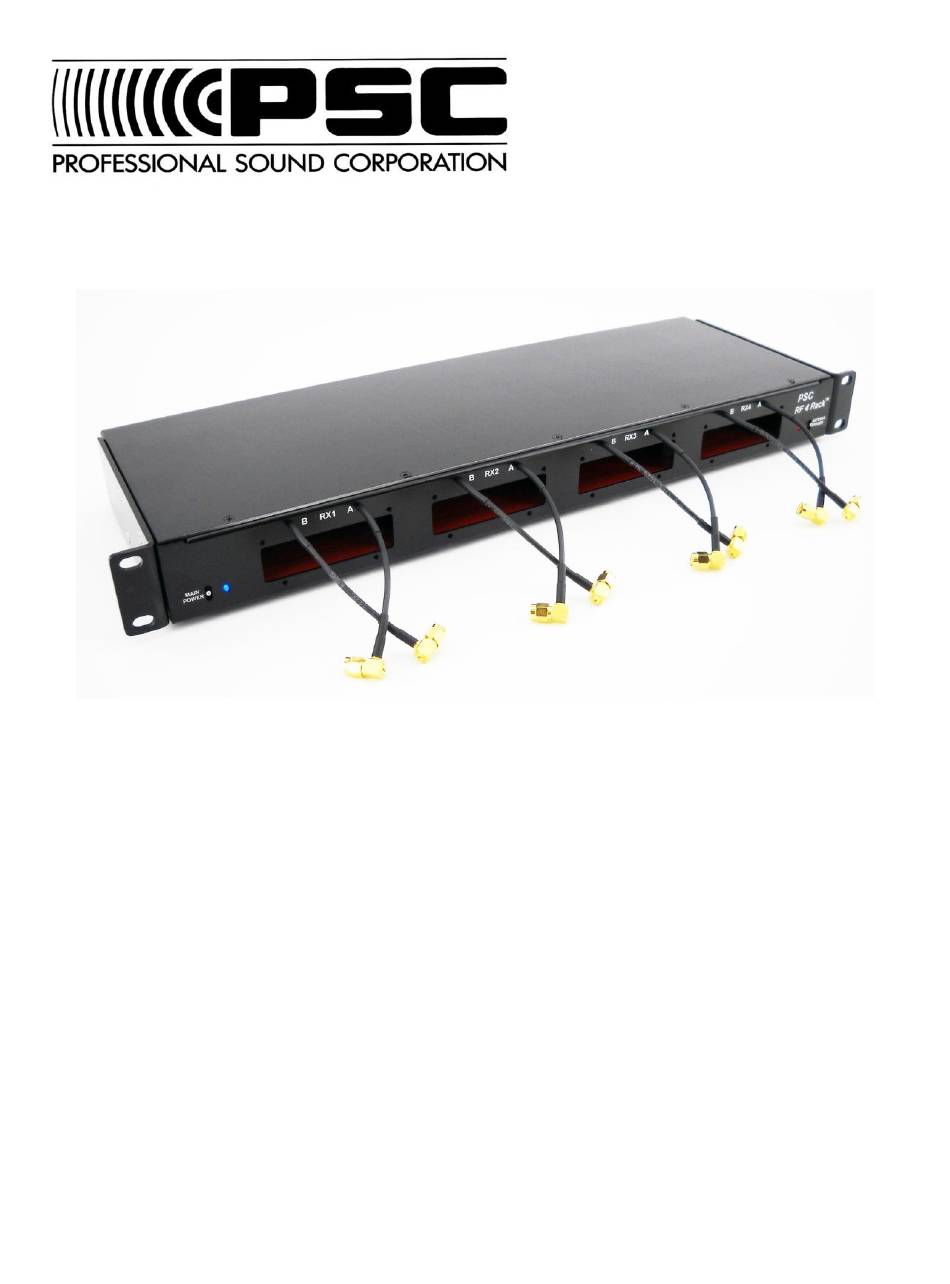

PSC RF SR 4 SLOT RACK
Frequency Ranges:
"Single Band" 470Mhz to 700Mhz
"Dual Band" 470-618Mhz and also Lectro Block 941
"Wide Band" 470Mhz to 960Mhz
• Supports Four Slot Receivers
• Built in RF Distribution and Filtering
• Provides Remote Antenna Powering
• Made in the U.S.A.
Operation Manual Version 1.0
Copyright 2023 Professional Sound Corp
28085 Smyth Drive, Valencia, CA 91355 U.S.A.
CE RoHS Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for PSC RF SR 4 SLOT RACK
Summary of Contents for PSC RF SR 4 SLOT RACK
- Page 1 PSC RF SR 4 SLOT RACK Frequency Ranges: “Single Band” 470Mhz to 700Mhz “Dual Band” 470-618Mhz and also Lectro Block 941 “Wide Band” 470Mhz to 960Mhz • Supports Four Slot Receivers • Built in RF Distribution and Filtering • Provides Remote Antenna Powering •...
- Page 2 Thank you for purchasing your new PSC RF SR 4 Slot Rack. This new product provides low noise RF and power distribution to your Slot Receivers. This new design can be powered by AC (100 to 240Vac) or by 12.8V or 14.4V Batteries or by external DC voltages of 10- 18Vdc.
- Page 3 The PSC RF SR 4 Slot Rack contains built in low noise, high current RF amplifiers and distribution circuitry. The 4-way, active RF splitters will feed high quality RF to your four slot receivers. This rugged device was developed using the latest super low noise RF amplifiers and is offered in...
- Page 4 connector”. This DB25 Connector is wired to the industry standard “Tascam” wiring standards thus making off the shelf cable snake assemblies readily available through Amazon and many audio dealers. FRONT PANEL SHOWING: (left to right) Main Power Switch w/LED Slot Position Slot Position Slot Position Slot Position...
- Page 5 Panel Close Up Photos and Descriptions: Main Power Switch Remote Antenna Power Switch REAR PANEL SHOWING: (left to right) XLR 4 Pin Male External DC Power Input Antenna “B” RF input TB3M Audio Connectors for Slots 3 & 4 DB-25 Multi-Pin Audio Snake Connector TB3M Audio Connectors for Slots 1 &...
- Page 6 External DC Input Antenna “B” Input RX4 and RX3 Audio Outputs in TB3Ms All Audio Outputs on Multi-Pin Snake Tascam Wiring Standard...
- Page 7 AC Input Receptacle RF DISTRIBUTION: Your new PSC RF SR 4 Slot Rack contains RF distribution designed to provide proper, clean RF distribution to your Slot Receivers. Each half of the diversity RF distribution contains a built in DC bias circuit designed to be able to power external remote powered antennas and/or remote RF amplifiers, an RF limiter to help guard against RF overload, RF bandpass filters (various ranges available), a very low noise RF Amplifier, and a RF splitter.
- Page 8 STEP BY STEP USE GUIDE: 1. Install your slot style receivers into the openings on the front of the PSC RF SR 4 Slot Rack noting the correct direction of the DB-25 connectors. Gently slide the receivers into the slots until you feel the DB-25 connectors line up. Once you feel the connectors line up, firmly press the slot receiver fully into place.
-
Page 9: Specifications
SPECIFICATIONS: Size: 17.5” x 6.5” x 1.75” (44.5cm x 16.5cm x 4.5cm) Weight: 3.5Lbs. (1.6 kg) Power: External DC, 12 to 18Vdc @ 185mA AC Power: 90 to 240Vac, 30W RF Input Connector: RF Input Impedance: 50 Ohms RF Output Connector: Maximum Input Signal: +13dB Noise Figure:... -
Page 10: Connector Pinouts
CONNECTOR PINOUTS: External DC Power: Pin 1 = Ground Pin 4 = + 12Vdc Mini XLR: Pin 1 = Ground Pin 2 = Audio + (Hi) Pin 3 = Audio - (Low) DB-25 Multipin Wiring:... -
Page 11: Terms Of Use
LIABILITY FOR PERSONAL AND PROPERTY DAMAGE INCURRED DUE TO ACCIDENT, CARELESS HANDLING, ABUSE OR MISSUSE, IMPROPER CONNECTION, AND/OR INSTALLATION, IMPROPER ELECTRICAL CONTACT OR GROUNDING. OWNERSHIP AND/OR USE OF THE PSC RF SR 4 SLOT RACK CONSTITUTES AGREEMENT WITH THESE TERMS. -
Page 12: Declaration Of Conformity
DECLARATION OF CONFORMITY: STANDARD: EN 60065.2012 Power, Safety EN 55032.2012 Part 1, Emissions EN55032.2012 Part 2, Immunity MODEL: RF Multi SR Four Pack RESPONSIBLE PARTY: Professional Sound Corp. 28085 Smyth Drive Valencia, CA 91355 USA CONTACT PERSON: Ronald Meyer (661) 295-9395 TYPE OF PRODUCT: Antenna Distribution MANUFACTURER:...
