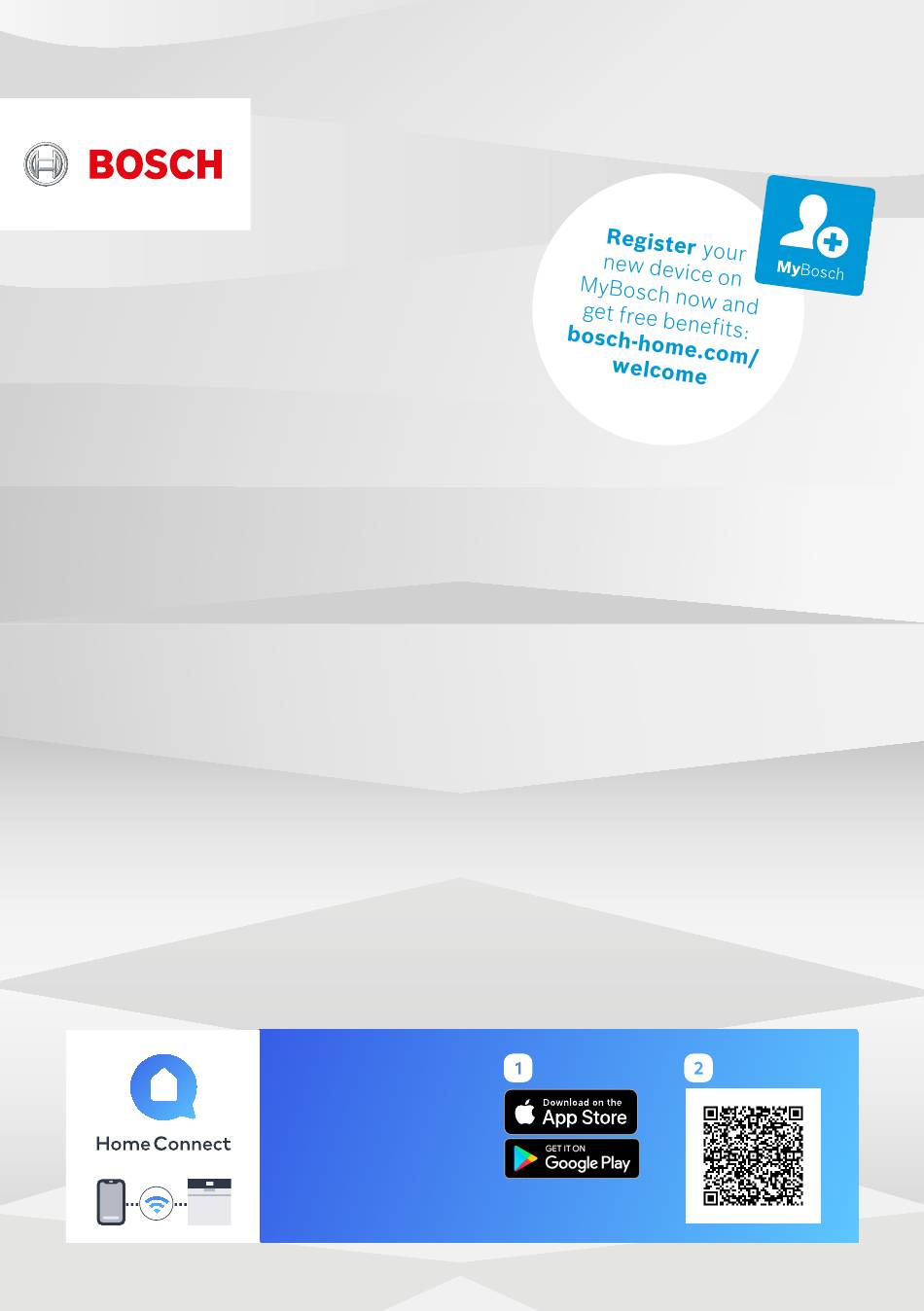

- Page 1 Dishwasher SMS4HCC48E [en] Information for Use Connect Get the app Scan QR code your dishwasher with Home Google Play and the Google Play logo are trademarks of Google Connect today! LLC. Apple and the Apple logo are trademarks of Apple Inc.
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety .......... 4 8.2 Etagere ........ 21 1.1 General information.... 4 8.3 Bottom basket ...... 21 1.2 Intended use....... 4 8.4 Folding prongs ...... 22 1.3 Restriction on user group... 4 8.5 Cutlery drawer ...... 22 1.4 Safe installation ...... 4 9 Before using for the first time ... - Page 3 14 Basic operation ...... 31 21 Technical specifications.. 51 14.1 Switching on the appliance .. 31 21.1 Information regarding Free and Open Source Software.. 51 14.2 Setting a programme ..... 32 14.3 Setting additional functions .. 32 22 Declaration of Conformity .. 52 14.4 Setting timer programming .. 32 14.5 Starting the programme .. 32 14.6 Activating button lock..... 32...
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. ▶ Check that there is a distance of at least 5 cm between the ap- pliance and installation lines. -
Page 7: Damaged Appliance
Safety en ▶ Do not sit or stand on the appliance door when open. Knives and utensils with sharp points can cause injuries. ▶ Arrange knives and utensils with sharp points in the cutlery bas- ket with the points downwards, on the knife shelf or in the cut- lery drawer. -
Page 8: Risk To Children
en Safety ▶ If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box and turn off the water tap. ▶ Call customer services. → Page 49 Incorrect repairs are dangerous. ▶... - Page 9 Safety en WARNING ‒ Risk of crushing! With higher-level appliances, children can become crushed between the appliance door and cabinet doors underneath. ▶ Keep an eye on children when opening and closing the appli- ance door. WARNING ‒ Risk of chemical burns! Rinse aid and detergent may cause chemical burns to the mouth, throat and eyes.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on ▶ 4 Installation and con- the appliance, do not use sponges with a rough surface or abrasive nection cleaning agents. To prevent corrosion, do not use To ensure proper operation, connect ▶... -
Page 12: Drainage Connection
en Installation and connection installing it under a continuous work- 4.4 Drinking water connec- top that is securely connected to ad- tion jacent cabinets. Follow the safety instructions. Connect your appliance to a drinking → Page 4 water connection. Follow the instructions for electrical Installing the drinking water connection. -
Page 13: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 50. The data you need for Customer Service → Page 49. - Page 14 en Familiarising yourself with your appliance Detergent dispenser Detergent is added to the detergent dis- penser. Bottom basket Bottom basket → Page 21 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 23 Lower spray arm The lower spray arm washes the table- ware in the bottom basket.
-
Page 15: Controls
Familiarising yourself with your appliance en 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 3 4 5 6 7 ON/OFF button and reset Switching on the appliance... -
Page 16: Programmes
en Familiarising yourself with your appliance Programme buttons and addi- Programmes tional functions → "Programmes", Page 17 Additional functions → "Additional functions", Page 20 Remote Start → "Remote Start ", Page 37 Timer programming Setting timer programming → Page 32 Display The display shows information about the remaining running time or the ba- sic settings. - Page 17 Programmes en 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 18: Information For Test Institutes
en Programmes Programme Programme se- quence Tableware: Time-optimised: ¡ Mixed tableware and cutlery ¡ Cleaning 65 °C Express 65° - 1h Level of soiling: ¡ Intermediate rinse ¡ Common household food rem- ¡ Final rinse 69 °C nants lightly dried on ¡ Dry Use only if appliance is unloaded. - Page 19 Programmes en Tip: To reset the programme to the pre-rinse programme stored at the factory, use the Home Connect app or reset your appliance to the factory settings. Depending on the appliance specifications...
-
Page 20: Features
en Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 21: Etagere
Features en You can adjust the height of the top 8.2 Etagere basket to make room for larger items Use the cutlery shelf and space un- of tableware. derneath for small cups and glasses Adjusting top basket with side or for large items of cutlery, e.g. levers cooking spoons or serving cutlery. -
Page 22: Folding Prongs
en Features Push the lever forwards and fold down the prongs . 8.4 Folding prongs To use the prongs again, fold them Use the folding prongs to position back up. tableware securely, e.g. plates. a The prongs audibly click into posi- tion. -
Page 23: Before Using For The First Time
first time en Add detergent → Page 27. first time 9 Before using for the Start the Programme with the first time highest cleaning temperature without tableware. first time To remove any marks from water 9.1 Performing the initial con- or other residues, we recommend figuration you operate the appliance without tableware before using it for the... -
Page 24: Setting The Water Softening System
en Water softening system Water hardness Hardness range mmol/l Setting value °E 39 - 62 Hard 5.5 - 8.9 Note: Set the water hardness determ- hardness. The higher the water hard- ined on your appliance. ness, the greater the consumption of special salt. → "Setting the water softening sys- tem", Page 24 ATTENTION! -
Page 25: Switching Off The Water Softening System
Water softening system en Place the lid back on the dis- 10.5 Regeneration of the wa- penser and turn to close. ter softening system 10.4 Switching off the water In order to obtain fault-free function of the water softening system, the appli- softening system ance performs regeneration of the If you find the special salt refill indic- water softening system at regular in-... -
Page 26: Rinse Aid System
en Rinse aid system Close the lid of the dispenser for 11 Rinse aid system rinse aid. a The lid clicks into position. 11.1 Rinse aid 11.2 Setting the amount of For optimum drying results, use rinse rinse aid aid. Only use rinse aid for domestic dish- If there are streaks or water marks on washers. -
Page 27: Detergent
Detergent en a The display shows Hxx. Powder detergent a The display shows . Powder detergent is recommended Press repeatedly until for shorter programmes. the display shows the value r05 The dosage can be adjusted to the set at the factory. level of soiling. -
Page 28: Unsuitable Detergents
en Detergent According to the manufacturers, ness, usually 26 °E, without combined detergents generally only adding special salt. For the best function up to a water hardness of washing and drying results we re- 26 °E. With a water hardness above commend using special salt from a 26 °E you will need to add special water hardness of 17 °E. - Page 29 Tableware en Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is a The lid clicks into position. enough. Insert the tablets in a hori- a The detergent dispenser will open zontal position.
-
Page 30: Tableware
en Tableware 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. -
Page 31: Removing Tableware
operation en ¡ For better washing and drying res- ults, position items with curves or recesses at an angle so water can run off. 13.3 Removing tableware WARNING Remove large remnants of food Risk of injury! from tableware. Hot tableware can cause burns to the To save resources, do not pre- skin. -
Page 32: Setting A Programme
en operation The Eco 50° programme is espe- 14.4 Setting timer program- cially environmentally friendly and ming ideal for normally soiled tableware. It is the most efficient programme You can delay the start of the pro- for the combination of energy/wa- gramme by up to 24 hours. ter consumption for this type of Press ... -
Page 33: Deactivate Button Lock
operation en a The button lock is activated and Tip: If you press during the wash will be automatically deactivated at cycle, the programme currently run- the end of the programme. ning will be interrupted. When you a When the appliance is operated, switch the appliance back on, the flashes on the display. -
Page 34: Basic Settings
en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H00 - H07 Set the water softening sys- tem to your water hardness. -
Page 35: Changing Basic Settings
Basic settings en Basic setting Display text Selection Description Wi-Fi Cn0 - Cn1 Switch the wireless network connection on or off. Level "Cn0" switches the wireless network connection off. The basic setting "Wi-Fi" is only available once the ap- pliance is connected to the Home Connect app. -
Page 36: Home Connect Quick Start
en Home Connect You can change several settings. 16.1 Home Connect quick To save the settings, press start for 3 seconds. Connect your appliance to a mobile device quickly and easily. Home Connect 16 Home Connect Installing app Install the Home Connect app on This appliance is network-capable. Home Connect your mobile device. -
Page 37: Remote Start
Cleaning and servicing en ¡ Security certificate of the Wi-Fi 16.2 Remote Start communication module (to ensure You can use the Home Connect app a secure data connection). to start the appliance with your mo- ¡ The current software and hardware bile device. version of your appliance. -
Page 38: Cleaning Products
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.bosch-home.com/ mend cleaning your appliance at reg- store or from customer service. ular intervals. Machine Care is a programme which... -
Page 39: Filter System
Cleaning and servicing en Running Machine Care 17.5 Filter system Notes The filter system removes coarse ¡ Run the Machine Care programme soiling from the dishwashing cycle. without any tableware in the dish- washer. ¡ Only use machine care products and machine cleaners specially designed for dishwashers. -
Page 40: Cleaning Spray Arms
en Cleaning and servicing Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ... - Page 41 Cleaning and servicing en Pull up the lower spray arm to re- move. Check the outlet nozzles on the spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. a The spray arm clicks into position. Insert the upper spray arm and screw it firmly in place.
-
Page 42: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website www.bosch-home.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 43 Troubleshooting en Fault Cause and troubleshooting E:32-00 will light up Remove the filter from the supply hose alternately or indicator for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks. Restore the power supply.
- Page 44 en Troubleshooting Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Siphon connection is still alternately. Water is closed or the wastewater hose is kinked or blocked. not drained. Check the connection to the siphon and open if ne- cessary.
- Page 45 Troubleshooting en Fault Cause and troubleshooting E:92-40 will light up Filters are soiled or blocked. alternately. Clean the filters. ▶ → "Cleaning filters", Page 39 All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Remnants of food on Filters are soiled. tableware. Clean the filters. ▶ → "Cleaning filters", Page 39 Filters are inserted incorrectly and/or not engaged. Insert the filters properly. → "Filter system", Page 39 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme.
- Page 47 Troubleshooting en Fault Cause and troubleshooting Removable streaks Arrange tableware in the top basket tableware so are present on the tab collecting tray is not obstructed by table- glasses, glassware ware. with a metallic appear- → "Arrange tableware", Page 30 ance and cutlery. Items of tableware are blocking the dispenser lid.
-
Page 48: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 49: Protect Appliance From Frost
Customer Service en 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 50: Product Number (E-Nr.), Production Number (Fd) And Consecutive Numbering (Z-Nr.)
en Customer Service Customer Service for a period of at 20.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. - Page 51 Technical specifications en 21 Technical specifications Weight Max.: 60 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure ¡ min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 14 place settings You can find more information about...
