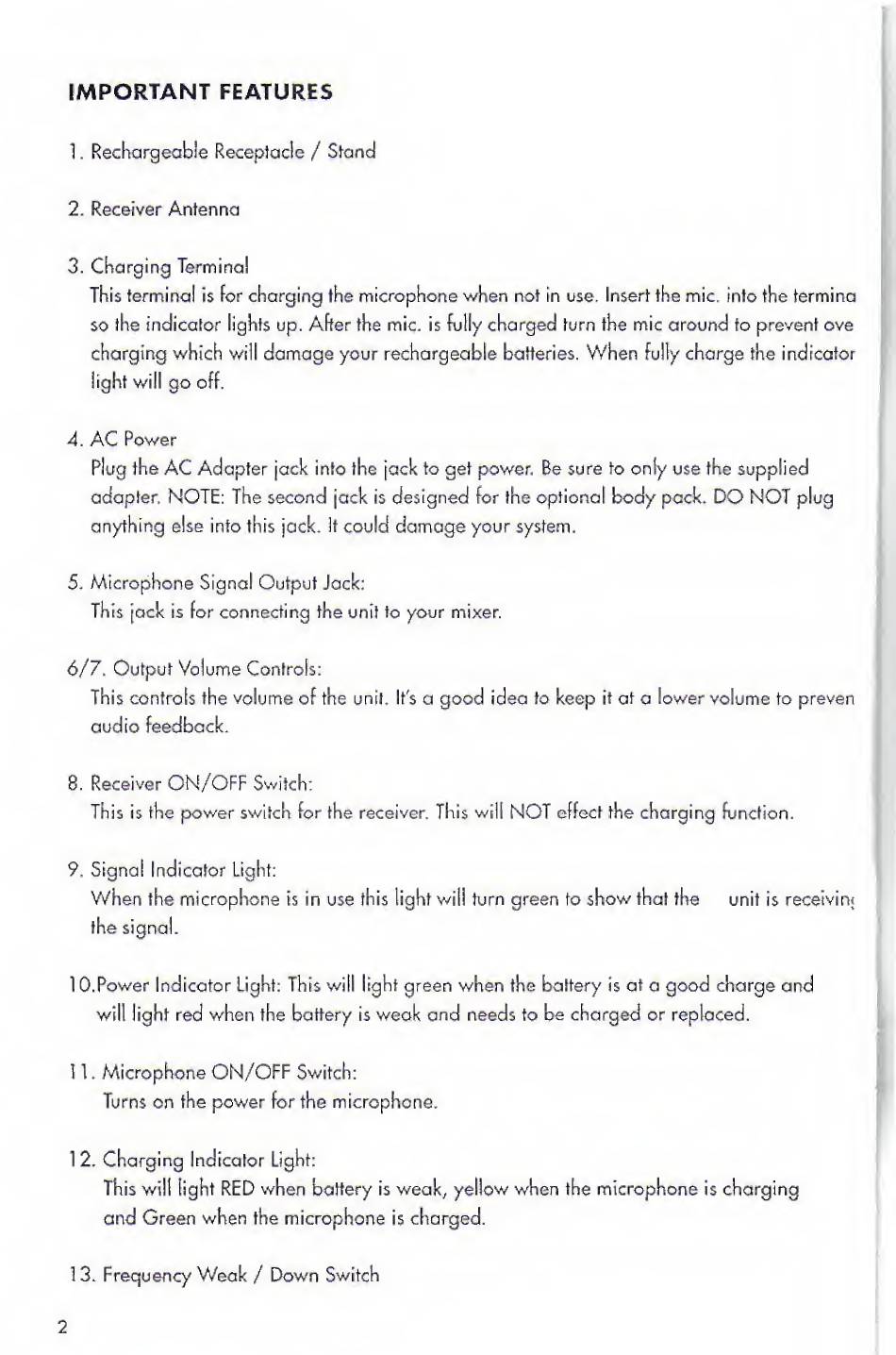

IMPORTANT FEATURES
1. Rechargeable Receptacle / Stand
2. Receiver Antenna
3. Charging Terminal
This terminal is For charging the microphone when not in use. Insert the mic. into the termina
so the indicator lights up. After the mic. is fully charged turn the mic around to prevent ove
charging which will damage your rechargeable batteries. When fully charge the indicator
light will go off.
4. AC Power
Plug the AC Adapter jack into the jack to get power. Be sure to only use the supplied
adapter. NOTE: The second jack is designed for the optional body pack. DO NOT plug
anything else into this jack. It could damage your system,
5. Microphone Signal Output Jack:
This jack is for connecting the unit to your mixer.
6/7, Output Volume Controls:
This controls the volume of the unit. It's a good idea to keep it at a lower volume to preven
audio feedback.
8. Receiver ON/OFF Switch:
This is the power switch for the receiver. This will NOT effect the charging function.
9. Signal Indicator Light:
When the microphone is in use this light will turn green to show that the
unit is receiving
the signal.
10. Power Indicator Light: This will light green when the battery is at a good charge and
will light red when the battery is weak and needs to be charged or replaced.
11 . Microphone ON/OFF Switch:
Turns on the power for the microphone.
12. Charging Indicator Light:
This will light RED when battery is weak, yellow when the microphone is charging
and Green when the microphone is charged.
13. Frequency Weak / Down Switch
2
