Stand Mounting Instructions for the RadiForce®
LS560W, LS580W, LS580W JP and LX600W
The FST5600 stand is designed for the RadiForce® 8MP large screen monitor series.
Please ensure that all monitor weight and stability requirements are met before using the
stand with other models (VESA mount 400mm x 400mm).
Order No.: 6GF69888BA01
Description: FST5600
A. Installing the FST5600 stand on

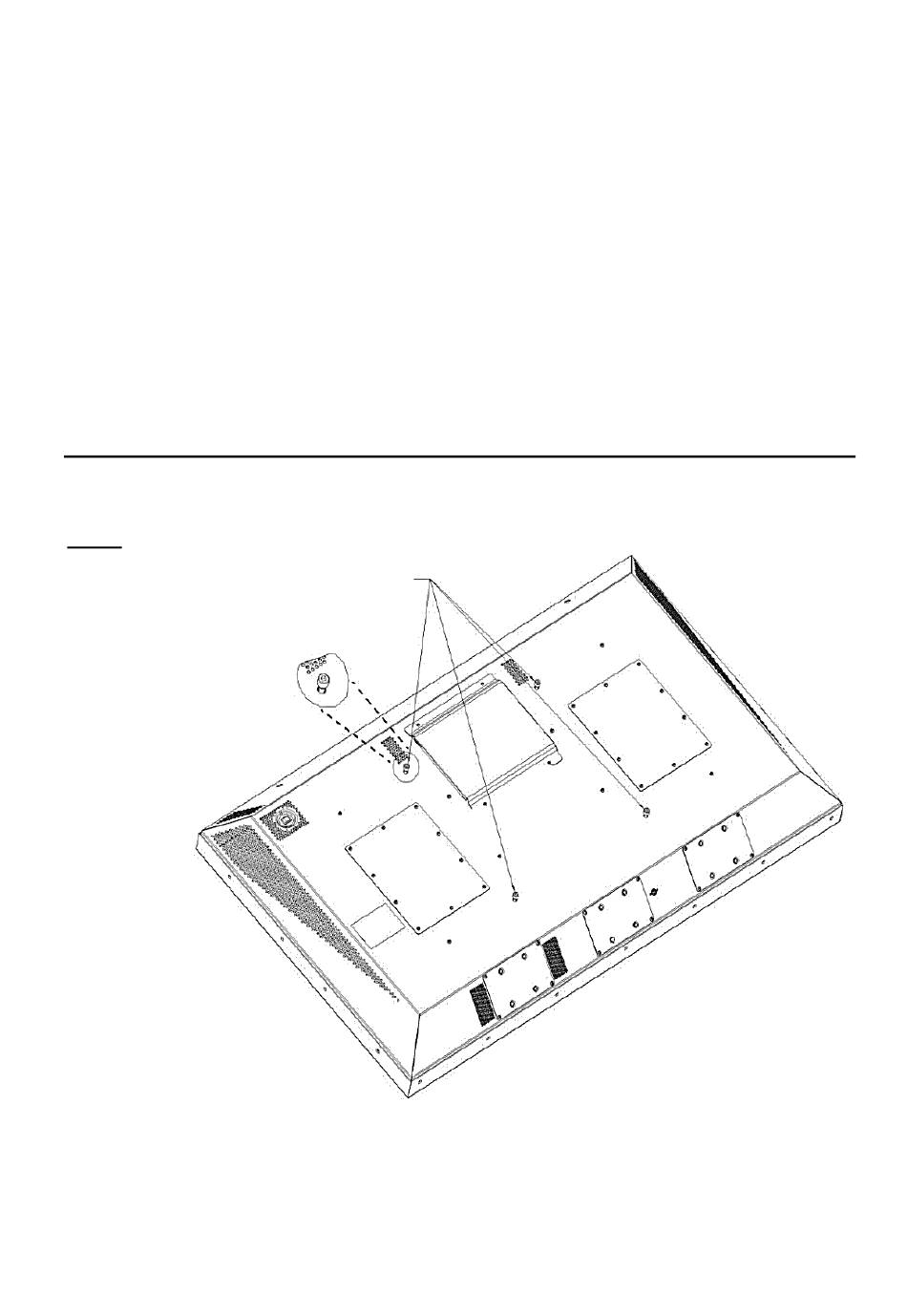

Step 1
Insert the 4 M8x20 screws approx.
5 mm deep into the designated holes at
the rear of the display.
FST5600
Instruction Manual, 02/2014, A5E10001261
LS560W
LS580W
and
monitors
Advertisement
Summary of Contents for Radiforce LS560W
- Page 1 Stand Mounting Instructions for the RadiForce® LS560W, LS580W, LS580W JP and LX600W The FST5600 stand is designed for the RadiForce® 8MP large screen monitor series. Please ensure that all monitor weight and stability requirements are met before using the stand with other models (VESA mount 400mm x 400mm).
- Page 2 Step 2 Hook the 2 stand elements into the 4 screw heads. Position the elements as shown, using the lower keyholes (see arrows). Step 3 Tighten the 4 screws with an Allen wrench (18 Nm). Step 4 Place the monitor in its final location. Caution ...
- Page 3 LX600W B. Installing the FST5600 stand on monitors Step 1 Insert the 4 M8x20 screws approx. 5 mm deep into the designated holes at the rear of the display. FST5600 Instruction Manual, 02/2014, A5E10001261...
- Page 4 Step 2 Hook the 2 stand elements into the 4 screw heads. Position the elements as shown, using the upper keyholes (see arrows) Step 3 Tighten the 4 screws with an Allen wrench (18 Nm) Step 4 Place the monitor in its final location Caution ...
