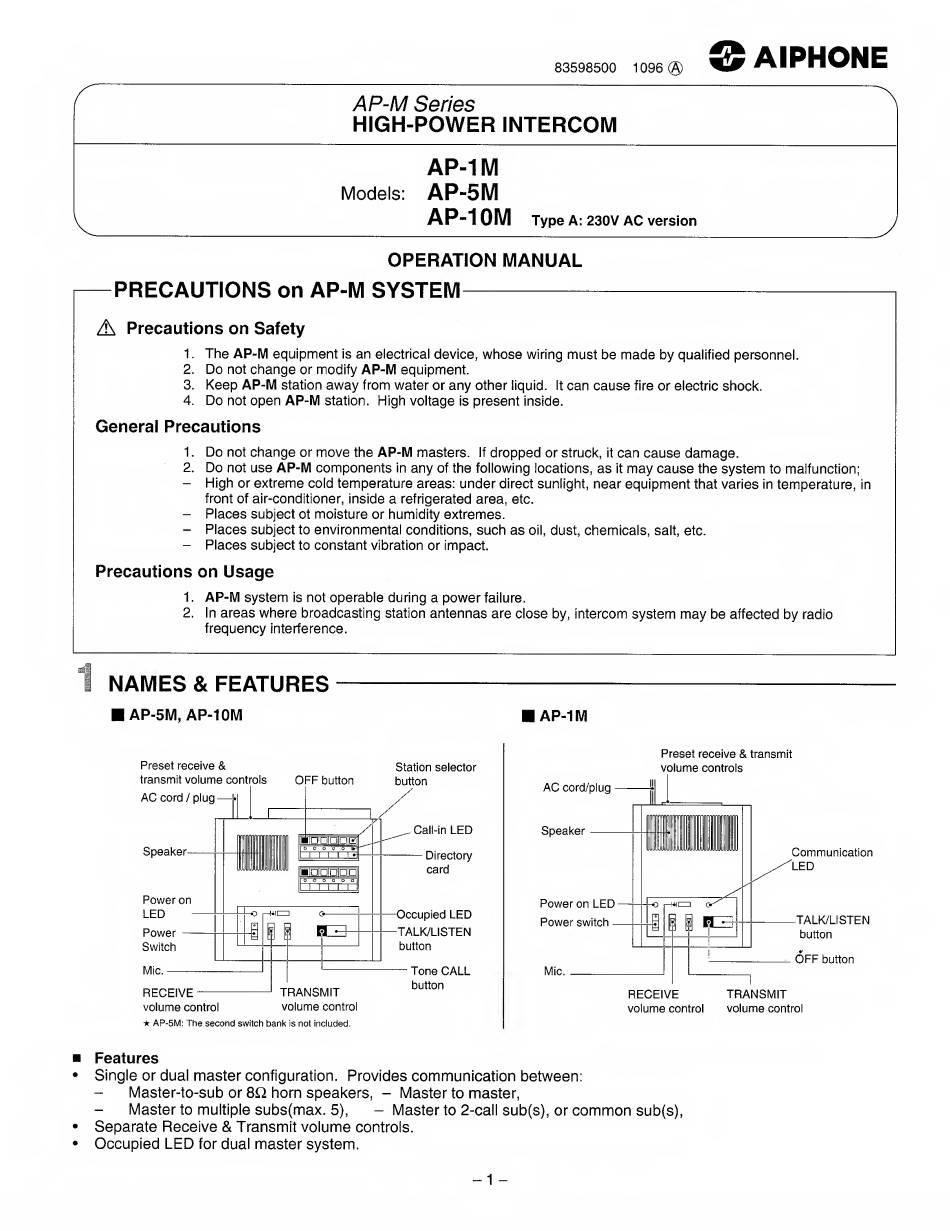

83598500
1096®
® AlPHONE
AP-M Series
HIGH-POWER INTERCOM
AP-1M
Models:
AP-5M
AP-10M
Type A: 230V AC version
OPERATION MANUAL
-PRECAUTIONS on AP-M SYSTEM-
A Precautions on Safety
1. The AP-M equipment is an eiectrical device, whose wiring must be made by qualified personnei.
2. Do not change or modify AP-M equipment.
3. Keep AP-M station away from water or any other liquid, it can cause fire or eiectric shock.
4. Do not open AP-M station. High voltage is present inside.
General Precautions
1. Do not change or move the AP-M masters. If dropped or struck, it can cause damage.
2. Do not use AP-M components in any of the following locations, as it may cause the system to malfunction;
-
High or extreme coid temperature areas: under direct suniight, near equipment that varies in temperature, in
front of air-conditioner, inside a refrigerated area, etc.
-
Places subject ot moisture or humidity extremes.
-
Places subject to environmental conditions, such as oii, dust, chemicals, salt, etc.
-
Places subject to constant vibration or impact.
Precautions on Usage
1. AP-M system is not operabie during a power faiiure.
2. in areas where broadcasting station antennas are close by, intercom system may be affected by radio
frequency interference.
1
NAMES & FEATURES-
■ AP-5M, AP-1OM
■ AP-1M
Preset receive &
transmit volume controls
AC cord / plug
OFF button
RECEIVE
TRANSMIT
volume control
volume control
★ AP-5M: The second switch bank is not included
Station selector
button
Call-in LED
Directory
card
Occupied LED
TALK/LISTEN
button
Tone CALL
button
Preset receive & transmit
volume controls
■ Features
•
Single or dual master configuration. Provides communication between:
Master-to-sub or 8Q horn speakers, - Master to master.
Master to multiple subs(max. 5),
- Master to 2-call sub(s), or common sub(s),
•
Separate Receive & Transmit volume controls.
•
Occupied LED for dual master system.
-1
-
