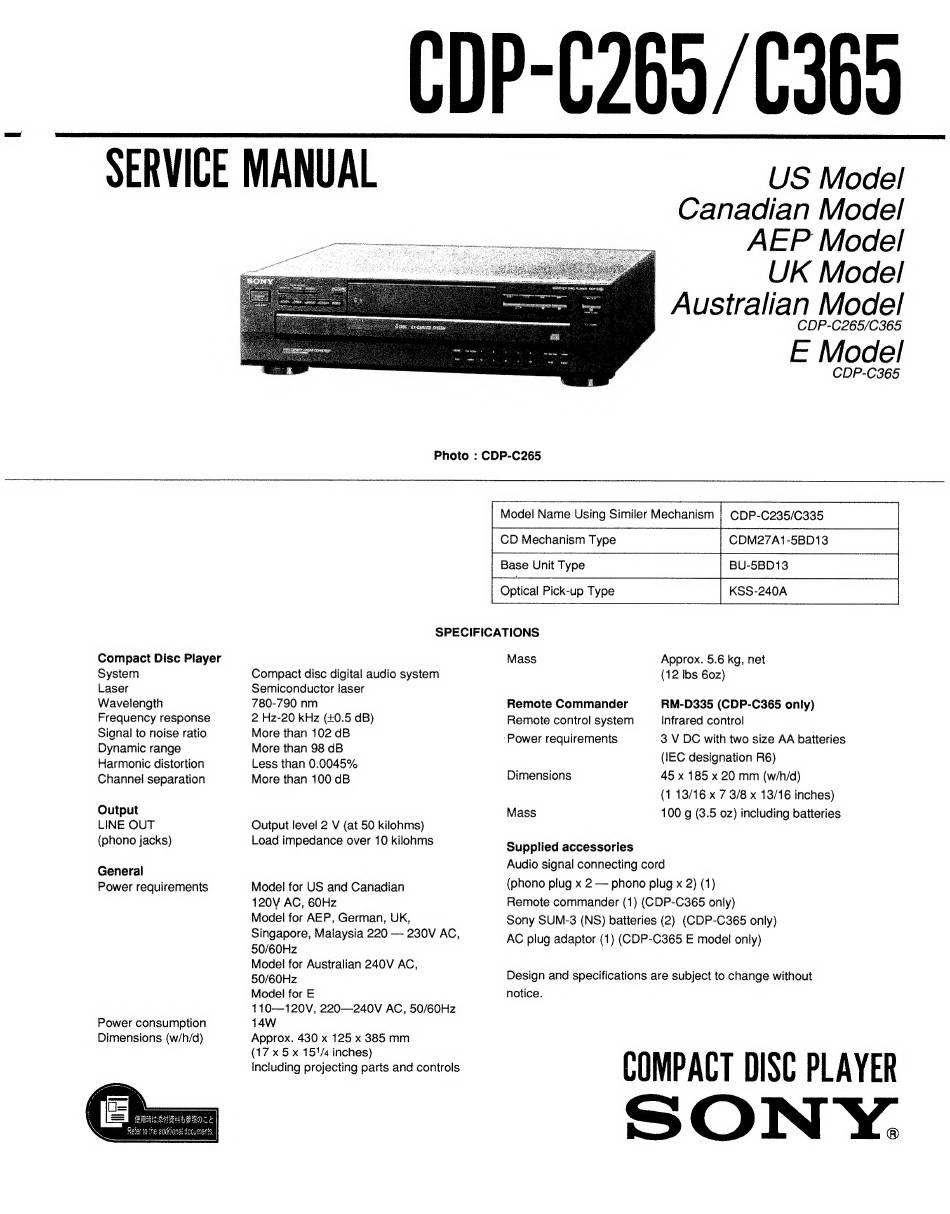

Sony CDP-C265 Service Manual

SERVICE MANUAL
Photo : CDP-C265
CDP-C265/C365
US Model
Canadian Model
AEP Model
UK Model
Australian Model
CDP-C265/C365
E Model
CDP-C365
CDP-C235/C335
CDM27A1-5BD13
BU-5BD13
Compact Disc Player
System
Laser
Wavelength
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Output
LINE OUT
(phono jacks)
General
Power requirements
Power consumption
Dimensions (w/h/d)
SPECIFICATIONS
Compact disc digital audio system
Semiconductor laser
780-790 nm
2 Hz-20 kHz (+0.5 dB)
More than 102 dB
More than 98 dB
Less than 0.0045%
More than 100 dB
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
Model for US and Canadian
120V AC, 60Hz
Model for AEP, German, UK,
Singapore, Malaysia 220 — 230V AC,
50/60Hz
Model for Australian 240V AC,
50/60Hz
Model for E
110—120V, 220—240V AC, 50/60Hz
14W
Approx. 430 x 125 x 385 mm
(17 x 5 x 151/4 inches)
Including projecting parts and controls
Mass
Remote Commander
Remote control system
'Power requirements
Dimensions
Mass
Supplied accessories
KSS-240A
Approx. 5.6 kg, net
(12 Ibs 60z)
RM-D335 (CDP-C365 only)
Infrared control
3 V DC with two size AA batteries
(IEC designation R6)
45 x 185 x 20 mm (w/h/d)
(1 13/16 x 7 3/8 x 13/16 inches)
100 g (3.5 oz) including batteries
Audio signal connecting cord
(phono plug x 2 — phono plug x 2) (1)
Remote commander (1) (CDP-C365 only)
Sony SUM-3 (NS) batteries (2) (CDP-C365 only)
AC plug adaptor (1) (CDP-C365 E model only)
Design and specifications are subject to change without
notice.
