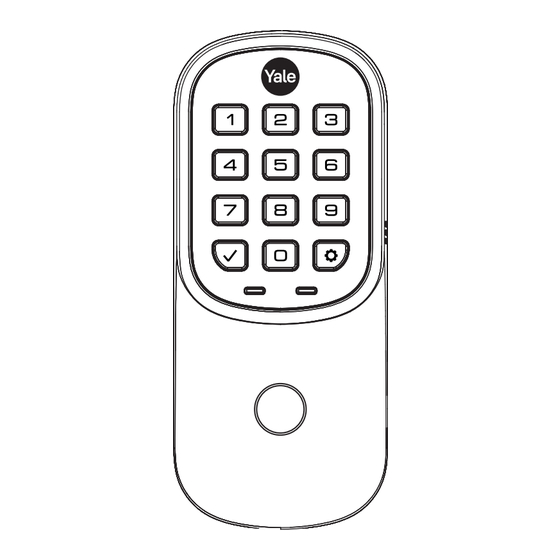

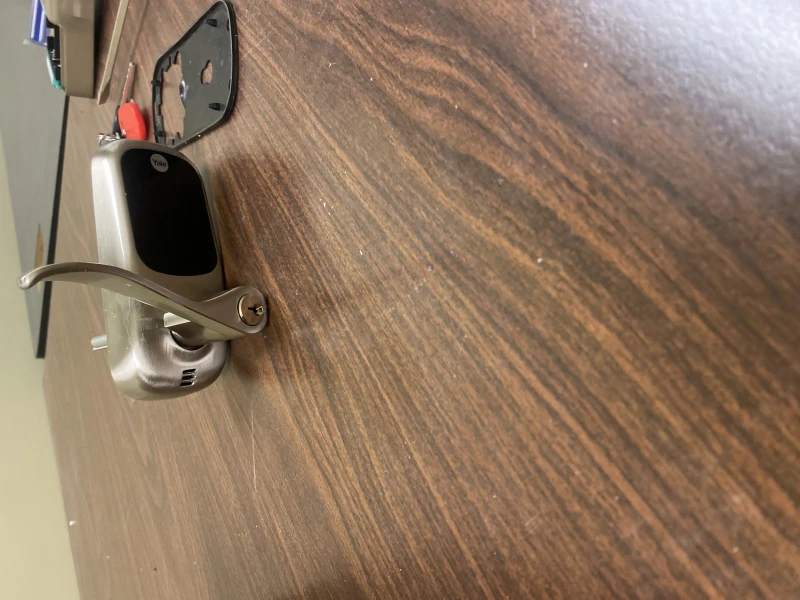

Keypad (YRL216) and Key-Free Keypad (YRL236)
This manual will walk you through all the required steps to add your new
Yale Assure Lever to your door.
• Remove existing door knob or lever
• Double check door measurements
• Install your Assure Lever
• Program your Assure Lever
• Add your Assure Lever to your smart home system or Yale Access
app if purchased with Yale Smart Module or Yale Access Upgrade kit
Tools Needed For New
Doors Or Adjusting Existing Door
Drill
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm.
Failure to follow these instructions could result in damage to the product, voiding the factory warranty and could lead to failure of the product to provide access.
Yale Assure Lever
Installation and Programming Instructions
Tools Needed
Standard
Phillips Head
Screwdriver
Wood
Tape
Utility
Pencil
Mortise
Measure
Knife
Chisel
For more information go to www.P65warnings.ca.gov.
P/N YRL-PB-MNL-0017 Rev C
®
Before you begin
DOWNLOAD
THE BILT APP
Using the app on your smart
phone, scan this QR for step-by
-step installation instructions & to
register your lock
Level
WARNING
1
Part of ASSA ABLOY
Advertisement
Troubleshooting
Related Manuals for Yale Assure Lever YRL216
Summary of Contents for Yale Assure Lever YRL216
- Page 1 • Double check door measurements • Install your Assure Lever • Program your Assure Lever • Add your Assure Lever to your smart home system or Yale Access app if purchased with Yale Smart Module or Yale Access Upgrade kit Before you begin...
-
Page 2: What's In The Box
What's In The Box Key (YRL216) Let's Get Started Yale Smart Module (not included with NR models) Installation Guide and Door Template Key-Free Cylinder Cylinder (YRL216) (YRL236) Keypad Levers Battery Cover Battery Cover AA Alkaline Mounting Plate Inside Lock Batteries Mounting Hardware #8-32 x 5/16"... - Page 3 Remove Existing Door Knob or Lever Do not discard old lock hardware until Assure Lever has been successfully installed. Frame P/N YRL-PB-MNL-0017 Rev C Part of ASSA ABLOY...
- Page 4 Check Door Measurements And Make Adjustments If Needed Door Checker Use door checker from installation guide envelope to verify your door measurements and make any needed adjustments. Check Your Door Guide Let's Get Started New Door Marking Template With the door checker, use the template from installation guide envelope to prep a new door that has not been predrilled for hardware.
- Page 5 Install Latch Strike Plate Right Hand Installation Shown AYRL-DRIVE Adjustable Drive-In Latch available for purchase Actual Size 2-3/8" through bolt posts, default PULL 2-3/4" through bolt posts, optional Note: Adjustment is based on backset Outside of Door Frame 2-3/8" (60mm) 2-3/4"...
- Page 6 Install Keypad Right Hand Installation Shown “TOP” mark must be on top surface and tailpiece in vertical position. Incorrect orientation will cause lock to fail. Outside of Right Hand Door Door face hole must be at least 2-1/8". If hole is too small, a door lock installation kit or jig should be used...
- Page 7 Install Inside Mounting Plate Right Hand Installation Shown Actual Size Inside of Right Hand Door Insert cable through cable hole Inside of Right Hand Door Make sure keypad and mounting plate are straight before tightening screws. P/N YRL-PB-MNL-0017 Rev C Part of ASSA ABLOY...
- Page 8 Attach Cable Right Hand Installation Shown Ridges along edges Make sure facing outward cable is secure Inside of Right Hand Door Use cable hook for proper cable routing. Do not pinch cable. P/N YRL-PB-MNL-0017 Rev C Part of ASSA ABLOY...
- Page 9 Install Inside Lock Right Hand Installation Shown Actual Size Hook bottom of lock into place and listen for a Tailpiece "click". Tilt lock into place until lock is flush with door. Make sure tailpiece inserts into lock as tilting into Hook position.
- Page 10 Install Cylinder (YRL216) or Key-Free Cylinder (YRL236) YRL216 Cylinder YRL236 Key-Free Cylinder Remove key from cylinder. There is no key. Outside of Right Hand Door Cylinder Tailpiece (YRL216) must slide into vertical slot Latch Cylinder must be installed with bar away from latch Tailpiece Cylinder (YRL216)
- Page 11 Install Outside Lever Outside of Right Hand Door YRL216 Cylinder Shown Press pin while installing lever so lock is not damaged. Install Inside Lever Inside of Right Hand Door Press pin while installing lever so lock is not damaged. P/N YRL-PB-MNL-0017 Rev C Part of ASSA ABLOY...
- Page 12 Test Thumbturn Operation with Door Open Outside of Right Hand Door Outside of Right Hand Door Test thumbturn and both levers in locked and unlocked positions. If operation fails, check installation beginning with Step 4 and refer to Hardware Troubleshooting. P/N YRL-PB-MNL-0017 Rev C Part of ASSA ABLOY...
- Page 13 Test Key Operation with Door Open (YRL216) Outside of Right Hand Door Outside of Right Hand Door If key operation test fails, check installation beginning with Step 8. P/N YRL-PB-MNL-0017 Rev C Part of ASSA ABLOY...
- Page 14 Yale Smart module. NOTE: If a Smart module was included with your lock, it is in a separate box with additional module installation instructions. For more information about Yale Smart modules and smart home features visit: US.YaleHome.com/Smart P/N YRL-PB-MNL-0017 Rev C...
- Page 15 Install Batteries and Cover Inside of Right Hand Door Congratulations, you've installed the Yale Assure Lever ® Keypad ( YRL216 ) or Key-Free Keypad (YRL236)! Using Your Lock instructions will help you customize your lock. P/N YRL-PB-MNL-0017 Rev C Part of ASSA ABLOY...
- Page 16 Test Keypad Operation with Door Open A Master Entry Code must be created upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. See Using Your Lock instructions. Enter 4-8 digit Master Entry Code Press If keypad operation test fails, check installation beginning with Step 3...
- Page 17 Resetting Lock to Factory Defaults Inside Lock Reset Button When resetting the lock, all Entry Codes, including the Master Entry Code*, are deleted. All programming features are reset to original default settings. See “Setting Definitions”. 1. Remove the battery cover and batteries. 2.
-
Page 18: Hardware Troubleshooting
Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Tailpiece and spindle will not mate and fit into the inside lock a. Make sure that your door is between 1-3/8" and 1-3/4" thick b. Make sure that the square shaped spindle has “Top” writing and arrow facing upwards c. -
Page 19: Setting Definitions
Setting Definitions Settings Default Setting Definition The Master Entry Code is used for programming and feature settings. It must be created prior to Creation Master Entry Code required* programming the lock. The Master Entry Code will also operate (unlock/lock) the lock. This feature is enabled by the Master Entry Code. - Page 20 (9-Volt battery jumper, low battery warnings), it is still possible for a lockout situation to occur. Because the YRL236 does not have a key, Yale® recommends using YRL236 in an environment where there are additional entry points into dwelling. P/N YRL-PB-MNL-0017 Rev C...
- Page 21 Creating Master Entry Code The Master Entry Code is used to change lock settings. A security best practice is to set your Master Entry Code with 6 or more digits and create a separate code that is used daily to lock and unlock the door. Press Press Press...
- Page 22 Creating Entry Codes Master Entry Code must be created first. *Max Entry Codes = 250 with Smart Module; 25 without. Enter Master Entry Code Press Press Press Enter 4-8 digit Entry Code Press Press Press (code flashes) Adding more Entry Codes: To end programming: Press Press...
- Page 23 Deleting Entry Codes Enter Master Entry Code Press Press Press Press Press Deleting one Entry Code: To delete all Entry Codes To delete one Entry Code, (Does not delete you must enter the Entry Master Entry Code): Code you wish to delete. Enter 4-8 digit Entry Code Enter Press...
-
Page 24: Code Chart
Unlocking Door with Entry Codes Enter Entry Code Press Code Chart Duplicate if necessary Entry Code Management Entry Code Homeowner Master: User Name: Babysitter P/N YRL-PB-MNL-0017 Rev C Part of ASSA ABLOY... - Page 25 Here is an example of how to set Auto Lock to 30 seconds: Master Entry Code *The Master Entry Code must be created prior to any other programming of the lock. **Network Module Setting function appears only with Yale Smart module installed. P/N YRL-PB-MNL-0017 Rev C Part of ASSA ABLOY...
-
