Vulcan-Hart MHB24G Specifications

SPECIFICATIONS:
Gas heated modular boiler, Vulcan-Hart Model No. MHB24.
Cabinet with stainless steel frame, front full height doors,
slip-off stainless steel side and aluminized rear panel with 6"
adjustable legs with flanged feet for anchoring. 270,000 BTU/hr.
high efficiency steam boiler with electronic ignition builds
5.5 BHP. Includes CSD-1 compliant high pressure limit switch
(15 psi), low water cut-off, automatic water fill, automatic
generator blowdown, 15 psi pressure relief valve and 15 psi
kettle connection. Stainless steel cover flue. Service connec-
tions include 1" gas connection with gas pressure regulator,
1 / " cold water connection for boiler feed and
2
condenser, 120 volt control circuit and 1
Exterior dimensions: 24"w x 35.4"d x 41.5"h.
CSA design certified. Classified by U L to NSF Std. #4.
Meets ASME code.
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32423 (8-04)
1 / " cold water
8
1 / " drain connection.
4
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________

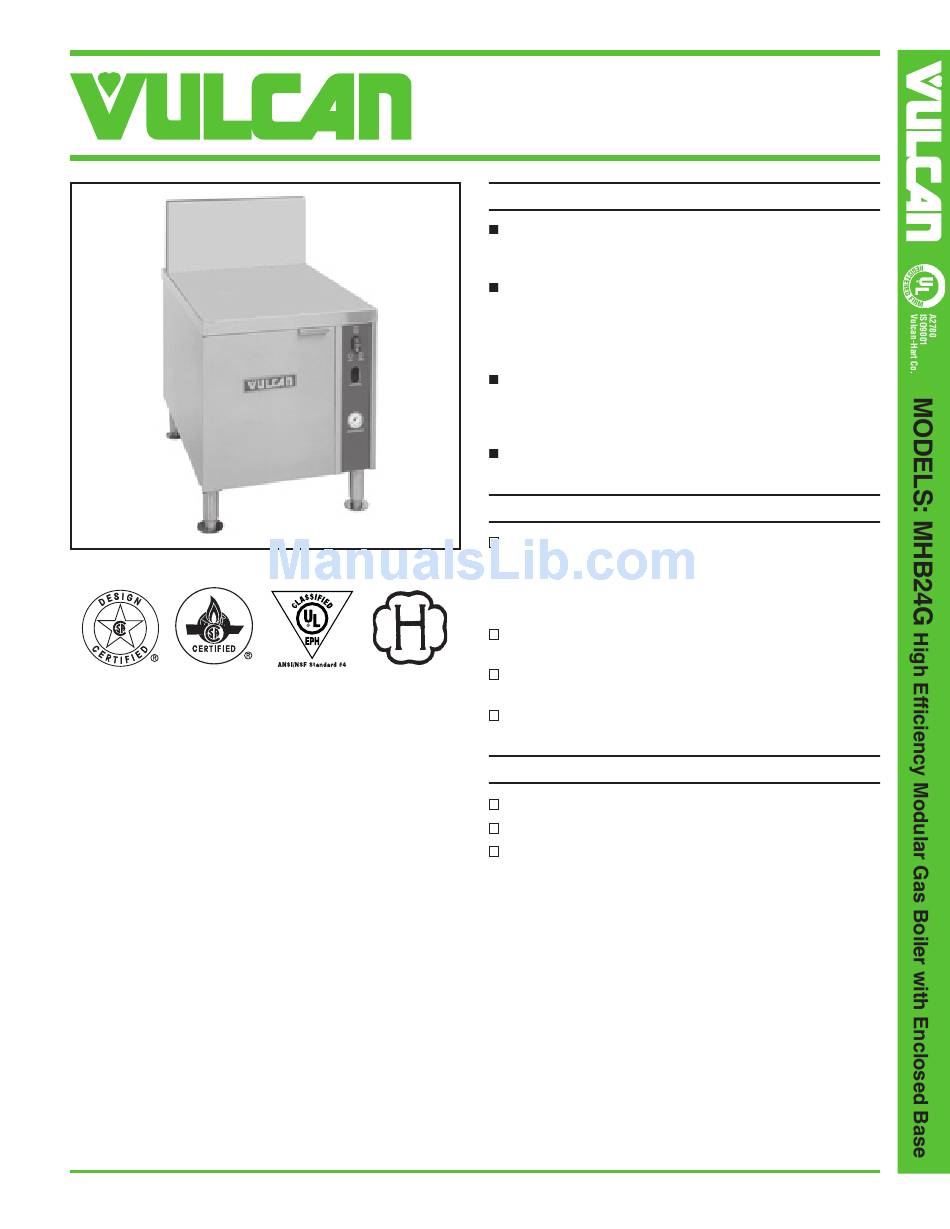

MODEL MHB24G
HIGH EFFICIENCY MODULAR GAS BOILER
WITH ENCLOSED BASE
STANDARD FEATURES
Cabinet with stainless steel frame, front full height doors,
slip-off stainless steel side and aluminized rear panel with 6"
adjustable legs with flanged feet for anchoring.
270,000 BTU/hr. high efficiency steam boiler with electronic
ignition builds 5.5 BHP. Includes CSD-1 compliant high pres-
sure limit switch (15 psi), low water cut-off, automatic water fill,
automatic generator blowdown, 15 psi pressure relief valve
and 15 psi kettle connection.
Service connections include 1" gas connection with gas
1
pressure regulator, /
2
1
and / " cold water condenser, 120 volt control circuit and
8
1 1 / " drain connection. (See detail on back page.)
4
One year limited parts and labor warranty.
OPTIONS
Correction facility package:
- Cabinet door with hasp (lock by others).
- Control cover (lock by others).
- Tamper resistant fasteners.
- Flue riser cover.
Step down transformer for control circuit if higher than 120
volts.
Mount and interconnect boiler base with kettle at factory.
Includes steam supply piping. Shipped on one skid.
Second year extended limited parts and labor warranty.
ACCESSORIES
Stainless steel back panel.
Interconnecting steam supply plumbing kit.
Water treatment system.
C.S.I. Section 11420
" cold water connection for boiler feed
