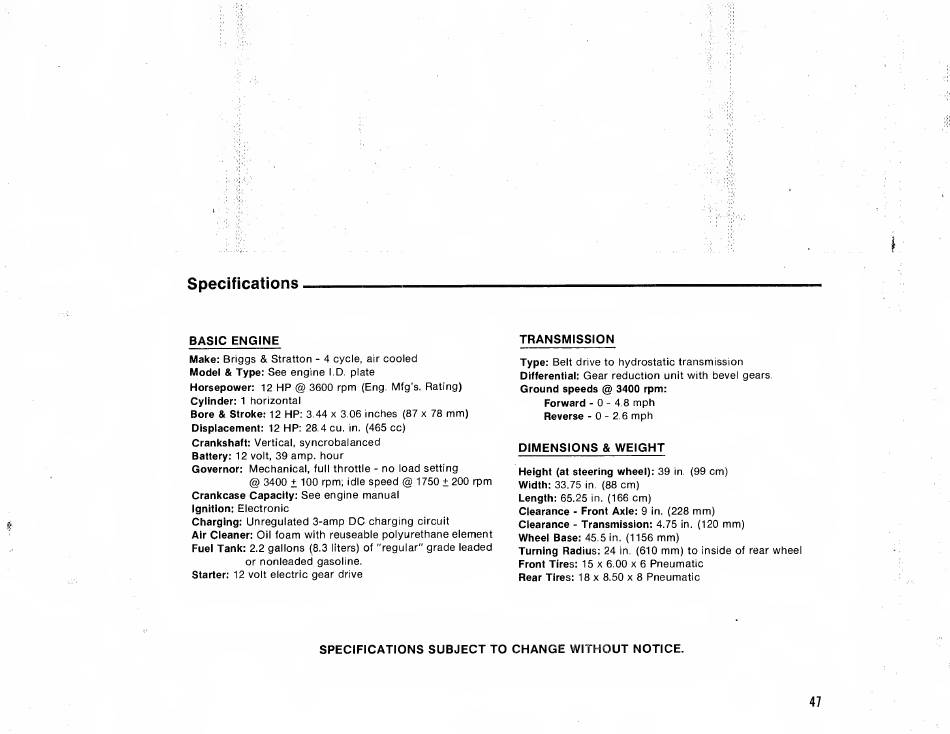

Specifications
BASIC ENGINE
Make: Briggs & Stratton - 4 cycle, air cooled
Model & Type: See engine I.D. plate
Horsepower: 12 HP @ 3600 rpm (Eng. Mfg's. Rating)
Cylinder: 1 horizontal
Bore & Stroke; 12 HP: 3.44 x 3.06 inches (87 x 78 mm)
Displacement: 12 HP: 28.4 cu. in. (465 cc)
Crankshaft: Vertical, syncrobalanced
Battery: 12 volt, 39 amp. hour
Governor: Mechanical, full throttle - no load setting
@ 3400 + 100 rpm; idle speed @ 1750 + 200 rpm
Crankcase Capacity: See engine manual
Ignition: Electronic
Charging: Unregulated 3-amp DC charging circuit
Air Cleaner: Oil foam with reuseable polyurethane element
Fuel Tank: 2.2 gallons (8.3 liters) of "regular" grade leaded
or nonleaded gasoline.
Starter: 12 volt electric gear drive
TRANSMISSION
Type: Belt drive to hydrostatic transmission
Differential: Gear reduction unit with bevel gears.
Ground speeds @ 3400 rpm:
Forward - 0 - 4.8 mph
Reverse - 0 - 2.6 mph
DIMENSIONS & WEIGHT
Height (at steering wheel): 39 in. (99 cm)
Width: 33.75 in. (88 cm)
Length: 65.25 in. (166 cm)
Clearance - Front Axle: 9 in. (228 mm)
Clearance - Transmission: 4.75 in. (120 mm)
Wheel Base: 45.5 in. (1156 mm)
Turning Radius: 24 in. (610 mm) to inside of rear wheel
Front Tires: 15 x 6.00 x 6 Pneumatic
Rear Tires: 18 x 8.50 x 8 Pneumatic
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
47
