SERVICE/INSTALL MANUAL
IMPORTANT INFORMATION,
KEEP FOR OPERATOR
USA & Canada, 866-339-8515
4003 Collins Lane, Louisville, KY 40245
www.kelvinatorcommercial.com
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the consignee
to inspect the container upon receipt of same and to determine the possibility
of any damage, including concealed damage. Electrolux Professional, Inc.
suggests that if you are suspicious of damage to make a notation on the
delivery receipt. It will be the responsibility of the consignee to file a claim with
the carrier. We recommend that you do so at once.
Manufacture Service/Questions 866-339-8515.
EQUIPMENT DESCRIPTION
MODEL NO. V/HZ/PH
KCHBC36 115/60/1
KCHBC50 115/60/1
KCHBC65 115/60/1
KCHBC95 115/60/1
INSTALLATION
Make sure that the cooler is not damaged on arrival. Your supplier must be notified
of any transport damage, within 24 hours of delivery.
The cooler should be placed in a warm, dry room, with suitable ventilation.
Place the cooler in such a way, as to allow the free circulation of air around it. That
is, with at least 100mm space all around it.
Never place the cooler in strong sunlight. The cooler be placed on a level surface.
Make sure that it does not rock.
If the cooler has been stored or transported cold, it must not be started before
the compressor is judged to have reached a temperature at least 41°F. It is
recommended to clean up the cooler before starting it.
Information contained in this document is known to be current and accurate at the time of printing/creation. Reference our product line website for the most updated product information and
specifications. © 2023 Electrolux Professional, Inc. All Rights Reserved.

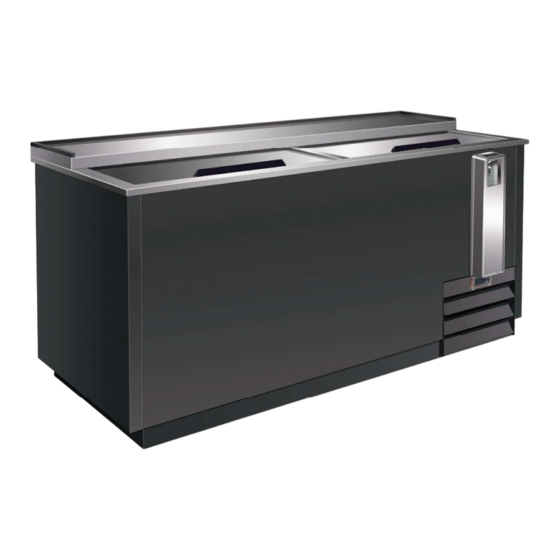

BOTTLE COOLER BOTTLE COOLER BOTTLE COOLER BOTTLE COOLER
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately.
CAPACITY
AMPS
STORAGE (CU FT)
1.8 10
3.0 15
3.0 20
3.3 26
PART NUMBER HB_738371_9F73837100, REV. A (03/23)
This manual provides information for:
BOTTLE COOLER
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Note these instructions apply to all coolers. Installations of equipment may not
exactly correspond to your model.
NOTICE: Due to a continuous program of product improvement, Electrolux
Professional, Inc. reserves the right to make changes in design and specifications
without prior notice. NOTICE: Please read the entire manual carefully before
installation. If certain recommended procedures are not followed, warranty claims
will be denied.
HP BTU CHARGE OZ
3/8 2000 2.12
1/2 3200 2.47
1/2 5400 3.17
1/2 7600 3.53
ELECTRICAL CONNECTION
The cooler must be connected to a socket with the correct voltage/frequency, as
show on the nameplate. The standard for u.s is 115V/50HZ. Voltage variations
of ±10% are acceptable. Greater variations can damage the cooler, and in such
cases the factory warranty is not valid. In the case of extreme voltage variation,
above or below the standard, your local supplier will be able to advise you, what
to do.
The cooler requires extra protection according to the Danish Heavy Current
Regulations.
This also applies, if a new cooler is replaced, which did not have such protection.
The purpose of extra protection, is to protect the user from dangerous electric
shocks, in the case of defect.
REV. B (11/23)
SHIP WEIGHT LBS NEMA PLUG
161 5-15P
310 5-15P
353 5-15P
439 5-15P
