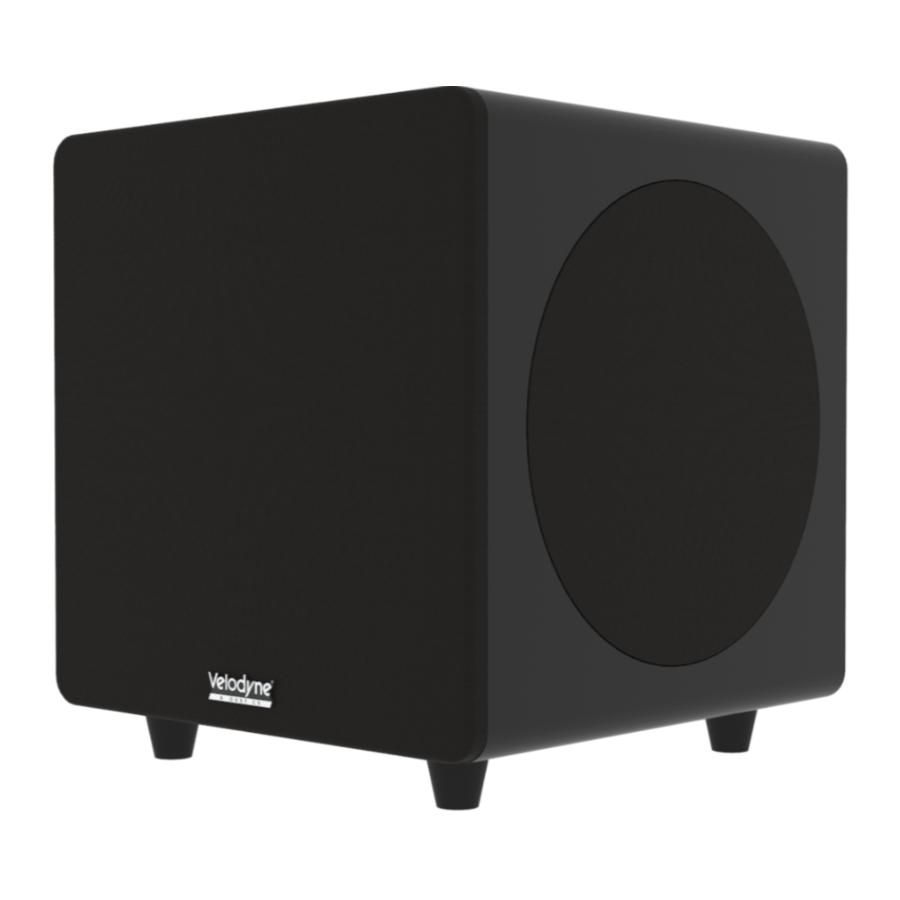

Velodyne Deep Waves Series Subwoofer Manual

What's in the box

1x Deep Waves Subwoofer
1x Driver cover
1x Power cable
1x Quick Start Guide

• After purchase, please check if the delivered subwoofer is complete and undamaged. If the unit is damaged, do not use the item and contact our service department.
• Please keep the original packaging (including foam inlays) during the warranty period.

Prior to Installation

Be sure to unpack the system carefully to avoid damage. This unit is heavy so use caution when lifting or moving to avoid injury. Save the carton and all packaging materials for future use. Packing this unit in any other carton may result in severe damage when shipping. Be sure to record the serial number for future reference.

Prepare for Installation

Velodyne Acoustics Deep Waves subwoofer provides for a number of installation options. We suggest reviewing all the installation information below in order to determine which installation option is best for your system. Remember to perform all installation procedures with system power turned off to prevent possible damage.

Placement

The first step in installing your new Deep Waves subwoofer is to determine where it will be placed in the room. You can use the following guidelines in order to find the best room placement to maximize your listening enjoyment.

True subwoofers operate at extremely low frequencies, which are primarily omni-directional. Keep in mind that frequency response and output level can be drastically influenced by placement and the acoustic properties of the listening room. When using a pair of Velodyne Acoustics subwoofers in 2- channel stereo, it is preferable to feed each subwoofer with one channel and place each subwoofer near the satellite of the same channel.

The perfect placement for your subwoofer will depend on room size, furnishings, and other unique variables in your listening space. Finding the best location for your subwoofer will likely require some experimentation. We suggest you use your favorite spot for listening to music or watching movies while experimenting with the location of the subwoofer during setup. This will allow you to find what sounds best to you when seated in your typical listening position. Regardless of where you install your Velodyne Acoustics subwoofer, it must remain in an upright position. Placing, shipping, or storing your subwoofer in any other position for an extended period of time may result in damage to the unit. This type of damage is not covered under warranty.

This subwoofer has electronics built into the cabinet. Because of this, your subwoofer should not be placed next to sources of heat such as furnace registers, radiators, etc. Do not place the unit near sources of excessive moisture, such as evaporative coolers, humidifiers, etc. The power cord should be routed in such a way that it will not be walked on, pinched or compressed in any way that could result in damaging the insulation or wire.

Velodyne Acoustics Deep Wavessubwoofers are NOT magnetically shielded. Should you find it necessary to use it with an older CRT monitor or TV, keep it at least two feet from the monitor. Experiment for correct distance by minimizing distortion of the picture and colors.

REAR PANEL CONNECTION

1. SPEAKER LEVEL INPUT TERMINALS - Connect these input jacks to the speaker output jacks on your amplifier or receiver.
2. LINE / LFE INPUT RCA JACKS - Connect these jacks to the LINE OUT jacks of your amplifier.
3. LINE / LFE OUTPUT RCA JACKS - Connect these jacks to the LFE IN jacks of an additional subwoofer to achieve linking.
4. VOLUME LEVEL CONTROL - Use this control to adjust the output power of the subwoofer.
5. LOW-PASS CROSSOVER - Use this control to select the high frequency range at which you want to cut the signal to the subwoofer.
6. PHASE CONTROL - Adjust the position where you hear a louder sound in the mid-bass range
7. DSP ON - Use this switch to activate the iWoofer app.
8. AUTO POWER SWITCH - OFF: Unit is in standby mode / Auo: Unit is in operation mode / ON: Unit is on.
   If there is no signal for 8 minutes, the subwoofer automatically switches to standby mode.
9. POWER INDICATOR - Red: Unit is in standby mode. Blue: Unit is in operation mode. If there is no signal for 8 minutes, the subwoofer automatically switches to standby mode.
10. POWER CONNECTION, FUSE TYPE - T8AL 25V for AC120V~60Hz, T4AL 250V for AC230V~50Hz.
11. POWER ON/OFF SWITCH - Turns the subwoofer on or off.
12. INPUT VOLTAGE SELECTOR - Choose between 230V and 120V.
13. 5V USB POWER OUTPUT - Can be used to power the optional WI Connect System II wireless transceiver.

DISCONNECT POWER CORD BEFORE CHANGING FUSE.

STEREO CONNECTION

DISCONNECT POWER CORD BEFORE CHANGING FUSE.

LFE CONNECTION

The LFE channel (Low-Frequency Effects) is used in various multi-channel systems such as 5.1, 7.1 or even 3D audio to transmit low tones that cannot be accurately located by the human ear. In most cases, this channel is designed for the limited frequency range of something 20 - 100 Hertz, which also allows for a data-saving transmission. On the AV receiver, it is usually labeled „SW" for subwoofer, „Sub Out" or, as on the Deep Waves subwoofers, „LFE". If the crossover of the AV receiver is then used, the subwoofer should be set to „Subwoofer Direct."

DISCONNECT POWER CORD BEFORE CHANGING FUSE.

HIGH LEVEL CONNECTION

Older stereo amplifiers and even some current models do not have an LFE jack or a line connector for RCA plugs. But even these audio devices can be easily connected to a Velodyne Acoustics woofer via speaker terminals. The front speakers of the system are wired in parallel with the amplifier and the subwoofer. With this type of connection, the subwoofer's crossover removes all high and mid frequencies and only bass is reproduced. It is important that „Subwoofer Direct" is not used with this setting. Also, both channels should be connected because they may contain different bass information that would otherwise be lost during playback.

DISCONNECT POWER CORD BEFORE CHANGING FUSE.

INTERCONNECT CABES

During installation of your Velodyne Acoustics Deep Waves subwoofer using the line level connections, you should always use shielded RCA cables. There are many high quality cables available today. It is recommended that you keep the length of cable as short as possible to avoid any potential noise problems.

When using speaker level connections, use a high quality speaker cable that mates well with the connectors. Be careful to avoid any loose strands or frayed wires that may result in a short, which could damage your equipment. Be aware that cables of extremely large size are not required due to the low current draw of this type of connection. Please note that extremely large gauge wire may not properly fit in the terminals, resulting in a poor connection and possible short circuits.

CARE OF YOUR PRODUCT

In regards to care of your Velodyne Acoustics subwoofer, normal dusting or cleaning of the surface for appearance purposes is all that is required. We suggest you avoid any harsh detergents or chemicals when cleaning the cabinet. The finish on the cabinet may become damaged with the use of abrasives, detergents, or cleaning solutions. We highly recommend using only a damp cloth to clean the cabinet.
Under normal conditions, your subwoofer may be left on continuously without any problems. The unit is equipped with a signal-sensing on/off circuit that will automatically turn on the unit when a signal is present at the inputs and turn off the unit after several minutes when there is no longer any signal at the inputs.

PROTECTION CIRCUITRY

Your Velodyne Acoustics subwoofer is equipped with circuitry to provide maximum performance with greatest reliability.

The unit is protected against:

1. Overheating the amplifier.
2. Excessive drop in power line voltage.

If either of the above should happen, you should reduce the volume setting or shut the unit off until normal operating conditions return. You may also want to plug the unit into a different wall outlet, as dropping power line voltage will be most noticeable under strenuous conditions and may result in the unit shutting down intermittently.

TROUBLESHOOTING AND SERVICE

Please re-check all systems and verify your connections and settings before contacting an authorized service center. Following is a simple troubleshooting guide to assist you.

Verify that the unit is plugged in and power outlet used is active.

1. Is the power switch on?
2. Is the unit receiving an input signal from your source?
3. Have all controls (volume, crossover, phase, etc.) been properly set?
4. If the unit has been running at high levels, one of the protection circuits may be engaged.
   Has the amplifier overheated?
5. Make sure the speaker wires are fully inserted into the spring clip connectors and that no wires are touching from one terminal to another.

If the protection circuitry is active, the unit may cycle on and off until operating parameters return to normal. Under more serious conditions, the unit may shut off completely. Upon cooling, normal operation should return. However, you may be required to turn the power off and then on again to reset the unit before it will operate normally again.

The following conditions require service by a qualified technician:

1. The power cord has become damaged or appears damaged.
2. The unit does not appear to operate normally or exhibits a marked change in performance.
3. The unit has been exposed to water.
4. Some part of the cabinet or circuitry is physically damaged.

SERVICE

What is the crossover frequency and how is it set?
The crossover frequency, also called crossover frequency, is set to a specific frequency depending on the speaker system. Often 80 hertz is recommended to start, allowing the subwoofer to reproduce frequencies below this level while filtering out higher frequencies. Most subwoofer crossovers are user-adjustable (e.g., from 50 Hz to 180 Hz on the Deep Waves 10), so you can find an exact match for your system at home. The goal of the setting is a seamless transition between the main speakers and the subwoofer, which means that bass can no longer be located in the room at best. If you can hear exactly that the bass is coming from the direction of the subwoofer when listening to music or watching movies, the setting needs to be adjusted. If the main speakers of the system are full-grown 3-way floor-standing speakers with large woofers, it is also worth trying out a frequency of 60 Hertz. If, on the other hand, they are small satellites or bookshelf speakers, a setting of 100 Hertz and more may make sense. At this point, it is important to experiment a lot with familiar music and film clips - because only repeated listening will lead to a perfect result.

Modern AV receivers and preamplifiers also have integrated crossovers. This is usually less common with stereo receivers. If a receiver is used in the living room or home theater, it is advisable to use its crossover and deactivate the crossover of the subwoofer. If both crossovers are used at the same time, distortion can occur. For this reason, many Velodyne Acoustics subwoofers have a bypass switch, usually labeled „Direct," „Subwoofer Direct," or „Subwoofer Bypass." This switch disables the internal crossover and the AV receiver passes the processed signal directly.

How do you set the phase on the subwoofer correctly?
A phase control allows the phase to be adjusted continuously within a range of 0 degrees to 180 degrees. It is helpful when the subwoofer and the floorstanding loudspeaker are not positioned at the same distance from the listening position. This is because the reproduction of low tones from the subwoofer and the main speakers can cause cancellation in the bass range because the waves neutralize each other. With the phase control it is thus possible to align the sound waves from different sources. This setting is best made by ear from the later reference position.

IWOOFER-APP QUICK START

Note
All screenshots shown are from the iOS version of the app. The apperance and features of the Android version of the app may differ!

1. Navigate to the App Store of your smart device and search for and install the app „iWoofer" or „iWoofer Pro" by Artern Khlyupin.
2. As long as your Deep Waves subwoofer is powered and your smart device's Bluetooth is turned on, you will see a seemingly random string of letters and numbers when you open the app, which is best renamed in the app's options menu. Select this device. lf you have multiple Deep Waves subwoofers, they will all show up here.


troubleshooting: lf the subwoofer is not receiving an input signal, it will go into standby mode after a while and will not show up on this screen. lf this is the case for you, either unplug the subwoofer and plug it back in, or input an input signal to bring it out of standby. lf this doesn't work, make sure no other smart device is connected to the subwoofer via the iWoofer-App. Otherwise, try using a different smartphone or tablet.

3. After connecting to the Deep Waves subwoofer hardware, you should see the app harne screen as below (room correction is not available if you are not using the Pro-App).


The iWoofer-app has a rename function in the options menu that allows you to replace the device name and UDID number. This is very helpful when controlling multiple subwoofers at the same time with the same app.

Link to App Store & Google Play Store

iOS

iOS Pro

Android

SPECIFICATIONS

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the subwoofer.

1. Read Instructions - All safety and operating instructions should be read before the product is operated.
2. Retain Instructions — The safety and operating instructions should be retained for future reference.
3. Heed Warnings — All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions — All operating and use instructions should be followed.
5. Water and Moisture — The product should not be used near water — for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or the like.
6. Carts and Stands — The product should be used only with a cart or stand recommended by the manufacturer.
7. Wall or Ceiling Mounting — The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
8. Ventilation — The product should be situated so that its location or position does not interfere with its proper ventilation. For example, the product should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or placed in a built-in installation such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
9. Power — The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
10. Temperature — The equipment shall be used at maximum 35 degree C ambient temperature.
11. Earth — This equipment must be supplied from a power system providing a PROTECTIVE EARTH Connection and having a neutral connection, which can be reliable identified.
12. Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products that produce heat.
13. Power Sources — The product should be connected to a power supply only of the type described in the operating instructions or as marked on the product.
14. Grounding or Polarization — This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
15. Power-Cord Protection — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point at which they exit from the product.
16. Cleaning — The product should be cleaned only as recommended by the manufacturer.
17. Nonuse Periods — The power cord of the product should be unplugged from the outlet when left unused for a long period of time.
18. Object and Liquid Entry — Care should be taken so that objects do not fall and liquids are not spilled onto the enclosure.
19. Damage Requiring Service — The product should be serviced by qualified service personnel when:
    1. The power-supply cord or plug has been damaged.
    2. Objects have fallen or liquid has been spilled into the product.
    3. The product has been exposed to rain.
    4. The product does not appear to operate normally or exhibits a marked change in performance.
    5. The product has been dropped or damaged.
20. Servicing — The user should not attempt to service the product beyond what is described in the operating instructions. All other servicing should be referred to qualified service personnel. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as a power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the appara tus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
21. Lightning — For added protection for the product during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet.
22.
    Overloading — Do not overload wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or electric shock.
23. Attachments — Only use attachments and accessories specified by the manufacturer.
24. Voltage — Insure that the subwoofer is only connected to the rated source voltage. Do not connect the 120-volt version to 220.Volts or vice-versa. This will result in damage to the subwoofer and possible injury to the user.

To prevent electrical shock, match wide blade of plug to wide slot, fully inserted.

Please observe the following instructions to insure safe and proper system operation.

Note: Do not leave unit in direct sunlight or use in high humidity environments!

To prevent fire or shock hazard, do not expose this equipment to rain or moisture. To avoid electrical shock, do not open speaker enclosure or amp chassis cover. Please observe all warnings on the equipment itself. There are no user serviceable parts inside. Please refer all service questions to your authorized Velodyne dealer or distributor.
