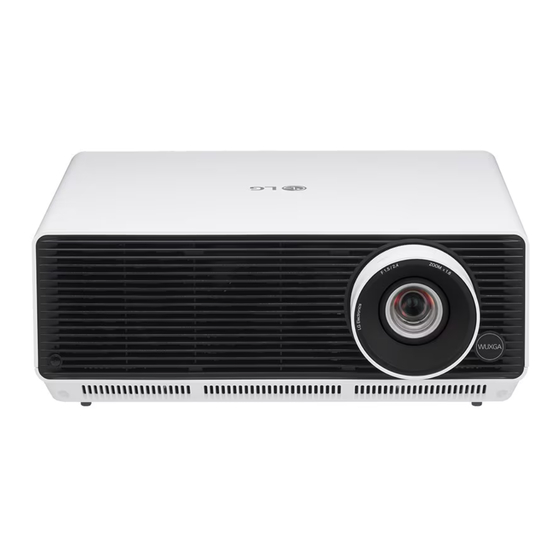

- Page 1 OWNER'S MANUAL DLP Projector Please read the safety information carefully before using this product. BF50RG (BF50RG-GL) BF60RG (BF60RG-GL) DBF510RG (DBF510RG-GL) www.lg.com P/NO : SAC38519036 (2311-REV01) Copyright © 2023 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
CONTENTS PREPARATION INSTALLATION Ceiling-Type Installation Projection Distance per Screen Size Adjusting the Focus of the Projection Display Adjusting the Position of Projection Display Kensington Security System USING REMOTE CONTROL Inserting Batteries in the Remote Control Viewing the Remote Control Features MAKING CONNECTIONS Connecting to a PC External Device Connection... -
Page 3: Preparation
PREPARATION The pictures may differ slightly from the actual product. Accessories Accessories included with the projector are shown below. Accessories are subject to change without prior notice. New accessories may be added or old ones removed. Remote Control Owner's Manual Two AAA Batteries D-Sub To Phone Jack Cable Power cord... - Page 4 Optional Extras To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product. Optional accessories are subject to change without prior notice.
- Page 5 Parts and Components Focus Ring Zoom Ring Inlet Vent Inlet Vent Projection Screen (Lens) IR Receiver Lens Position Adjustment Dial 1) Do not touch the lens when using the projector. The lens may be damaged. (Keep lens away from sharp objects.)
- Page 6 Joystick Button Speaker Speaker Outlet Vent Bottom of the Projector Adjustable leg 1) Due to the high temperature of vent area, do not get close to the vent area. 2) Turn the adjustable leg left or right to adjust the angle.
- Page 7 IR Receiver Port Port Port Port Port (AC IN Port)
- Page 8 Using the Joystick Button You can operate the projector by pressing the button or moving the joystick left, right, up, or down. Basic functions When the projector is turned off, place your Power On finger on the joystick button, press it once, and release it.
- Page 9 Adjusting the menu When the projector is turned on, press the joystick button one time. You can adjust the menu items moving the joystick button left, right, up, or down. Move to the desired menu item, and then press the joystick button once to select it. Turns the power off.
- Page 10 Projector Status Indicators LED Power Indicator LED Power Indicator Power standby state The projector is operating with the power on.
-
Page 11: Installation
INSTALLATION Ceiling-Type Installation WARNING When installing the product on the ceiling, observe the following precautions to prevent the projector from falling: — It is recommended to install the product through a professional installation services provider. (If installing on the ceiling, modify the projector’s PJT Mode settings) —... -
Page 12: Projection Distance Per Screen Size
Projection Distance per Screen Size Place the projector on a sturdy, level surface, together with the PC or audio/ video source. Place the projector an appropriate distance away from the screen. The distance between the projector and the screen determines the actual size of the image. Position the projector so that the lens is at a right angle to the screen. - Page 13 Adjusting the Size of Projection Display Zoom Ring 1.6 x Zoom 1.0 x Zoom...
- Page 14 16:10 Aspect Ratio (1.6 x Zoom) Projection Screen Size Screen Width (Y) Screen Height (X) Distance (D) inches 1016.2 861.6 538.5 1090 1525.2 1292.3 807.7 1660 2034.2 1723.1 1077.0 2230 2543.1 2153.9 1346.2 2800 3052.3 2584.7 1615.4 3360 3557.3 3015.5 1884.7 3930 4061.4...
- Page 15 16:10 Aspect Ratio (1.0 x Zoom) Projection Screen Size Screen Width (Y) Screen Height (X) Distance (D) inches 1016.2 861.6 538.5 1770 1525.2 1292.3 807.7 2680 2034.2 1723.1 1077.0 3600 2543.1 2153.9 1346.2 4500 3052.3 2584.7 1615.4 5390 3557.3 3015.5 1884.7 6310 4061.4...
-
Page 16: Adjusting The Focus Of The Projection Display
Adjusting the Focus of the Projection Display When an image appears on the screen, check if it is in focus and fits the screen properly. To adjust the focus of the image, slowly adjust the focus ring to the left or right while looking at the top centre of the screen. -
Page 17: Adjusting The Position Of Projection Display
Adjusting the Position of Projection Display You can use the Projection Screen (Lens) Position Adjustment Dial to adjust the position of the projection screen without moving the projector up, down, left or right. If the projection screen does not align properly on the screen even after adjusting the position of the projection screen using the Projection Screen (Lens) Position Adjustment Dial, use the [Edge Adjustment] function. - Page 18 How to Use the Projection Screen (Lens) Position Adjustment Dial You can use the dial to move the position of the projection screen (lens) without moving the projector. Up/Down Dial (V-Shift) Left/Right Dial (H-Shift) CAUTION • Clicking sounds while rotating the dial indicates that no further adjustment can be made.
- Page 19 Adjustment Range of the Position of the Projection Screen The range for moving the position of the projection screen using the Projection Screen (Lens) Position Adjustment Dial is shown below. • When the lens position is at its vertical limit (up/down), you cannot move the lens horizontally (left/right).
-
Page 20: Kensington Security System
Kensington Security System • This projector has a Kensington Security Standard connector as an anti-theft mechanism. Connect a Kensington Security System cable as shown below. • For more information on installation and use of the Kensington Security System, refer to the user’s guide provided with the Kensington Security System. •... -
Page 21: Using Remote Control
USING REMOTE CONTROL Inserting Batteries in the Remote Control Use 1.5 V, AAA-type alkaline batteries. Replace the two batteries with new ones and insert them according to the direction indicator inside the remote control. Remove the battery cover on the back of the remote control. -
Page 22: Viewing The Remote Control Features
Viewing the Remote Control Features (Power) Turns the Projector on or off. (Input) Selects the input mode. Turns the Projector on. Turns the Projector off. Reduces power consumption by adjusting peak screen brightness. This function is not supported. Number and Alphabet buttons Enters numerical or alphabetical characters depending upon the setting. - Page 23 (Volume Button) Adjusts the volume level. (Aspect Ratio) Selects the screen size. Shows information on the current screen. (Mute) Mutes all sounds. (Brightness Up/Down) Adjusts the brightness of the display. (Page Up/Down) Moves to the previous or next screen. (Picture Mode) Selects the Picture Mode.
- Page 24 (Settings) Accesses the main menus or saves your input and exit menus. (Up, Down, Left, Right, OK) After selecting the menu, select and adjust functions. Blanks the screen. (Back) Returns to the previous screen. Exits the menu. Allows you to control various multimedia devices to enjoy multimedia simply by using the remote control through the SIMPLINK menu.
- Page 25 NOTE • When using the remote control, the optimal operation range is 6 metres or less (left/right) and within a 30 degree arc of the remote control IR receiver. • If a cable is connected to the back port, the optimal operating range is 3 metres or less (left/right) and within a 30 degree arc of the remote control IR receiver.
-
Page 26: Making Connections
MAKING CONNECTIONS You can connect various external devices to your projector. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a PC Some of the cables are not provided. - Page 27 NOTE • For the best image quality, using the projector with HDMI connection is recommended. • To comply with the standard specifications of the product, use a shielded interface cable with a ferrite core, such as a DVI-D/HDMI cable. • If you turn the projector on when the set is cold, the screen may flicker.
-
Page 28: Connecting Multiple Projectors
Connecting Multiple Projectors HDMI IN HDMI OUT HDMI IN HDMI OUT HDMI IN HDMI OUT • Images may differ according to the model. To use multiple products, connect an external device to a product and then connect one side of the supported signal input cable to the (output) connector of the product, and connect the other side to the (input) connector of another product to... -
Page 29: Safety Precautions
SAFETY PRECAUTIONS Please take note of the safety instructions to prevent any potential accident or misuse of the projector. Child injuries can be prevented by following these simple safety precautions. The precautions should be followed in the same manner when you store or move your existing projector. - Page 30 Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Indoor Installation WARNING Do not install products including projectors and remote controls in the following places: — Any place exposed to direct sunlight; — Any humid place such as bathroom; —...
- Page 31 Keep the following precautions in mind to prevent the temperature rise inside the projector: — Install the air vents at least 30 cm away from the wall. — Do not install the product in a place where it cannot be ventilated, such as on a bookcase or in a closet.
- Page 32 CAUTION When moving the projector, be sure to turn off the power switch and disconnect the power plug, antenna cable and the connection cord between the devices. • A failure to do so may cause damage to the projector or the cord, resulting in a fire or electric shock.
- Page 33 When in Use WARNING When thunder or lightning strikes, unplug the power cord and do not touch the antenna wire. • It may cause an electric shock. If there is a gas leak from the gas lines, do not touch the outlet and be sure to vent by opening the window.
- Page 34 Keep the plastic wrapping of the product out of the reach of children. • If a child misuses it, it may suffocate the child. Do not touch near the vents during the operation or immediately after the power is turned off as they generate intense heat. •...
- Page 35 CAUTION Do not use any product that uses high voltage electricity near the projector. (e.g. An electric fly swatter) • It may cause a malfunction. Do not place any liquid containers such as a vase, pot, cup, cosmetics or medicine, decorations such as candles or any heavy objects on top of the projector.
- Page 36 Do not mix old and new batteries together. • It may cause battery rupture or fire due to liquid leakage or may cause electrical shock. When replacing the batteries, make sure that they are properly installed according to the polarities (+, -). •...
- Page 37 Power WARNING Make sure the power plug is securely plugged in to prevent it from shaking. • If the connection is unstable, it may cause a fire. Do not plug too many devices into one multi-power outlet. • This may result in fire due to the power outlet overheating. Do not insert a metal object such as chopsticks into the other end of the power plug while it is plugged into a wall outlet.
- Page 38 Keep the power cord away from heat sources. • The coating of the cord may melt and cause a fire or electric shock. Use only the authorised power cord or AC adapter supplied by LG Electronics. Do not use any other products. •...
- Page 39 Cleaning WARNING Do not spray water directly onto the projector when cleaning it. • It may cause a fire or electric shock. CAUTION How to clean the projector — Disconnect the plug from the outlet before cleaning. — Do not wipe the optical system (the lens and mirror) immediately after the power is turned off.
- Page 40 Laser WARNING • You risk being exposed to laser radiation if you manipulate or alter the product in a way not specified in the user manual. • Be sure not to let infants or people with diseases directly watch the light source. CAUTION •...
-
Page 41: Checking Before Reporting Malfunction
CHECKING BEFORE REPORTING MALFUNCTION Please check the list below when you experience the following symptoms during use of the product. It may not be a failure. Projector Safety Check Symptoms • The projector does not display anything on the screen or output sound when it is turned on. -
Page 42: Troubleshooting
Troubleshooting Symptoms Causes and Solutions I cannot turn on • Please make sure your projector power plug is correctly the Projector. connected to the outlet. • There may be a problem with the outlet, so try plugging the power cord of another product into the outlet where the projector was plugged in. - Page 43 This noise is normal and does not affect the projector’s functions. LG Electronics manages the manufacturing of projectors according to strict standards. A fixed level of noise does not indicate a problem.
-
Page 44: Checking Information
CHECKING INFORMATION Specifications BF50RG (BF50RG-GL) / BF60RG (BF60RG-GL) / MODEL DBF510RG (DBF510RG-GL) Resolution (Pixel) 1920 (Horizontal) × 1200 (Vertical) Aspect ratio 16:10 (Horizontal:Vertical) Working range of 6 m (Max.) the remote control Projection distance 1090 mm to 8480 mm — Screen size —... - Page 45 BF50RG (BF50RG-GL) / BF60RG (BF60RG-GL) / MODEL DBF510RG (DBF510RG-GL) Height 143.7 mm (without foot), 155.7 mm (with foot) Width 370 mm Depth 290 mm (without lens), 326.2 mm (with lens) Weight 9.2 kg USB Device 5 V, 0.5 A (Max.) Temperature Operation 0 °C to 40 °C...
-
Page 46: Hdmi Supported Mode
HDMI Supported mode Horizontal Frequency Resolution Vertical Frequency (Hz) (kHz) 640 x 480 31.46 59.94 640 x 480 31.5 720 x 480 31.47 59.94 720 x 480 31.5 720 x 576 31.25 1280 x 720 44.96 59.94 1280 x 720 1280 x 720 37.5 1920 x 1080i... - Page 47 Horizontal Frequency Resolution Vertical Frequency (Hz) (kHz) 3840 x 2160p 53.95 23.98 3840 x 2160p 3840 x 2160p 56.25 3840 x 2160p 61.43 29.97 3840 x 2160p 67.5 3840 x 2160p 112.5 3840 x 2160p 134.86 59.94 3840 x 2160p...
- Page 48 Horizontal Frequency Resolution Vertical Frequency (Hz) (kHz) 640 x 350 31.46 70.09 720 x 400 31.46 70.08 640 x 480 31.46 59.94 800 x 600 37.87 60.31 1024 x 768 48.36 1360 x 768 47.71 60.01 1152 x 864 54.34 60.05 1280 x 1024 63.98...
-
Page 49: Licenses
Licenses Supported licenses may differ by model. For more information about licenses, visit www.lg.com. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Vision IQ, Dolby Audio, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. -
Page 50: Open Source Software Notice Information
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 51: Other Specifications
Other specifications As with any bright light source, do not stare into the beam, RG2 IEC 62471- 5:2015. Risk Group 2 CAUTION Possibly hazardous optical radiation emitted from this product. Do not stare at operating lamp. May be harmful to the eye. This label is attached to the bottom of the product and language may differ. -
Page 52: Symbols
Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage.
