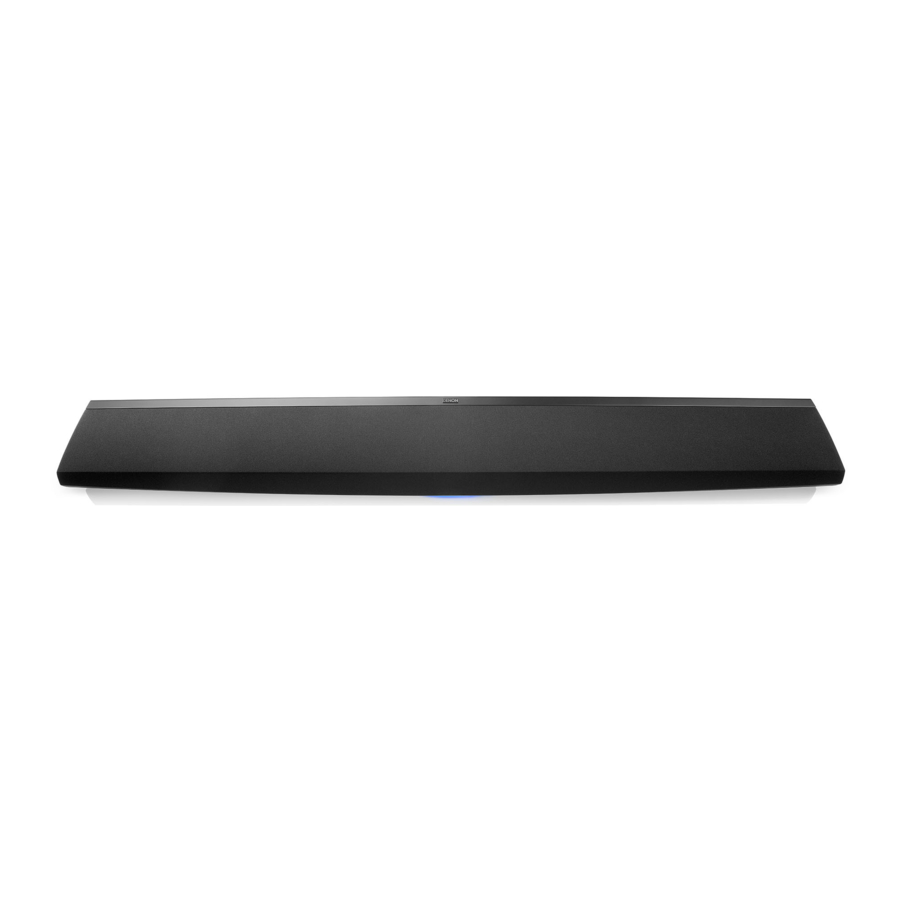

Denon DHT-S716H - Wireless Full-Range Sound Bar Quick Start Guide

BEFORE YOU BEGIN

The DHT-S716H is designed to enhance the sound of your TV and allow you to enjoy HEOS Wireless Multi-Room Sound.

Make sure you have the following items in working order:

OPTIONAL
Two wireless HEOS surround speakers and a wireless HEOS Subwoofer.

UNPACK

Carefully unpack your DHT-S716H.

Verify that the following items are included in the box.

PLACE

Place the DHT-S716H at a convenient location near the TV.

OPTIONAL
The DHT-S716H can be wall-mounted using the integrated keyhole mounts. Please refer to the wall mount template located behind the DHT-S716H in the product carton.

OPTIONAL
Attach the supplied riser feet if you need to raise the DHT-S716H over your TV stand base.

CONNECT

Connect the power cord between the DHT-S716H and a wall outlet.

OPTIONAL
If you are connecting the DHT-S716H to a wired network, connect the included Ethernet cable between the DHT-S716H and your router.
Do not connect the Ethernet cable if you are connecting your DHT-S716H to a wireless network.

CONTROL

1. Download the HEOS App.



   Go to the App Store, Google Play or Amazon App Store and search for "HEOS" to download and install.

ADD DEVICE

ENJOY!

OWNER'S MANUAL

• For more information, visit www.denon.com
• Refer to the Online Manual for other functions information and operation procedure details.manuals.denon.com/DHTS716H/EU/EN/


BASIC TROUBLESHOOTING

My HEOS device won't connect to my network using the audio cable

• Make sure your mobile device is connected to your wireless network before setting up your HEOS device.
• Alternatively, you can connect your HEOS device to your network router using the included Ethernet cable. Once connected via Ethernet, the HEOS by Denon App should recognize the HEOS device and you can manually move it to your wireless network using Settings/My Devices/Device_Name/Advanced/Network Settings.

Music cuts out or delays sometimes

• Make sure your Internet connection is operating correctly.
• If you are sharing your network with other users or devices, they may be using most of your bandwidth (especially if they are streaming video).
• Make sure your HEOS devices are within range of your wireless network.
• Make sure your HEOS devices are not located near other electronic devices that could interfere with it's wireless connectivity (like microwave ovens, cordless phones, TVs, etc...).

Cannot pair a Bluetooth device with the HEOS device

1. Activate the Bluetooth setting on your mobile device.
2. Press and hold the Play/Pause button located on the remote control unit for 3 seconds and release the button when you see a pattern of two green flashes on the status LED.
3. Select "Denon DHT-S716H" from the list of available Bluetooth devices.

Connecting to a network using WPS

If your wireless router supports WPS (Wi-Fi Protected Setup™) your HEOS wireless device can optionally connect to your network using the "Push Button" method by following these steps:

1. Press the WPS button on your router.
2. Within 2 minutes, Press and Hold the Connect button on the rear panel of the HEOS device for 5 seconds.
3. The LED on the front of the HEOS device will flash green for several seconds as it connects to your router.
4. When the connection is complete, the LED on the front of the HEOS device will turn solid blue.

Resetting your device

Resetting your HEOS device will clear out the wireless network settings, EQ, and name but retain it's current software. You will have to use Settings->Add Device to reconnect the device to your home network before it can be used.
To reset your HEOS device, press and hold the Connect and Bluetooth buttons located on the HEOS device for 5 seconds until the front LED begins to flash amber.
The HEOS by Denon app and brand is not affiliated with any manufacturer of any mobile device.

CONTACT

FREE HELPLINE

00800-43674357

We hope you will enjoy your HEOS enabled product for years to come. If you ever have any questions or need any support, just get in touch. We are happy if you are happy.
The free HEOS helpline (English) is currently available in the United Kingdom, Ireland, Sweden, Norway, Denmark and Finland.
For more information visit www.denon.eu/support
