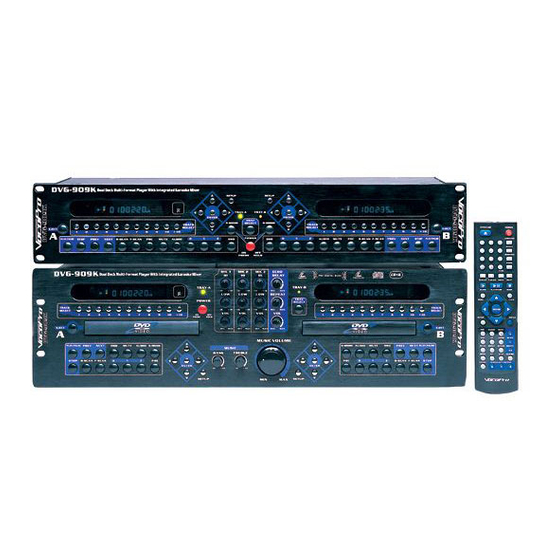

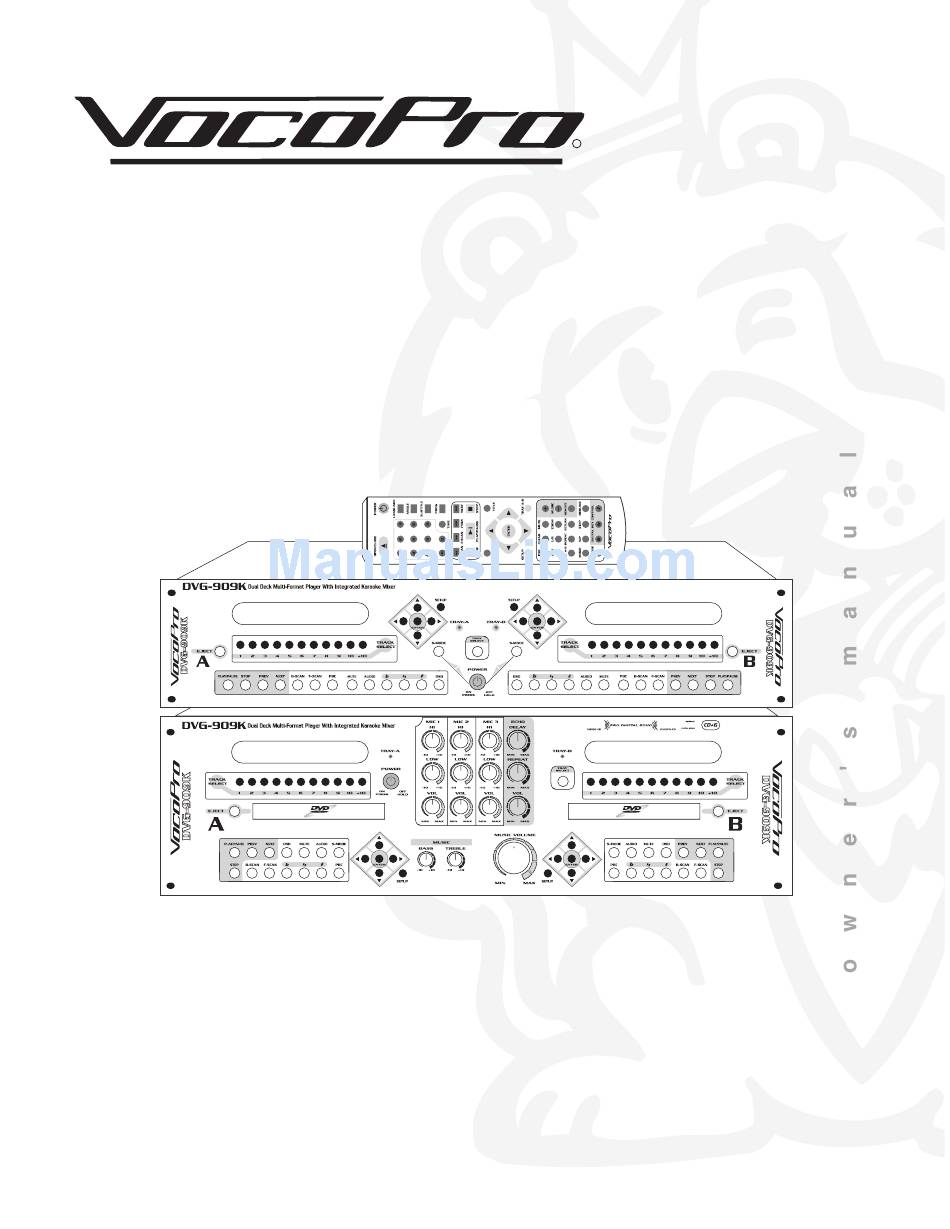

- Page 1 THE SINGER'S ULTIMATE CHOICE DVG-909K Dual-Deck Multi Format Player With Integrated Pro Karaoke Mixer Plus External Controller...
-
Page 2: Table Of Contents
Welcome ... 4 Listening for a lifetime ... 5 Specifications and Features ... 6 Mounting the DVG-909K ... 7 Getting Connected Audio connections Connecting both Analog and Digital Audio ... 8 Connecting to a Dolby Pro Logic Amplifier ... 8 Connecting to a 2-Channel Stereo Receiver/TV ... -
Page 3: Safety Instructions
Safety instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. -
Page 4: Fcc Information
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. -
Page 5: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit. -
Page 6: Listening For A Lifetime
Now itʼs time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Associationʼs Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. -
Page 7: Specifications And Features
Features and specifications Features • Independent dual-deck playback of DVD, VCD, CDG, MP3 and CD disc formats. • Included full-function external controller • Three Mic Channels with ¼” Unbalanced and XLR-TRS Balanced Inputs with Individual Volume and High/Low Frequency Controls •... -
Page 8: Mounting The Dvg-909K
Mounting the External Controller The DVG-909K external controller is most convenient when mounted into the top of a slant rack case. It requires 4 screws to mount and takes up 2 RU’s of rack space. Use an alternating “X” rotation when screwing to ensure even tension and... -
Page 9: Getting Connected
Using six RCA patch cables, connect the plugs from one side of the cables to the FL, FR, CENTER, SL, SR and SW outputs on the DVG-909K. Connect all the plugs from the other side to the FL, FR, CENTER, SL, SR and SW inputs on your Dolby Pro Logic amplifier. -
Page 10: Connecting To A 2-Channel Stereo Receiver/Tv
Connecting each disc player independently (Fig. A) Connect your L/R RCA cables to the L and R AUDIO outputs on the rear panel of the DVG-909K to the L/R (red and white) audio inputs on your 2-channel stereo receiver, mixer or TV. See figure. A NOTE: Depending on the stereo receiver/TV, the audio input jacks may be labeled AUDIO, LINE, AUX, AV 1, etc. -
Page 11: Video Connections
Connecting to a TV or video mixer with an RCA Connection When connecting to the RCA (yellow) video input on a TV or video mixer, the DVG-909K gives you the option of outputting both disc players independently (Fig.A) or together through the Switched Video Output (Fig.B). -
Page 12: Connecting To A Tv With S-Video
Getting connected cont. Connecting to a TV with S-Video Using an S-Video cable, connect one end to the DVG-909K’s S-VIDEO OUTPUT jack and connect the other end to the S-VIDEO IN jack on your television. S-Video Connecting to a TV with Component Video... -
Page 13: Microphone Connections
Connect the 1/4” end of the microphone cable into one of the UNBALANCED MIC INPUTS on the rear panel of the DVG- 909K. See figure A. Connect by XLR mic Cable (Fig. B) Connect the XLR cable’s female end into one of the BALANCED MIC INPUTS on the back of the DVG-909K. See figure B Mic/Controller 1/4” Inputs... -
Page 14: Front Panel
2. DISPLAY panel - Displays graphical information on the DVG-909K’s operating status. 3. POWER ON/STANDBY button - Use this button to turn the DVG-909K ON or put it in STANDBY mode. In order for this button to turn the unit on, the MASTER POWER switch on the rear panel must be set to the ON position. -
Page 15: Front Panel
ENTER button to make selections and changes. NOTE: The DVG-909K must be connected to a TV or monitor device in order to view the Preferences pages. 23. MUSIC BASS control - Use this control to adjust the bass level of the music from the disc player. -
Page 16: Rear Panel
9. VOLTAGE selector - Selects between 115V and 230V power settings. 10. CABLE CONTROL jacks - These connect to the External Controller for the DVG-909K. 11. UNBALANCED MIC INPUTS (1/4”) - Connect microphones to these jacks using 1/4” microphone cables. -
Page 17: Remote Control
Remote control functions 1. OPEN/CLOSE button – Press to OPEN and CLOSE the disc tray. 2. POWER button – Press to turn the DVG-909K ON/ OFF. 3. NUMBER pad - Press to select a track or file for direct playback. -
Page 18: Remote Control
Remote control functions cont. 22. CLEAR button - This button clears any programming that has been done in PROGRAM mode. 23. MUTE button - Press to silence audio playback. Video playback is not affected while using the menu feature. 24. MUSIC VOLUME buttons - Use these buttons to increase and decrease the volume of the disc player’s volume. -
Page 19: Remote Control Operation
Remote control operation Installing the batteries First remove the battery compartment lid from the back of a remote control. Insert two AAA batteries, ensuring that the polarities are aligned correctly. Batteries Signs that the batteries need to be changed include: - The remote only works when held closer to the player than usual. -
Page 20: External Controller
finished. 17. POWER ON/STANDBY button - Use this button to turn the DVG-909K ON or put it in STANDBY mode. In order for this button to turn the unit on, the MASTER POWER switch on the rear panel of the player must be set to the ON position. -
Page 21: Basic Operations
Basic operations Preparing to Play a Disc or Discs Turning on the Power Turn on the DVG-909K’s power by pressing the POWER button on the player or on the remote. NOTE: Be sure that the power cord is plugged in and that the master power switch on the back of the player is switched to the ON position. - Page 22 Basic operations cont. Using Direct Track Access You can use the Direct Track Access feature to jump di- rectly to a track, song or chapter (DVD movie) by entering its number. Direct Track Access works while a disc is in stop mode or while a disc is playing.
-
Page 23: Advanced Operations
Advanced operations Repeating a Segment Using the A-B Feature Press the A-B (SHIFT +A-B) button The starting point of the LOOP region is immediately commenced after pushing A-B. Press the A-B button again to establish the LOOP ending point. Repeat Segment To cancel the loop Press the A-B button a third time. -
Page 24: Karaoke Operations
Karaoke operations Using Digital Key Control Digital Key Control lets you raise and lower the key of the music to best fit a singer’s vocal range. Use the Digital Key Control buttons on the player or on the remote to change the key of a song. -
Page 25: Dvd Operations
DVD operations Accessing the DVD Menu To return to the DVD menu while the movie is showing, simply press the MENU button on the remote control Changing Angles When playing a DVD with multi-angles recorded, you can select the angle you want to view. During playback, when a multi-angle scene comes on, the angle symbol is displayed to inform you that more viewing angles are available. -
Page 26: Mp3 Operations
MP3 Operations MP3 Playback Load an MP3 disc The disc will automatically load and display the MP3 window. It may take up to 20 seconds for an MP3 disc to be read depending on the complexity of the file structure. Navigating through the Mp3 Menu Use the arrow keys on the remote control to navigate through the mp3 menu. -
Page 27: Setting Up Preferences (On Screen Display)
Setting up preferences Press SETUP on the remote control or on the DVG-909K’s front panel to get into the SETUP menus. All settings have been preset in the DEFAULT mode. This means that the most common settings will already be active when you first setup the DVG- 909K. -
Page 28: Speaker Setup
Setting up preferences cont. SPEAKER SETUP SPEAKER Page 1. DOWNMIX LT / RT: When connecting to a Dolby Digital amplifier. STEREO: When connecting to a stereo TV or amplifier and the disc supports 2-channel output. 5.1CH: Choose this setting to output the 5.1-channel sound. NOTE: You must turn KARAOKE MODE off (see the KARAOKE SETUP page) in order to access any of the below settings. -
Page 29: Audio Setup
Setting up preferences cont. AUDIO SETUP AUDIO Page 1. SPDIF OUTPUT OFF: Turns off the SPDIF output. ON: Turns on the SPDIF output. NOTE: Only turn on the SPDIF digital output when you are using a digital audio processor. Some digital audio processors will require you to select an LPCM output frequency. - Page 30 4:3 picture 2. TV TYPE Set the DVG-909K’s output to match your TV set’s system format. For example, NTSC for North American TV systems or PAL for European systems. Select MULTI. SYSTEM if you fre- quently switch between PAL and NTSC modes.
- Page 31 7. PARENTAL Select the preferred parental control level. You must use a password when changing the parental control level. The fac- tory preset password for the DVG-909K is “3308”. To program your own password follow the instructions below. 9. PASSWORD When changing the parental control level, the system requires a password.
-
Page 32: Troubleshooting
- - Is the player in a place with excessive vibration? - Are the video connections attached? - Is the disc dirty? - Is the DVG-909K connected directly to a television selector switch or a television with a built-in video deck? Solution - Make sure the power cord is plugged firmly into the back of the machine. -
Page 33: Troubleshooting
Troubleshooting cont. Problem No Sound The remote control does not work properly or at all Possible Cause - Are the audio connections attached and firmly connected? - Is the connected audio equipment turned on? Is the volume set correctly? - Are the remote control batteries in- stalled correctly? - The remote control may be too far from the player. - Page 34 THE SINGER'S ULTIMATE CHOICE VOCOPRO 2005 Version 1.0 www.vocopro.com...
