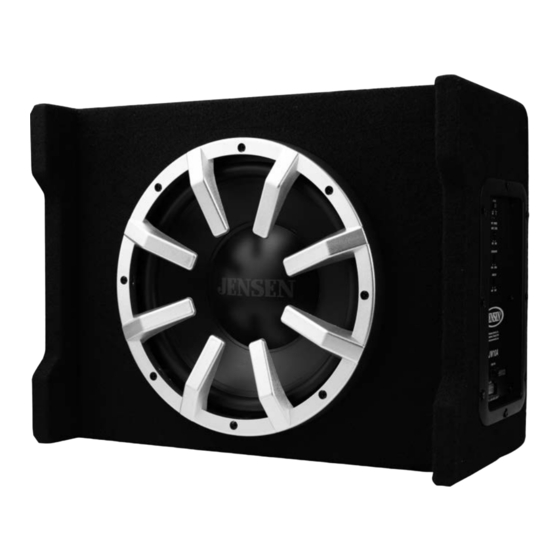

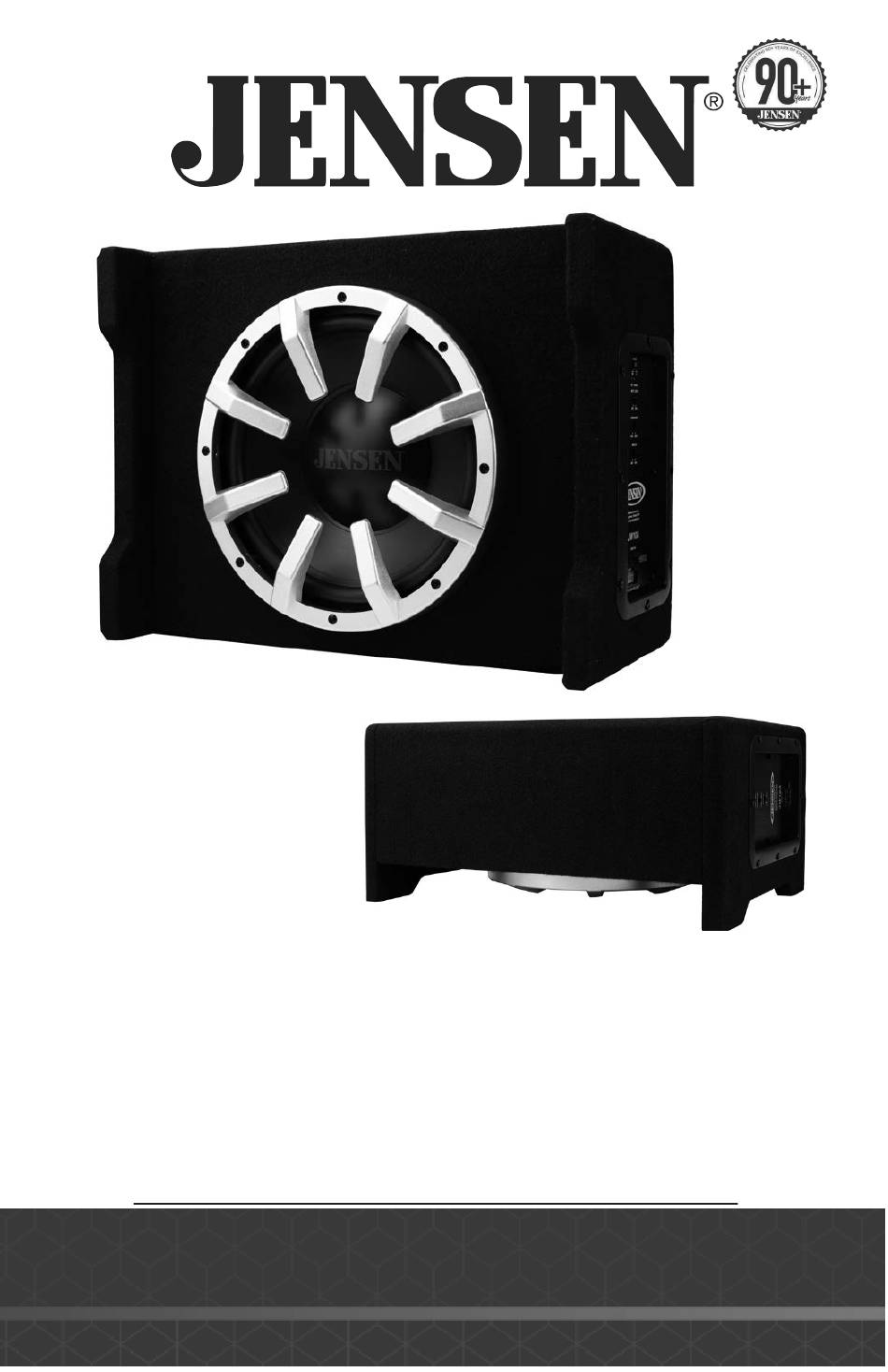

- Page 1 JW10A 10" Powered Subwoofer in a Vented Enclosure with Multiple Mounting Options INSTALLATION/OWNER'S MANUAL...
-
Page 2: Getting Started
PREPARATION Getting Started Thank you for purchasing the Jensen JW10A 10" vented enclosure with built-in amplifier. Although Jensen has attempted to ensure the information in this manual is accurate, please be aware that any part of it is subject to change without notice. -
Page 3: Installation
The following installation instructions are intended to be used as a basic guideline. If you feel unsure about installing this speaker system yourself, Jensen recommends acquiring the services of a professional car audio installation center. Before installation, please review the following guidelines: 1. -
Page 4: Connection Descriptions
INSTALLATION Connection Descriptions Note: Be sure to follow specific instructions included with your amplifier installation kit (not included with this amplifier). The information below should be used a general guideline only. Power Wire (+12V) • Disconnect negative battery terminal before proceeding. Consult a qualified technician for instructions if you are unsure. • Plan wire routing before cutting any wires to length. Begin by routing the power + + 12V wire from the battery to the amplifier location. Use a grommet whe running wires through the firewall or metal openings. -
Page 5: Connections And Controls
INSTALLATION Connections and Controls Phase Control Crossover Frequency Power Indicator Bass EQ Protect Indicator Fuse (15A) Input Level Control Power / Input Connector... - Page 6 For optimum performance, use only new fuse is the correct type and 12 gauge wire or larger. Make sure amperage. Using an incorrect fuse to use the same size power and could damage the amplifier. The ground wire. JW10A uses (1) 15 amp ATO style fuse.
- Page 7 Step 3 Place the JW10A on the brackets as shown. Step 4 Lace the mounting straps through the buckles. Step 5...
- Page 8 Step 3 Place the JW10A on the brackets as shown. Step 4 Lace the mounting straps through the buckles. Step 5...
- Page 9 The adjustable crossover is used to filter out Crossover Frequency frequencies above 50Hz ~ 250Hz. Adjust it to where Control the JW10A sound output blends with the rest of the sound system. The phase control compensates for delay between Phase Control the JW10A output and the rest of the sound system.
-
Page 10: Warranty
Warranty Coverage Limited 1-year warranty when purchased from an authorized Jensen dealer. *Limited 2-year warranty when purchased from and professionally installed by an authorized Jensen dealer. (Proof of purchase and Installation required) What to do? 1. -
Page 11: Troubleshooting
Please keep your original sales receipt and be prepared to For Your Records provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Jensen product. Dealer Name Dealer Phone Purchase Date Register your product online at www.jensenmobile.com... -
Page 12: Specifications
INSTALLATION Specifications Maximum Output Power watts 100 watts Continuous Output Power 40-250Hz Frequency Response 11.0VDC ~ 14.4VDC Allowed Operating Voltage 4 Ohms Impedance 50–250Hz Crossover Frequency Class A/B Amplifier Type 0–180 degrees Phase 15 amp ATO Fuse Depth (standing): 7.87” / Depth (laying down): 12.6” Dimensions Height (standing): 12.6” / Height (laying down): 7.87” Width (standing): 16.54”... - Page 13 Customer Support 1-888-921-4088 (Monday-Friday, 9AM-5PM EST) https://www.jensenmobile.com Designed and Engineered in USA All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
