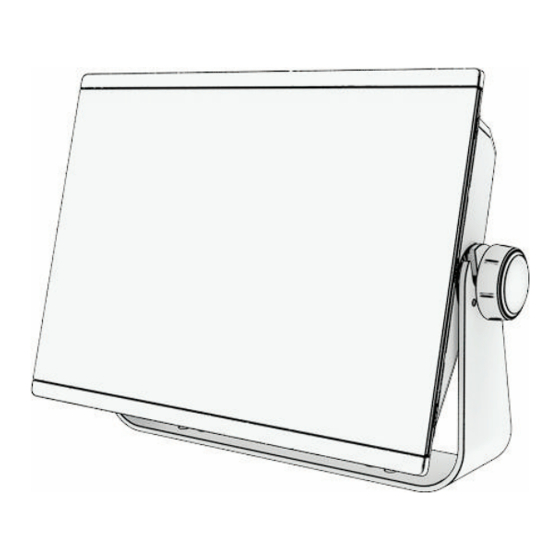

GPSMAP
7X3/9X3/12X3/16X3
®
INSTALLATION INSTRUCTIONS
Important Safety Information
WARNING
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
When connecting the power cable, do not remove the in-line fuse holder. To prevent the possibility of injury or
product damage caused by fire or overheating, the appropriate fuse must be in place as indicated in the product
specifications. Connecting the power cable without the appropriate fuse in place voids the product warranty.
Failure to install this device according to these instructions could result in personal injury, damage to the vessel
or device, or poor product performance.
CAUTION
To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,
cutting, or sanding.
To avoid possible personal injury or damage to the device and vessel, disconnect the vessel's power supply
before beginning to install the device.
To avoid possible personal injury or damage to the device or vessel, before applying power to the device, make
sure that it has been properly grounded, following the instructions in the guide.
To avoid possible personal injury or damage to this device and vessel, only install this device when the vessel is
on land, or when properly secured and docked in calm water conditions.
NOTICE
When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.
Read all installation instructions before proceeding with the installation. If you experience difficulty during the
installation, contact Garmin
®
Product Support.
TA-2021/2041
TA-2020/7392
TA-2020/7391
TA-2020/7368
February 2024
GUID-BF2FF273-008A-482A-A96F-362ADA8996BA v6
Advertisement
Table of Contents
Related Manuals for Garmin GPSMAP 16X3
Summary of Contents for Garmin GPSMAP 16X3
- Page 1 When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel. Read all installation instructions before proceeding with the installation. If you experience difficulty during the installation, contact Garmin ® Product Support.
-
Page 2: Tools Needed
GPSMAP 7x3: 6.5 mm ( in.) Flush for the corner of the cutout GPSMAP 9x3: 8 mm ( in.) GPSMAP 12x3 and GPSMAP 16x3: 14 mm ( in.) GPSMAP 7x3, GPSMAP 9x3, and GPSMAP 12x3: 2.3 mm ( in.) Flush with included wood screws GPSMAP 16x3: 3.2 mm (... - Page 3 Micro-USB for compatible Garmin card reader NMEA 2000 NMEA 2000 ® network 2 microSD ® memory card slots, 32 GB max. GPSMAP 12x3 and GPSMAP 16x3 Connector View POWER Power and NMEA 0183 network SONAR 12-pin transducer (Not available on all models) HDMI HDMI ®...
-
Page 4: Contacting Garmin Support
• In Europe, call +44 (0) 870 850 1241. Software Update You may need to update the chartplotter software after installation. For the instructions on how to update the software, see the owner's manual at garmin.com/manuals/gpsmap7x3-9x3-12x3-16x3/. Mounting Considerations NOTICE This device should be mounted in a location that is not exposed to extreme temperatures or conditions. The temperature range for this device is listed in the product specifications. -
Page 5: Bail Mounting The Device
Bail Mounting the Device NOTICE If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer when the screws are tightened. - Page 6 8 After the device fits correctly in the cutout, ensure the mounting holes on the device line up with the hole locations on the template. NOTE: GPSMAP 12x3 and GPSMAP 16x3 models have six mounting holes. GPSMAP 9x3 and GPSMAP 7x3 models have four mounting holes.
- Page 7 Metal screws (drill and tap): M3 Wood screws (drill): 3.2 mm ( in.) GPSMAP 16x3 Metal screws (drill and tap): M4 2 Install the foam gasket on the back of the device. The pieces of the foam gasket have adhesive on the back. Make sure you remove the protective liner before installing them on the device.
- Page 8 On GPSMAP 7x3, GPSMAP 9x3, and GPSMAP 12x3 devices, the raised portion of the nut plate should fit into the smaller hole. On GPSMAP 16x3 devices, the raised portion of the nut plate should fit into the larger hole. 8 Secure the nut plates to the mounting surface by fastening the pan head machine screws through the holes with the raised portion of the nut plate.
-
Page 9: Connection Considerations
9 Install the foam gasket on the back of the device. The pieces of the foam gasket have adhesive on the back. Make sure you remove the protective liner before installing them on the device. 10 If you will not have access to the back of the device after you mount it, connect all necessary cables and install microSD cards in the back of the device before placing it into the cutout. - Page 10 Item Wire Color Wire Function Power Black Ground (power and NMEA 0183) Blue NMEA 0183 TxA (Out +) Gray NMEA 0183 TxB (Out -) Brown NMEA 0183 RxA (In +) Violet NMEA 0183 RxB (In -) Orange Accessory on Yellow Alarm low Connecting the Wiring Harness to Power WARNING...
- Page 11 Power Wire Extensions If necessary, the power wires can be extended using the appropriate wire gauge for the length of the extension. NOTE: The power wires on this cable are red (+) and black (-). The other wires on this cable are used for other, optional connections and are not shown in this diagram.
-
Page 12: Garmin Marine Network Considerations
• The NETWORK ports on the device each act as a network switch. Any compatible device can be connected to any NETWORK port to share data with all devices on the boat connected by a Garmin Marine Network cable. NMEA 2000 Considerations NOTICE If you are connecting to an existing NMEA 2000 network, identify the NMEA 2000 power cable. - Page 13 Item Description NMEA 2000 compatible Garmin device GPS antenna Ignition or in-line switch NMEA 2000 power cable NMEA 2000 drop cable 12 Vdc power source NMEA 2000 terminator or backbone cable NMEA 2000 T-connector NMEA 2000 terminator or backbone cable...
-
Page 14: Nmea 0183 Connection Considerations
This diagram illustrates two-way connections for both sending and receiving data. You can also use this diagram for one-way communication. To receive information from a NMEA 0183 device, refer to items , and when connecting the Garmin device. To transmit information to a NMEA 0183 device, refer to items , and when connecting the Garmin device. - Page 15 Item Garmin Wire Function Garmin Wire Color NMEA 0183 Device Wire Function Power Power Power ground Black Power ground Data ground Black Data ground Rx/A (In +) Brown Tx/A (Out +) Rx/B (In -) Violet Tx/B (Out -) Tx/A (Out +)
- Page 16 Lamp and Horn Connections The device can be used with a lamp, a horn, or both, to sound or flash an alert when the chartplotter displays a message. This is optional, and the alarm wire is not necessary for the device to function normally. When connecting the device to a lamp or horn, observe these considerations.
-
Page 17: J1939 Engine Network Connection Considerations
• The CVBS IN port uses a BNC connector. You can use a BNC to RCA adapter to connect a composite-video source with RCA connectors to the CVBS IN port. • Video is shared across the Garmin Marine Network, but it is not shared across the NMEA 2000 network. - Page 18 The Garmin GPSMAP HDMI accessory cable is 4.5 m (15 ft.) long. If you need a longer cable, you should use an active HDMI cable only. You need an HDMI coupler to connect the two HDMI cables.
-
Page 19: Specifications
6 A, 125 V fast-acting The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Only compatible Garmin card readers recommended. Third-party card readers are not guaranteed to be fully compatible. - Page 20 GPSMAP 9x3 Dimensions (W × H × D) 233.0 × 162.3 × 75.8 mm (9 × 6 × 3 in.) Dimensions with cover on bail mount (W × H × D) 256.2 × 178.1 ×104.7 mm (10 x 7 x 4 in.) Clearance to next obstruction behind chartplotter 33.2 mm (1 in.) 198.7 ×...
- Page 21 GPSMAP 16x3 Dimensions (W × H × D) 384.7 × 266.4 × 78 mm (15 × 10 × 3 in.) Dimensions with cover on bail mount (W × H × D) 405.9 × 277.3 × 110 mm (16 × 10 × 4 ...
-
Page 22: Nmea 2000 Pgn Information
NMEA 2000 PGN Information Transmit and Receive Description 059392 ISO acknowledgment 059904 ISO request 060160 ISO transport protocol: Data transfer 060416 ISO transport protocol: Connection management 060928 ISO address claimed 065240 Commanded address 126208 Request group function 126996 Product information 126998 Configuration information 127237... - Page 23 Description 130312 Temperature (obsolete) Transmit Description 126464 Transmit and receive PGN list group function 126984 Alert response 127497 Trip parameters: Engine Receive Description 065030 Generator average basic AC quantities (GAAC) 126983 Alert 126985 Alert text 126987 Alert threshold 126988 Alert value 126992 System time 127233...
- Page 24 Description 129794 AIS class A static and voyage related data 129798 AIS SAR aircraft position report 129799 Radio frequency/mode/power 129802 AIS safety-related broadcast message 129808 DSC call Information 129809 AIS class B "CS" static data report, part A 129810 AIS class B "CS" static data report, part B 130067 Route and waypoint service: Route, waypoint name and position 130313...
-
Page 25: Nmea 0183 Information
NMEA 0183 Information Transmit Sentence Description GPAPB APB: Heading or track controller (autopilot) sentence "B" GPBOD BOD: Bearing (origin to destination) GPBWC BWC: Bearing and distance to waypoint GPGGA GGA: Global positioning system fix data GPGLL GLL: Geographic position (latitude and longitude) GPGSA GSA: GNSS DOP and active satellites GPGSV... - Page 26 Receive Sentence Description Depth Depth below transducer Water temperature Water speed and heading Waypoint location Digital selective calling information Expanded digital selective calling Heading, deviation, and variation Heading, magnetic Wind direction and speed Meteorological composite Wind speed and angle Routes AIS VHF data-link message You can purchase complete information about National Marine Electronics Association (NMEA) format and sentences from www.nmea.org.
- Page 27 J1939 Information The chartplotter can receive J1939 sentences. The chartplotter cannot transmit over the J1939 network. Description Engine percent load at current speed 61443 Engine speed 61444 Engine manifold exhaust gas temperature - right manifold 65031 2433 Engine manifold exhaust gas temperature - left manifold 65031 2434 Engine auxiliary coolant...
- Page 28 Garmin ® , the Garmin logo, and GPSMAP ® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express permission of Garmin. NMEA ® , NMEA 2000 ®...
- Page 29 GPSMAP 723/743/753/723xsv/743xsv/753xsv, GPSMAP 923/943/953/923xsv/943xsv/953xsvn, GPSMAP 1223/1243/1253/1223xsv/1243xsv/1253xsv, GPSMAP 1623/1643/1623xsv/1643xsv/1653xsv M/N: A03873, B03873, A03875, A04868 FCC: IPH-03873, IPH-03875, IPH-04868 IC: 1792A-03873, 1792A-03875, 1792A-04868 Garmin Corporation...
