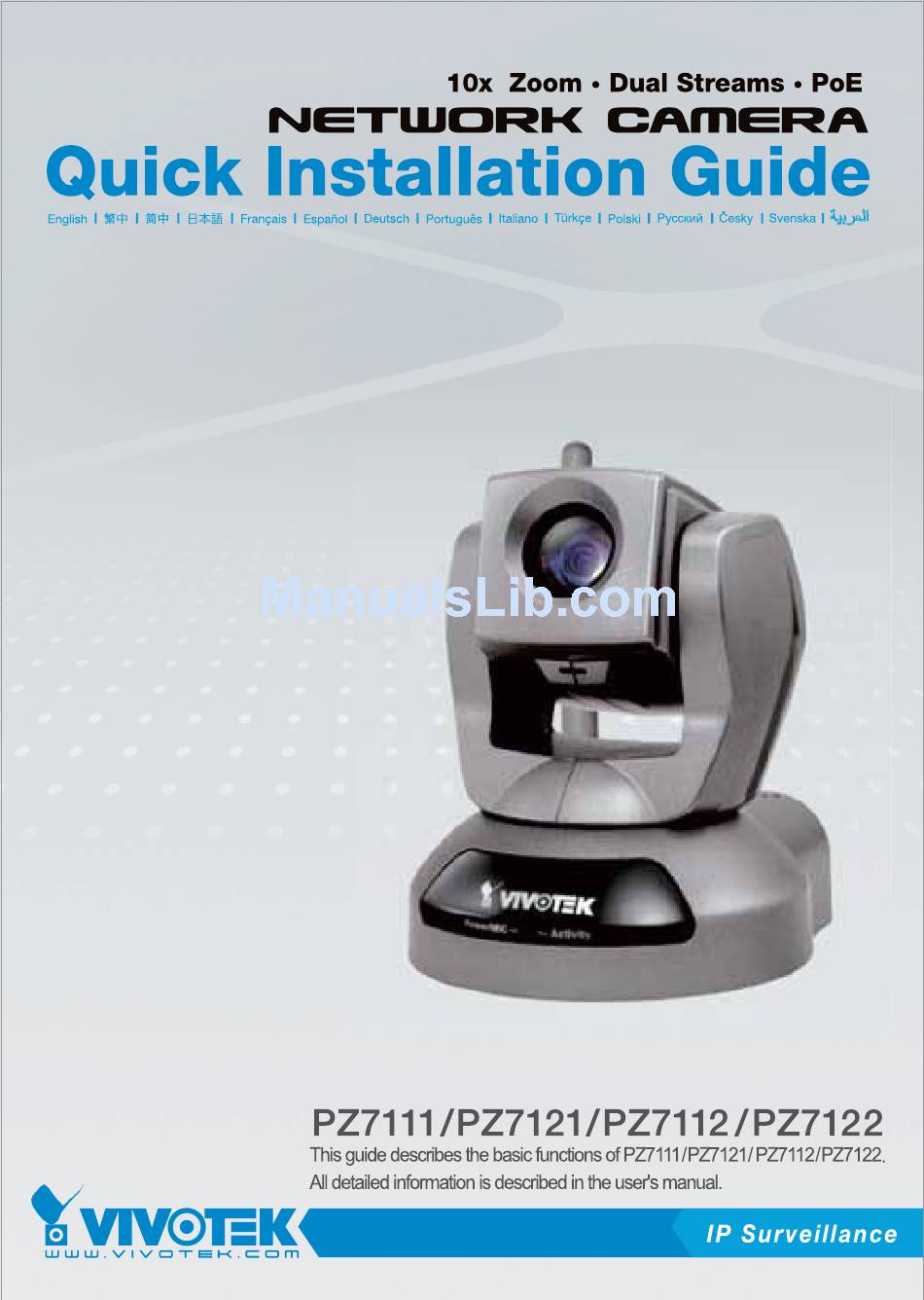

Vivotek PZ7111 Quick Installation Manual
Network camera
Hide thumbs
Also See for PZ7111:
- Quick installation manual (13 pages) ,
- Specifications (2 pages) ,
- User manual (126 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Vivotek PZ7111
Summary of Contents for Vivotek PZ7111
- Page 2 Warning Before Installation Power off the Network Camera assoon as smoke or unusual odors are detected. Contact your distributor in the event of occurrence. Do not place the Network Camera around heat sources, such as a television or oven. Keep the Network Camera away from direct sunlight.
- Page 3 Do not place the Network Camera on unsteady surfaces. Do not disassemble the Network Camera. Do not insert sharp or tiny objects into the Network Camera. Do not touch the Network Camera during a lightning storm. Do not drop the Network Camera. Do not manually pan and tilt the Network Camera when the power is EN - 2...
-
Page 4: Package Contents
Package Contents PZ7111 / PZ7121/ PZ7112 / PZ7122 Antenna (PZ7112 / PZ7122 Only) Quick Installation Guide / Warranty Card A/V Cable Power Adapter Screws Software CD Ceiling Mount Brackets EN - 3... -
Page 5: Physical Description
Physical Description Front Panel Lens Status LED Back Panel Microphone In Ethernet 10/100 RJ45 Socket Power cord socket General I/O Terminal Block Power/MIC Activity EN - 4 Built-in Microphone Antenna (PZ7112 / PZ7122 Only) AV Out Recessed Reset Button External/Internal Microphone Switch... -
Page 6: Hardware Installation
Hardware Installation Mounting the Network Camera 1. Attach ceiling mount bracket A to the Network Camera and secure it with two small screws. 2. Drill three pilot holes into the ceiling; hammer the plastic anchors into the holes. 3. Fasten ceiling mount bracket B to the ceiling with three screws. 4. -
Page 7: Network Deployment
Network Deployment General Connection (without PoE) 1. If you have external devices such as sensors and alarms, connect them to the general I/O terminal block. 2. Connect the camera to a switch via Ethernet cable. 3. Connect the supplied power cable from the camera to a power outlet. 1: Power 2: Digital output 3: Digital input... -
Page 8: Power Over Ethernet (Poe)
Power over Ethernet (PoE) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the camera to a PoE e abled switch via Ethernet cable. When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch. -
Page 9: Assigning An Ip Address
“Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Network Camera via Internet Explorer. -
Page 10: Ready To Use
Ready to Use 1. Access the Network Camera on the LAN. 2. Retrieve live video through a web browser or recording software. For further setup, please refer to the user's manual on the software CD. EN - 9... - Page 11 Configure the Wireless Connection 1. Check the SSID for your wireless access point (AP). 2. Go to the PZ7112 / PZ7122's Configuration page > Advanced mode > Wireless LAN. 3. Type in the SSID the same as your AP. 4. Select the Wireless mode as "Infrastructure". 5.
- Page 12 P/N: 625006701G Ver.1.11...
