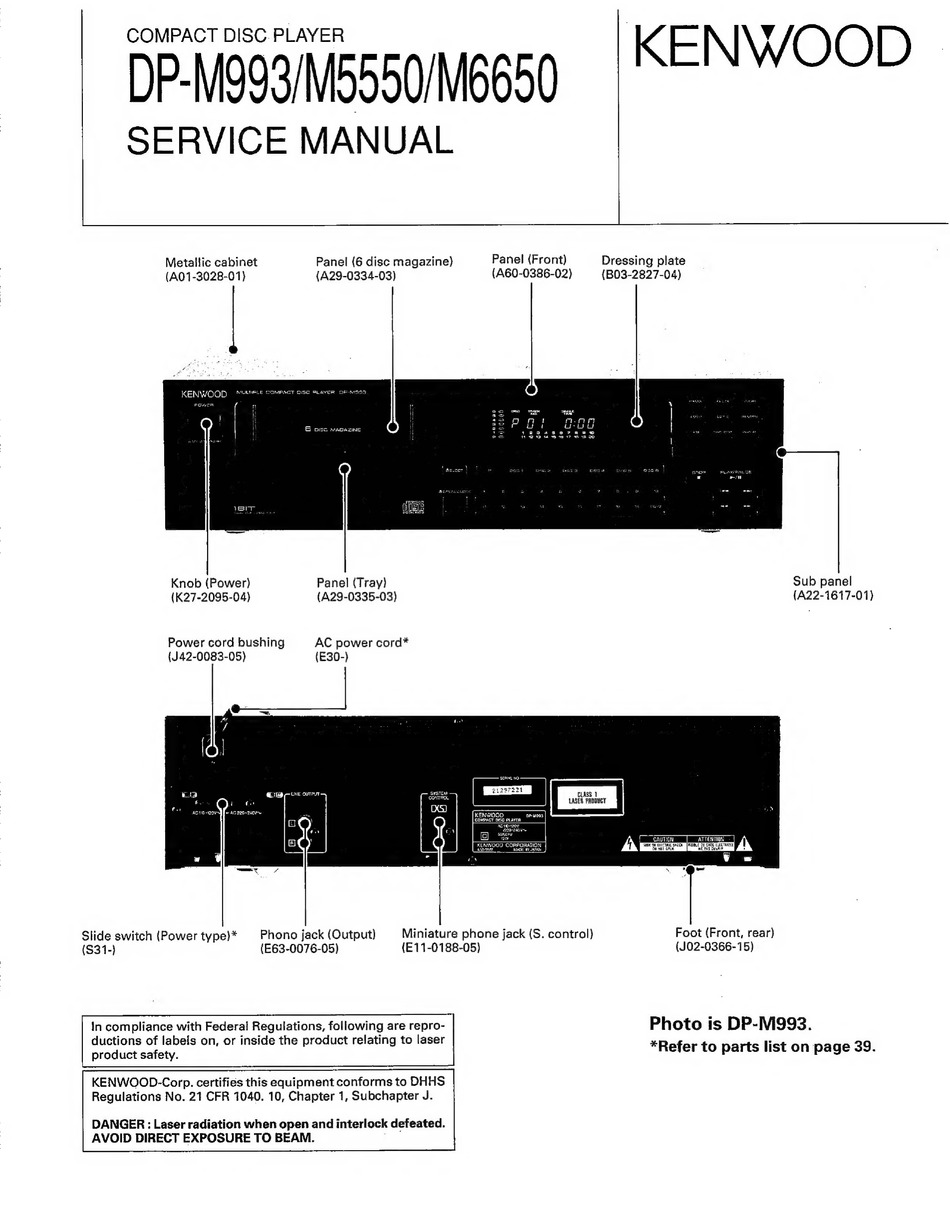

Kenwood DP-M993 Service Manual

COMPACT DISC PLAYER
DP-M993/Moo00/M6630
SERVICE MANUAL
KENWOOD `
Metallic cabinet Panel (6 disc magazine) Panel (Front) Dressing plate
(A01-3028-01) (A29-0334-03) (A60-0386-02) (B03-2827-04)
i
d i
Knob (Power) Panel (Tray) Sub panel
(K27-2095-04) (A29-0335-03) (A22-1617-01)
Power cord bushing AC power cord*
(J42-0083-05) (E30-)

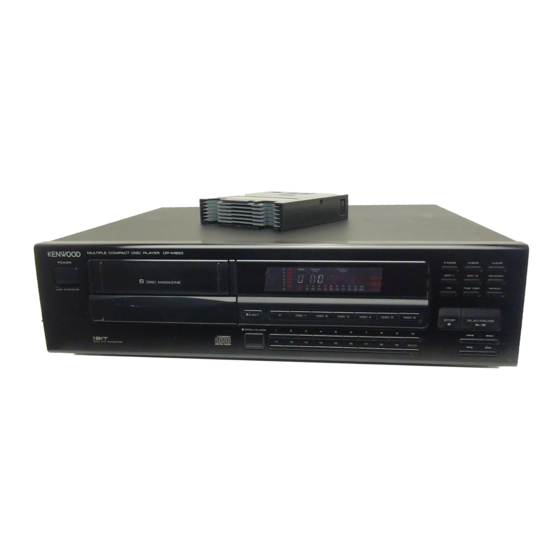

Photo is DP-M993.
*Refer to parts list on page 39.
In compliance with Federal Regulations, following are repro-
ductions of labels on, or inside the product relating to laser
product safety.
KENWOOD-Corp. certifies this equipment conforms to DHHS
Regulations No. 21 CFR 1040. 10, Chapter 1, Subchapter J.
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO ВЕАМ.
