- Page 1 PavoTube T8-7X USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd.
-
Page 2: Product Diagram

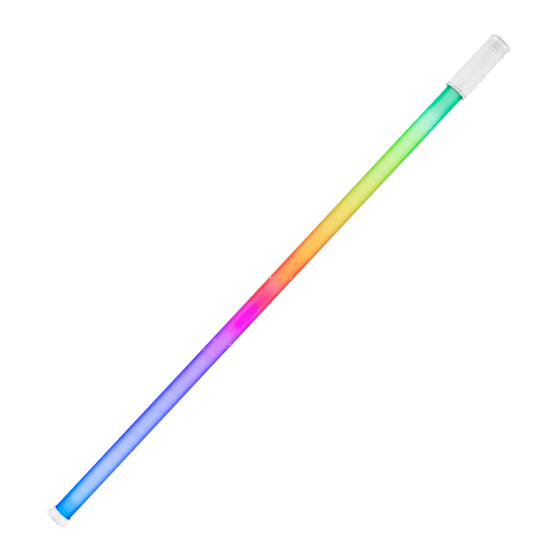

PavoTube T8-7X RGBWW LED Pixel Tube Light Product Diagram Battery capacity: 3.7V/4400mAh Rated Input: 5V/2A PavoTube T8-7X ta=45℃ MADE IN CHINA Technical Data Rated Power: 8W Input: DC5V/2A Color Temperature: 2700K-7500K CRI: Average 96 TLCI: Average 97... -
Page 3: Product Details
Product Details 1. Handle Button CCT/HUE 3. DIM Button 8. CCT/HUE Button Reset 4. Reset Button 7. 1/4"-20 Mount Receiver 5. USB Type-C Port 6. LED Indicator Detailed Description 1. Handle: To hold the fixture. Button: Long press the button to turn the fixture on/off, short press the button to switch between CCT and HSI modes. - Page 4 6. LED Indicator: To signify the state of power input. The indicator will flash when the fixture is charging; the indicator is on when the fixture is fully charged. When the fixture is being used, the indicator will also light up. 7.
- Page 5 2. Connection between the Light Fixture and WC-USBC-C1 Wire Controller CCT/HUE Reset MODE SWITCH The fixture can be controlled by the wire controller in CCT mode, HSI mode, EFFECT mode, PIXEL FX mode, CHANNEL setting, LANGUAGE, DMX mode, DMX PIXEL, WIRELESS PROTOCOL, BLUETOOTH RESET, FIRMWARE UPDATE and VERSION checking (please refer to wire controller user manual for detailed instructions).
- Page 6 Remote Control and Control Method by Wire Controller PavoTube T8-7X supports DMX and wire controller control, and includes a built-in Bluetooth module as well. · ▲The channel needs to be set before operating remote control via DMX. 1. Channel and DMX setting, including CHANNEL, DMX MODE, DMX REDUCED CHANNELS, DMX DIMMING CURVE and DMX SMOOTHING.
- Page 7 Refer to the DMX reference guide and control the light via DMX/RDM console. (For detailed operation please refer to the DMX/RDM console operation manual.) Note: DMX reference guide "PavoTube_T8-7X_DMX_REFERENCE_GUIDE_EN " is downloadable from www.nanlite.com. Please scan the QR code to check or download the latest DMX reference guide.
-
Page 8: Safety Precautions
Operating Instructions 1. Long press button to turn on the fixture. 2. DIM button: Short press DIM button to adjust the intensity in certain intervals of 0%, 20%, 40%, 60%, 80%, 100%. When at 100%, press the DIM button, the intensity will reset at 0%. button: Short press the button to switch modes between CCT and HSI. - Page 9 6. Please do not disassemble the fixture at will to repair by yourself. Qualified professionals should conduct maintenance under the condition of strictly following the operating procedures described in this manual. What’s in the box? Please kindly check. PavoTube T8-7X PavoTube T8-7X×1 USB Type-C Cable×1 User Manual×1...
- Page 10 PavoTube T8-7X 2KIT USB Type-C Cable×2 PavoTube T8-7X×2 Battery capacity: 3.7V/4400mAh Rated Input: 5V/2A PavoTube T8-7X ta=45℃ MADE IN CHINA User Manual×1 Carrying Bag×1 PavoTube T8-7X USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd.
- Page 11 This manual has been compiled according to the rigorous testing for Nanlite products. Product designs are subject to change without prior notice. The latest version of the manual for this product is downloadable at www.nanlite.com.
- Page 12 Version: V5 2023-01-13 +86-754-85751187 +86-754-85300887 service@nanlite.com Dongli Section, Highway 324, Chenghai, Shantou City, Guangdong Province, China www.nanlite.com...
