Front Panel Navigation

page 10
From the front panel, you can change settings for several of the amplifier's integrated signal processing features: Input Y,
Crossover Frequency, EQ, Delay, Limiting, and Stereo/Bridge-Mono. The Icons in the display illuminate to show which
features are currently applied and turned on.
When you power-on the amplifier for the first time, the LCD screen displays "DSP OFF" (no DSP is applied). Subsequent
power-ons display the preset that was active when you last shut off the amplifier.

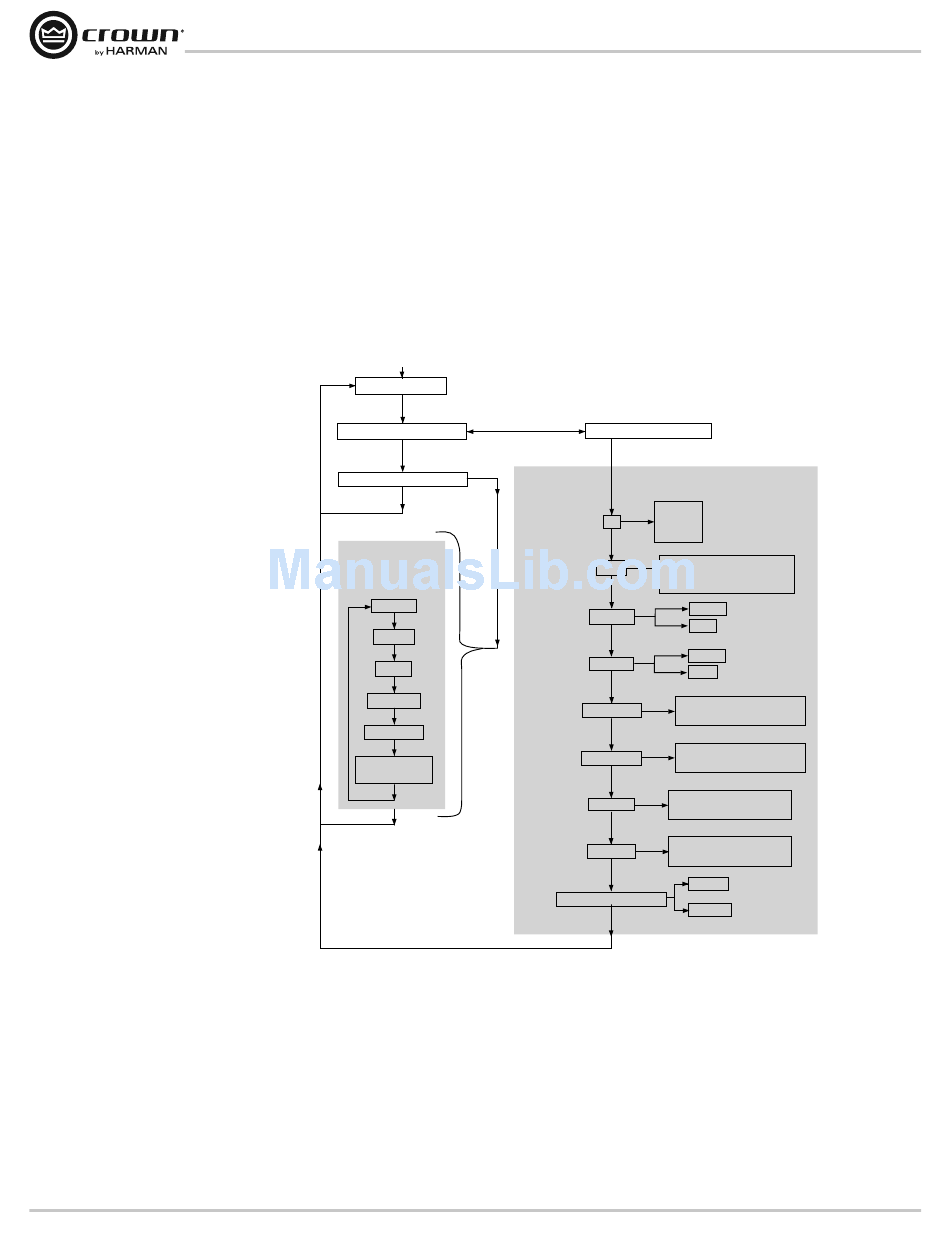

The figure below shows the Menu Tree, which is the navigation path of options in the Menu. It shows how you navigate
through the front panel and which settings are available from the front panel. For full access to all features, it is required that
you hook up the amplifier via USB to a computer and run either HiQnet System Architect™ or Band Manager™ software.
Both are available free via download from the following address: http://hiqnet.harmanpro.com.
Menu Tree
Power-up
CURRENT PRESET
Sel
FLASHING "PRESET" TEXT
Sel
FLASHING "PRESET" ICON
Sel
PRESETS
(TEXT on screen)
DSP OFF
Next
BRIDGE
Next
XOVER
Next
BRG SUBS
Next
SUB SYNTH
Next
USER PRESETS
6-50
Next
Sel
Doing nothing returns you to the
CURRENT PRESET after a timeout delay.
Starting from the CURRENT PRESET,
Sel > Sel > Next goes to presets.
Sel > Next > Sel lets you
configure the DSP processes.
Navigating the LCD Screen Menu: Basics
To step through the Menu options, press the Sel, Next or Prev buttons as described in the menu tree above. Icons
illuminated at the top of the screen show which DSP functions are active with the current preset.
When you are modifying a preset, its icon flashes. You can scroll through its settings with the Prev and Next buttons.
When you see the desired setting, select it by pressing Sel. Doing nothing returns you to the current preset after ten seconds.
In the LCD screen, if the Preset Icon is lit, the current preset is unchanged from its stored settings. If the Custom Icon is lit,
the current preset has been changed from its stored settings.
MENU TREE
Next or Prev
FLASHING "CONFIG" TEXT
Sel
Next
DSP PROCESSES
Next Next
(ICONS on screen)
Y
Sel
Next
XOV
Sel
EQ Ch. 1
Sel
EQ Ch. 2
Sel
Next
DELAY Ch. 1
Sel
Next
DELAY Ch. 2
Sel
Next
LIM Ch. 1
Sel
Next
LIM Ch. 2
Sel
STEREO/BRIDGE MONO
Sel
XTi2 Series Power Amplifiers
Press Next to see
CH1+CH2
each processor's
INPUT Y
options, then press
STEREO
Sel to select an option.
OFF, 90 Hz, 100 Hz, 1200 Hz,
1500 Hz, 2000 Hz, 2-CH SUB,
CUSTOM
Next
EQ OUT
EQ IN
Prev
Next
EQ OUT
EQ IN
Prev
CURRENT, OFF, 50, 40, 30,
20,10, 9, 8, 7, 6, 5, 4, 3, 2, 1
CURRENT, OFF, 50, 40, 30,
20,10, 9, 8, 7, 6, 5, 4, 3, 2, 1
CURRENT, OFF, –0.5 dB,
–1.0 dB, –1.5 dB... –40 dB
CURRENT, OFF, –0.5 dB,
–1.0 dB, –1.5 dB... –40 dB
Next
BRIDGE
STEREO
Prev
