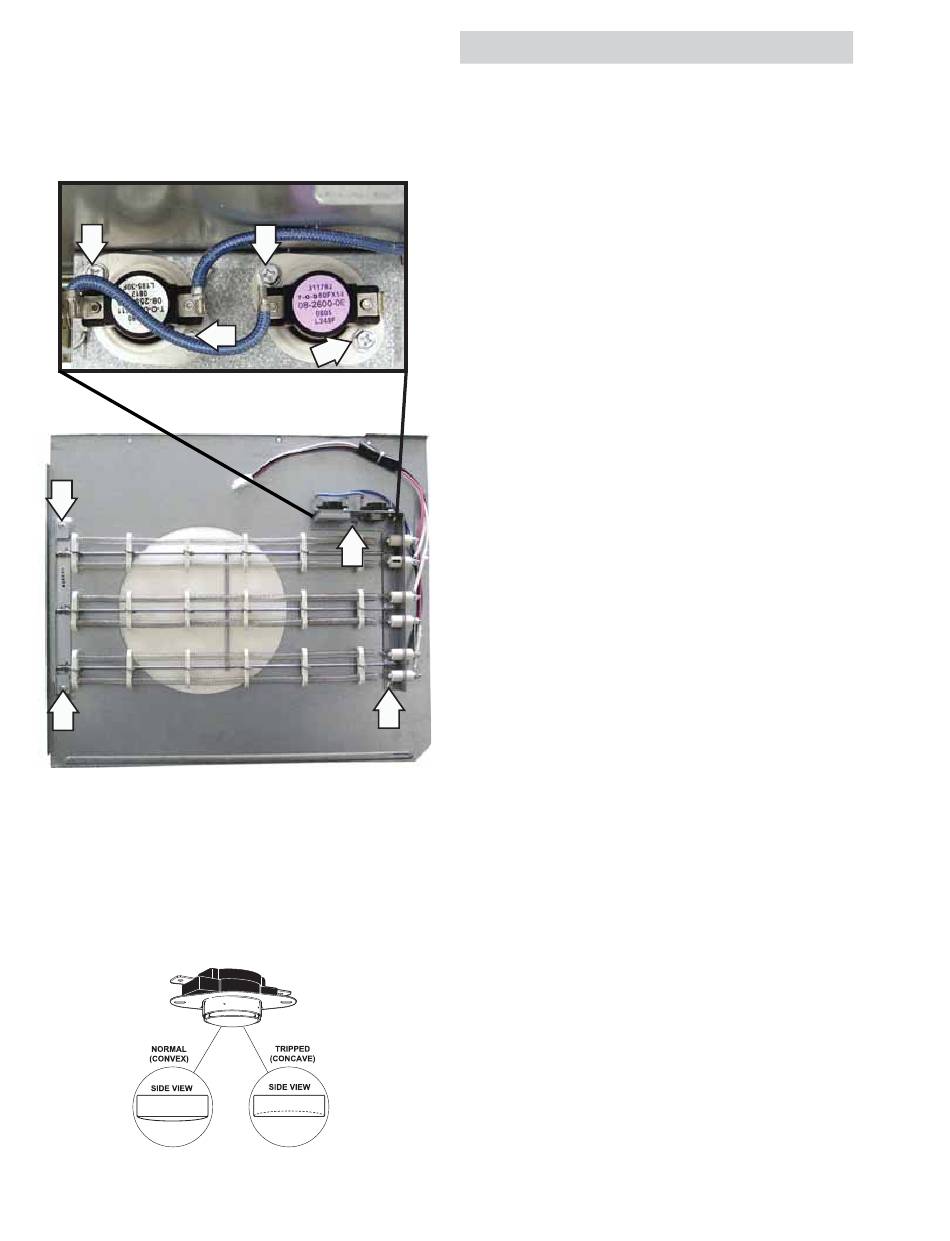

11. Mark and disconnect wires from the heater.
12. Remove the two 1/4-in. hex-head screws that
attach each protector to the heater frame.
13. Remove the 4 Phillips-head screws that attach
the heater to the metal plate.
Caution: Do not touch or press the round face of
the one-shot protector. The round portion of the
one-shot protector is curved out (convex). If the
round face is pushed in (concave), the protector
contacts open and the contacts will not reset.
Pushing in on the round face destroys the
protector.

Indoor Fan Motor

The indoor fan is a permanently lubricated, variable
speed DC motor. Indoor fan speed is selected in the
following manner:
When the green thermostat wire is connected to the
high-speed fan (G) terminal:
• DUCT SWITCH UP = HIGH FAN SPEED
• DUCT SWITCH DOWN = MEDIUM FAN SPEED
When the green thermostat wire is connected to the
low-speed fan (G) terminal:
• DUCT SWITCH UP = MEDIUM FAN SPEED
• DUCT SWITCH DOWN = LOW FAN SPEED
The indoor fan and outdoor fan will operate si-
multaneously under normal operating conditions.
To energize the fans, press the FAN button on the
thermostat. When fan ON mode is selected, the fans
will run continuously, independent of the compres-
sor or heaters. Selecting AUTO on the thermostat
will cause the fans to automatically cycle on and off
with the compressor or heaters. The fans will always
run when the compressor or heaters are operat-
ing. They will start before compressor or heater
operation, and will stop after compressor or heater
operation has ended. The fans can also be set to
run continually, regardless of thermostat setting, by
placing the CONST FAN dip switch in the (UP) posi-
tion. (See

Controls-Dip Switches

Note: If the indoor fan is inoperative, see No Fan
Operation on page 42.
