- Page 1 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi PA,15022 PRIMUS V CONTROLLER Operations & Safety Manual UM1120 Rev 3.0 Page 1 of 28 7/19/2023...
-
Page 2: Table Of Contents
Table of Contents Warranty & Disclaimer Information ......................3 Warranty ............................... 3 Warnings and Cautions ..........................3 Primus V Controller System Overview ......................4 Technical Specifications ..........................6 Installation and Wiring Instructions ......................7 Factory Default Settings ..........................20 4-20mA Calibration ............................. 21 Serial Setup .............................. -
Page 3: Warranty & Disclaimer Information
• Replacing inoperative or questionable parts or units Warranty Conspec Controls Inc. provides warranty service for one (1) year from the shipping date on all electronic and mechanical components. Warranty service is limited to defects in materials and workmanship on units which fail under normal use. Conspec will repair or replace any unit found to have failed due to defects in materials or workmanship. -
Page 4: Primus V Controller System Overview

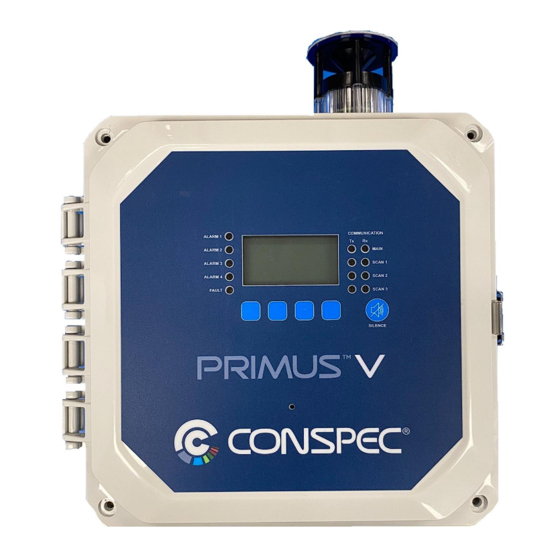

Primus V Controller System Overview The Primus V Controller is a product which complements the Optio V gas monitor. The Primus V has the ability to gather and display real time data from Optio V units. This controller has optional 24Vac/24Vdc input power with a maximum power consumption of 2.5A at maximum load. - Page 5 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi PA,15022 Purpose: The Primus V Controller is a product to be used in an ordinary location to remotely monitor and manage connected multi-gas monitors. It is intended to connect to the Optio V monitor and can also be connected to a centralized control and automation systems.
-
Page 6: Technical Specifications
6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 Technical Specifications Power Requirements Network Capacity • 16-24 Vac, @ 50/60Hz • Up to 96 multi-gas monitors • 12-24 Vdc • Each multi-gas monitor can have up to 6 • Max 2.5A @ 24Vac/Vdc at maximum load. sensors, 6 relays, 6 analog inputs and 2 local 4-20mA outputs Environmental... -
Page 7: Installation And Wiring Instructions
Mounting Instructions: The Primus V enclosure comes fully built with 4 mounting feet, for quick and easy installation. Mounting directly to the wall or uni-strut are common practices. Use steel or stainless steel 5/16”... - Page 8 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 The green dotted area in the block diagram below is the designated area where the user is allowed to drill holes for the purpose of making connections to any of the internal available ports on the PVC board. Appropriately sized cable glands are to be used to reduce opening size.
- Page 9 8. Inspect to make sure no exposed wire has contact with any other wiring terminals 9. RC type suppressors are strongly recommended on all contactors 10. The power supply to the Primus V must have a master disconnect and should be fused. Input power wiring options: Max 24Vac/Vdc...
- Page 10 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 The Primus V controller is cable of handling multiple different Input and output types. Below is a field wiring for each option: OUT1 & OUT2 24VDC/VAC SD card Port 1 S/H 3.3V...
- Page 11 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 System wiring using relay outputs With this wiring configuration, the fan contactor coil below becomes energized during an alarm state or power failure. Due to the fail-safe operation of the on-board relays. Power Source Contactor...
- Page 12 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 With this wiring configuration, the fan contactor coil below becomes de-energized during an alarm state or power failure and is energized under normal operation. Power Source Contactor Coil UM1120 Rev x3.0 Page 12 of 28 7/19/2023...
- Page 13 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 System wiring using Ethernet/POE COM card Ethernet Switch Internet Modem (optional) Place Ethernet/POE Com Card (T1517) here. UM1120 Rev x3.0 Page 13 of 28 7/19/2023...
- Page 14 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 System wiring for RS485 COM card Place RS485 COM card (T1469) here UM1120 Rev x3.0 Page 14 of 28 7/19/2023...
- Page 15 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 System wiring using BACNET Tophat Switch Modem UM1120 Rev x3.0 Page 15 of 28 7/19/2023...
- Page 16 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 System wiring using Modbus RTU RS485 communication Optio V Optio V … Optio V Optio V … Optio V Optio V … UM1120 Rev x3.0 Page 16 of 28 7/19/2023...
- Page 17 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 System wiring for 4-20mA Output control #2 control #1 UM1120 Rev x3.0 Page 17 of 28 7/19/2023...
- Page 18 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 System wiring for SD card SD_CS SD_MOSI SD_SCK SD_MISO SD_CD Place optional SD Card (T1605) here. UM1120 Rev x3.0 Page 18 of 28 7/19/2023...
- Page 19 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 System wiring for Strobe and Horn Conspec Low Power Strobe and Horn Note: Value of Vin is dependent on the Input Power. If user applies 24Vdc to V+ the value of Party Strobe and Horn Vin will be approximately 23Vdc.
-
Page 20: Factory Default Settings
6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 Factory Default Settings Relay Settings: Relay 1 : Open Relay 2: Open Relay 3: Open Drive: Standard (NO) Drive: Standard (NO) Drive: Standard (NO) Silence: Disabled Silence: Disabled Silence: Disabled Rly Off:T = 0 Rly Off: T = 0 Rly Off: T=0 Relay 4 : Open... -
Page 21: 4-20Ma Calibration
6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 4-20mA Calibration The first screen will ask for a password entry: ENTER PASSWORD The default admin password is “321”. (It is recommended that only users with admin rights have access to this password). Once the password has been entered successfully, select the “ 4-20mA Cal”... -
Page 22: Serial Setup
Set Rescans: 0-10. Number of cycles. h. Set Timeout: 50 – 5000 ms. i. Set Gap Time: minimum depends on selected baud rate. If using Modbus communication, please contact Conspec Controls for full register map 1-800-487-8450 UM1120 Rev x3.0 Page 22 of 28... -
Page 23: Pvc Setup
PVC Setup”. The PVC Setup llows the user to make the following changes relating to the Primus V Controller. a. Local Auto Alarm: Will auto alarm if any scanned device is in alarm 1-4 (Enable/Disable). b. Pause PVC Scan: Pauses scanning and logic. Max: 240 mins (4 hours). 0 = Resume c. -
Page 24: Main Screen/Review Screens
6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 Main Screen/Review Screens Main Screen: Once the warmup timer clears, the display will show the “Main Screen”: 1. Address: Modbus address of the monitor 2. Status: Indicates status of the device, which are listed in the following table: P1-3 Working normally N1-3... -
Page 25: Maintenance And Repairs
9. Logged Events – Displays total events, number of logs waiting to be saved and time till next save. Maintenance and Repairs This Microcontroller requires evaluation once/twice a year to ensure accuracy. The Primus V controller should be visually and operationally inspected by following the below steps: Visual inspection of exterior of the panel •... -
Page 26: Certifications
Be sure the buzzer and strobe and horn do not become blocked by liquids. Service/Repairs Any Primus V controller found to be defective or questionable should be returned to Conspec Controls for evaluation and repair. Monitors must be repaired by Conspec Controls or their representatives. Conspec requires any returned equipment to first be issued a Return Authorization Number (R.A.#) by calling Conspec... -
Page 27: Replacement Parts And Manufacturer Part Numbers
6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 Replacement Parts and Manufacturer Part Numbers Primus V Controller (Main board): T1575 Ethernet COM card: T1517 Strobe and Horn: T1481 Bacnet Tophat card: T1587 SD Adapter: T1605 RS485 COM card (Non I.S.): T1469 UM1120 Rev x3.0... - Page 28 6 Guttman Boulevard, Charleroi Industrial Park, Charleroi Pennsylvania15022 Wiring Schematic: UM1120 Rev x3.0 Page 28 of 28 7/19/2023...
