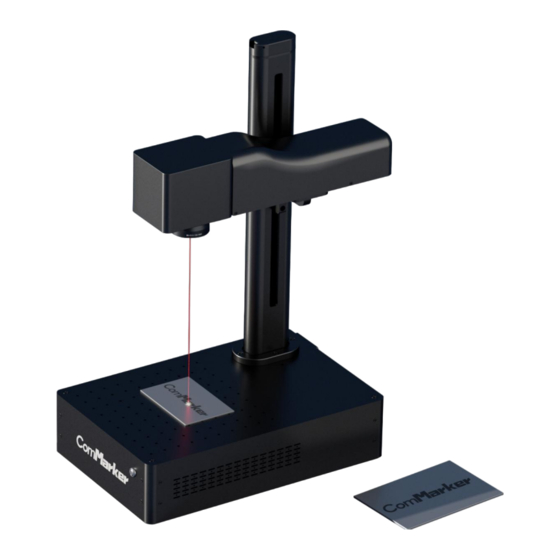

ComMarker B3 Manual

Laser marking machine
Hide thumbs

Advertisement

Quick Links

Download this manual
Laser Marking Machine
B3
Manual

Advertisement

loading

Summary of Contents for ComMarker B3

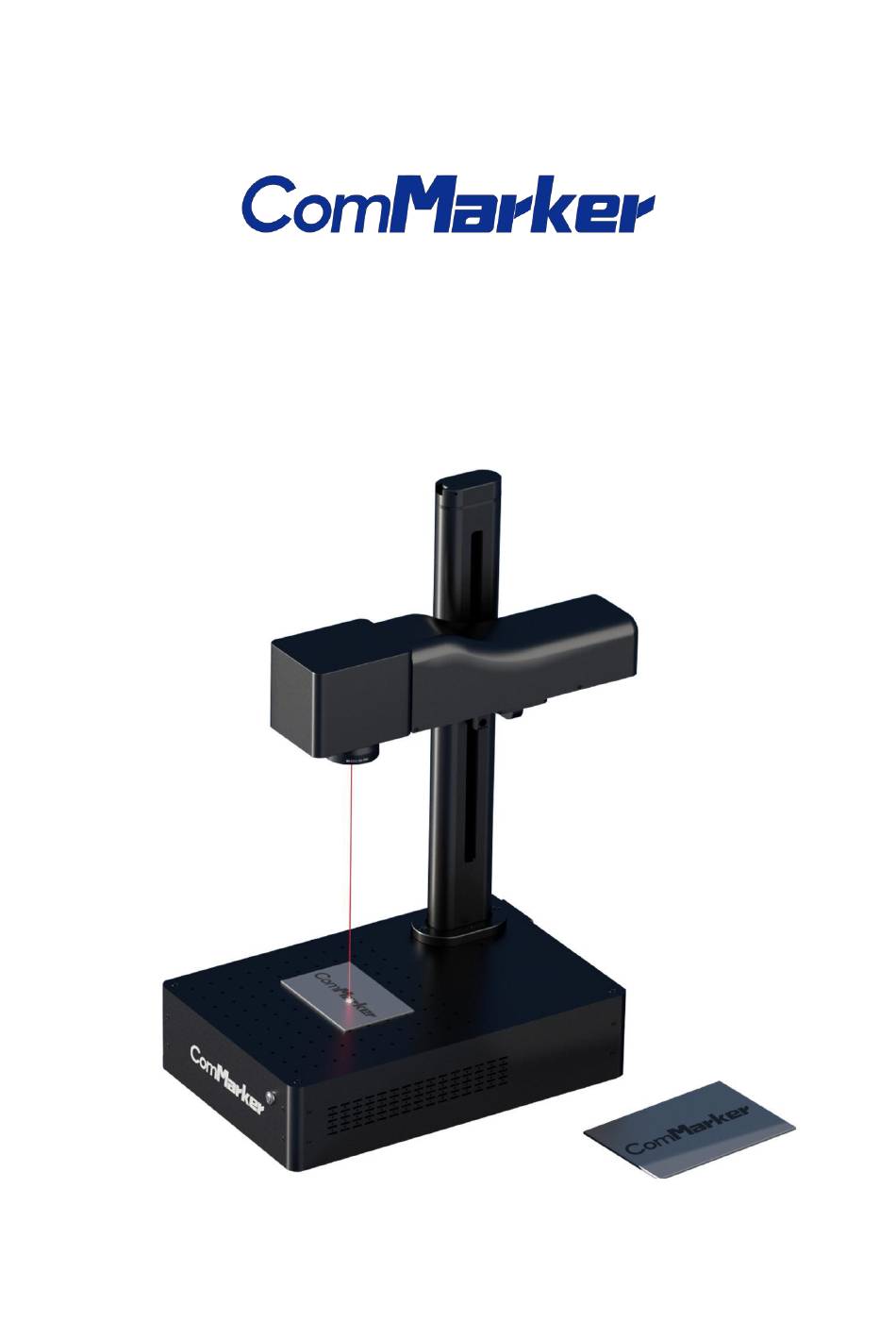

  • Page 1 Laser Marking Machine Manual...

  • Page 2: Security Statement

    Security Statement Before using the laser engraving machine, please read this safety guide carefully. It mentions situations that require special attention and includes warnings of unsafe practices that can cause damage to your property or even endanger your personal safety. 1 Laser Safety •...

  • Page 3: Product Structure

    Product Structure...
  • Page 4 Assembly of Machine Place the parts on the table 2. Put the lifting pole upright 3. Fasten the pole with the screws 4. Put the laser head on the supporting shelf of the pole 5. Fasten the screws to fix the laser head 6.
  • Page 5 Operation Instructions 1. Install the driver Note: please conduct the following operation before installing the driver 1) The machine is on; (Notice, Pls take off the lens) 2) Data cable connected; 3) Copy and paste the files of the USB disk to the computer desktop; 1.Right-click "this PC", click "Manage"...
  • Page 6 5.Find the corresponding file with window system in the 6.Click "Install" USB drive, click OK 7.Click “finish” if it is successful 8.It will display "BJJCZ Device" in Device Manager Noted: *It is recommended to copy and paste the files of the USB disk to the computer desktop or other computer disks.
  • Page 7 2. Open the software Open the USB folder, open the "EZCAD for ComMarker" folder, and select the 150mm folder if the lens is 150mm. Open the software “EZCAD2”. You can enter "text", import "picture" or "vector file" as shown in the figure below. It is recommended to select the text to test first.
  • Page 8 Press up or down button to lift or lower the laser head until the three red light point overlap, which is the best focal point. The measuring focal length of this machine is ___________ mm, and the measuring distance is the length from the bottom line of the laser head to the surface of the engraving material.
  • Page 9 3.Turn on the machine, connect the computer with the 4. Import the “TEXT” for testing, select the default machine parameters, and tick the “continuous part” button. 5. Press “red (F1)” to ensure it’ll mark on the test material. 6. Meanwhile, lift or lower the laser head and observe the Click “mark”, and the laser would be continuously marking obvious change of intensity of the laser beam.
  • Page 10 5.Marking test Place the test engraving material on the machine. Click "Red (F1)", the area shown by the red light is the marking area. Tick “Default Parameters". Click "Mark (F2)" to start marking. Parameters Voltage 110V Laser Type: Fiber 70mmx70mm/ 110mm x 110mm/ 150mmx150mm/ 175mmx175mm/ Working Area 200mm x 200mm Wavelength...
  • Page 11 MOPA Parameters EZCAD: 1. click F3(param) 2.field--Galvo2=x--Galvo Center--ok 3.Laser Control-fiber--serial(IPJ_YLPM)-OK 4.Frequency 30--Q Plus Width300--Apply...
  • Page 12 Accessories...
  • Page 13 Instruction for Rotary Device Physical Operation (Rotary Axis) 1. Connect the machine with the rotary Axis as follow, and place the rotary on the work table 2. Clamp the cylinder object by using the anticlockwise mode, or support a ring by using clockwise mode. 3.
  • Page 14 Physical Operation (Rotary chuck) 1. Connect the machine with the rotary chuck , and place the rotary with right angle as follow 2. Clamp the cylinder object by using the positive mode or negative mode as it shows 3. Place the rotary chuck, elevating it with a support if necessary for the machine to mark at the right focus point...
  • Page 15 Physical Operation (Rotary roller) 1. Connect the machine with the rotary roller 2. Place the cylinder object on the roller...
  • Page 16 Software operation Text Marking 1. Input text, click “Apply”, and then click “center” button. 2. Click on the "H" Button and tick “Enable”, and then click OK. Note: Do not tick “Mark Contour” or “ All Cala”...
  • Page 17 3. Select “Laser” from the menu, Choose “Rotate TextMark”, which is more suitable for marking simple text. 4. Click “Param (F3)”, set the "configuration markcfg0" (1) Tick “Enable” (2) Input the pulses per round number “12800” (3) Adjust the scale compensation if necessary, the number of this parameter will affect the spacing between the engraved texts (4)Tick “reverse”...
  • Page 18 5. Click “Red (F1)” to preview, the red light area indicates the first letter of first line. Press “ESC” on key board to exit, change the location of the rotary chuck if necessary. Click “Mark” Note: make sure the preview red rectangle on the top of the cylinder and the machine will engrave on level surface. Graphics Marking 1.
  • Page 19 2. Select “Rotary Mark” in the menu 2. Tick “Mark by split line”. Input diameter number according to the object diameter. And set the middle lines 1) Double click to create line 2) Right click to delete line 3) Drag with mouse to move the line Note: make sure the diameter number consistent with the object diameter.
  • Page 20 3. Or, instead of following step 4, simply tick “Force all split”, Input diameter number and change the “Split Size” 4. Click “Param (F3)” and set the parameters (1) Tick “Enable” (2) Input the pulses per round number “12800” (3) Tick “reverse” if you want to change the marking orders of the words (4) Select the appropriate axis X or Y according to the placement direction of the roller (5) Click “Rotate Axis”...
  • Page 21 5. Click “Red (F1)” to preview, the red light area indicates the first part divided by split line. Press “ESC” on key board to exit, change the location of the rotary if necessary. Click “Mark”...
  • Page 22 --->Step 4 Adjust the focus 3. Field lens 9 points calibration. (1) Open the USB folder, open the "EZCAD for ComMarker" folder, and select the 200mm folder. Open the software “CorFile2” (the software EZCAD need to be closed first).
  • Page 23 (3) Stick the 2 pieces of paperboard together on the back cover with tape and put it on the work table. Note: 1) Please make sure the paperboard flat on the table (4) Click “F3” mark 9 points rectangle, and it will mark the following graph on the right. (5) Click the button on the top-right corner to change the pattern until it matches the marking result on the paperboard...
  • Page 24 Note ： Make sure the ruler is absolutely horizontal or vertical and measuring lines goes through the 9 points when measuring. (7) Click "F6” to generate “calibration file”. The following dialog box appears, please specify a file name for the file, otherwise it will fail to save, such as "200 ComMarker". Be sure to remember the file directory location...
  • Page 25 (8) Click "F7”to verify calibration, open the calibration file just saved. And click “F8” to mark the calibrated rectangle. Note: If it is a regular rectangle like the picture on the left, it proves the success of the correction. If the shape of the picture on the right is seriously deformed, it needs to be recalibrated.
  • Page 26 Parameters for marking a photo Please open the software in the file “Software for engraving photos” before everything. 1. Input the parameters as below, which is forB4 20W with marking area 110x110mm on stainless steel. Note: After importing the picture, you can fine-tune the contrast and brightness of the picture to make the picture clearer, these parameters will affect the engraving effect.
  • Page 27 Parameters for marking different colors Color Picture Speed Power Frequency Line Space Light Grey 4000 0.05 White 1000 0.06 Grey 1000 0.06 Black 0.05 Dark Yellow 1000 0.05 Note: it is only parameter suggestions on stainless steel for reference. The results may vary with the size of the file, materials, focus length etc.
  • Page 28 Lightburn icon to the Applications folder y-before-you-buy 3.Copy the folder “EZCAD for ComMarker B4” from the USB 4. A device window will pop out if the software is open the to the desktop first time, click “Create Manually”, Select “JCZFiber”...
  • Page 29 11. Go to “Basic Settings” from “Device setting” button, click 12. Change the setting of Freq “Min 20” and “Max 200”. “Load file”, Select “EZCAD ComMarker Switch on “Galvo 2”. And it is ready to control the machine B4”--->“110mm”, Choose file “JCZ11.cor”, Click “OK” with Lightburn software.
  • Page 30 Lightburn Operation Tutorial (For Window system) Refer to the operation on MacOS, please don’t forget to install the driver when installing Lightburn software as the following picture shows:...
  • Page 31 Q1: The driver installation was unsuccessful? *Please make sure to use the copyrighted window system, if not, please replace it with another computer *Please try to replace a data cable, it is recommended to use a magnetic proof cable *It may be a computer port problem or a computer board connection problem. The front USB ports of a desktop case are easily damaged.
  • Page 32 Q3: The USB flash drive is damaged and cannot be opened *Please visit ComMarker's official website to download the driver and software. *Contact after-sales team by email. Q4: The red light preview works with a rectangle, but there is no mark or the marks are very light *Please adjust the focal length;...
  • Page 33 *If it still doesn't work, please contact after-sales team by email. Q7: How to change the physical marking area in the software? *Click “Parameter (F3)", select "Field". Input numbers in “Offset X", "Offset Y" or “Angle “according to the actual deviation number based on the measurement with a ruler.
  • Page 34 Q8: Some of the engraving areas are clear and other parts are light *Please make sure that the field lens is clean, if the field lens is dirty, the laser light transmission is uneven. Please clean the field lens carefully. *The front and rear of the optical path are not on horizontal level, because the 4 screws connecting the column with the optical path and the 4 screws connecting the machine table are not fixed properly, please loosen them again and fix again.
  • Page 35 Q10: The preview red light is not clear, or there is even no preview red light emits *Remove the laser head cover firstly. *Adjust the red light source manually, move and fix again, or disassemble and reinstall. Q11: Nothing displays on canvas board when importing text or picture *Please click the practical center button, the picture and text are in the center of the canvas.
  • Page 36 *If the field lens is polluted too seriously, a new replacement field lens might be needed. Q14: Which version of Lightburn software is right for ComMarker B3? *Please buy “Add Galvo devices to existing license key” if you bought the software for gantry type. Please choose the “Lightburn- Galvo license key if you haven’t bought any licence”.

  • Page 37: Customer Service

    Customer Service: For more video and supportive materials,please visit our official website at: www.commarker.com For Laser Engraver technical support and service please email: support@commarker.com Manufacturer: Shanghai Diaotool Co., Ltd.
