Summary of Contents for CDA VP400

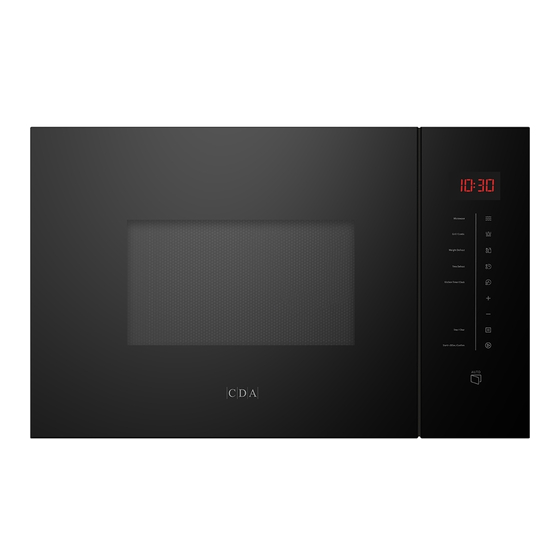

- Page 1 VP400 Built-in Microwave Oven & Combination Grill Installation, use and maintenance...
- Page 2 - (17) Speed cooking - (17) The Child-lock function 18 to 19 Care and Maintenance - (18) Cleaning information - (19) If your appliance is not working - (19) Contacting CDA Troubleshooting 20 to 23 Installation - Installation information - (23) Specifications...
- Page 3 Appliance Information Please enter the details on the appliance rating plate below for reference in case you need to contact CDA in the event of a fault. Appliance model Serial number Instruction Manual | 3...
- Page 4 EU Declarations of Conformity This appliance has been designed and manufactured to comply with all applicable UK and EU legislation, including: Low voltage Directive, 2014/35/EU Electromagnetic compatibility Directive, 2014/30/EU RoHS Directive, 2011/65/EU Parts intended to come into contact with food, EEC/89/109.4 ...
- Page 5 Important Read the user instructions carefully before using the oven for the first time. Follow the instructions for first use of the oven. Clean the oven regularly. Remove spills as soon as they occur. Always use oven gloves when removing trays from the ...
- Page 6 Do not perform maintenance or cleaning of the oven without first switching off the mains electrical supply. If the oven has been used recently, please allow it to cool. Do not use abrasive cleaners or powders that will scratch ...
- Page 7 WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. Only use utensils suitable for use in microwave ovens ...
- Page 8 Do not use the oven cavity for storage purposes. Do not store items such as bread, cookies, books etc. inside the oven. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
- Page 9 Always have the glass tray, roller arms, coupling and roller track in place when operating the microwave oven. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other non-food items, or for sterilizing purposes.
- Page 10 Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to minimise the risk of eruptive boiling when a spoon is placed in the food / liquid or a stock cube is added.
-
Page 11: Setting Up Your Oven
Setting Up Your Oven Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction manual Emergency suction door opener ... - Page 12 First Use of the Microwave First Use Before using the oven for the first time, we recommend that you clean it with soapy water, rinse carefully and then heat the appliance on grill at maximum temperature for 15 minutes. A slightly unpleasant smell may be produced as the grease residue left over from the manufacturing process is burnt off.
-
Page 13: Using Your Oven
Using Your Oven Microwave Cooking 1. Press the [Microwave] key once – ‘P100’ will be shown in the display. 2. Press [Microwave] repeatedly, or press [+] or [-] to select the power – ‘P100’, ‘P80’, ‘P50’, ‘P30’ and ‘P10’ will display in each order. 3. - Page 14 If, after setting a function the [Start / +30sec. / Confirm] key is not pressed, the function will be cancelled. Grill or Combi. Cooking 1. Press the [Grill / Combi] key once – ‘G’ will be displayed. Pressing the key repeatedly will cycle through the options, ‘G’, ‘C-1’...
- Page 15 Note that if half the grill time passes, the oven will beep twice – this is normal. To achieve the best grill performance, you should turn the food over, close the door and then press the [Start / 30 sec / Confirm] key to continue cooking.
- Page 16 The Auto Menu 1. In standby, press [+] repeatedly to choose the desired menu item. 2. Press the [Start / +30 Sec./ Confirm] key to confirm the menu you have chosen. 3. Press [+] or [-] to choose the weight of the food. 4.
- Page 17 Menu Weight Power 1 cup (approx. 120ml) Beverages 2 cups (approx. 240ml) Microwave 100% 3 cups (approx. 360ml) Pop corn Microwave 100% 100g Speed Cooking 1. In standby mode, press the [Start / +30 Sec./ Confirm] key to cook with 100% power level for 30 seconds.
-
Page 18: Care And Maintenance
Proprietary stainless steel cleaners are available. We recommend the CDA E-Cloth which has been designed to prolong the finish of your appliance and is available from the CDA Sales team. Cleaning the inside of the oven cavity The oven should always be cleaned after use when it has cooled down. - Page 19 2. Check that the mains supply has not been switched off. 3. Check that the fuse in the spur has not blown. In the event of a fault with the appliance, please contact CDA Customer Care and advise of any fault code shown on the display.
-
Page 20: Troubleshooting
Check the fuse in the plug. If the fault persists, unplug the Blown fuse in the plug oven and contact CDA The oven cannot be Customer Care started Check the socket by plugging in another Faulty power supply to the appliance. -
Page 21: Installation
Installation Important The appliance should be installed in a tall unit (open at the rear) with the appropriate dimensions for recessed installation. (Fig. 1). Blocking the intake and/or outlet openings can damage the oven. Place the oven as far away from radios and TVs as possible. ... - Page 22 Fitted Units The unit into which the appliance is to be installed must not have a back panel at the rear of the cabinet. The minimum installation height above the floor is 850mm.# Ventilation slots and intakes must not be covered. ...
- Page 23 Fig. 4 Fig. 5 Min. 3mm Specifications Rated Voltage 230Vac, 50Hz Microwave input 1450W Microwave output 900W Grill power 1000W Instruction Manual | 23...
-
Page 24: Electrical Information
Electrical Information WARNING! This appliance must be earthed. Fig. 6 The mains lead of this appliance has been fitted with a BS 1363A 13 Amp fused plug. To change a fuse in this type of plug, follow the steps below: 1. - Page 25 N.B. Ensure that the plug socket is situated in an easily accessible place after installation. E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice. Instruction Manual | 25...
- Page 26 Notes 26 | Instruction Manual...
- Page 27 The CDA Group Harby Road Langar Nottinghamshire NG13 9HY Sales Department Phone: 01949 862010 Email: sales@cda..co.uk Customer Care Phone: 01949 862012 Web: www.cda.co.uk/customer-care/ Instruction Manual | 27...
