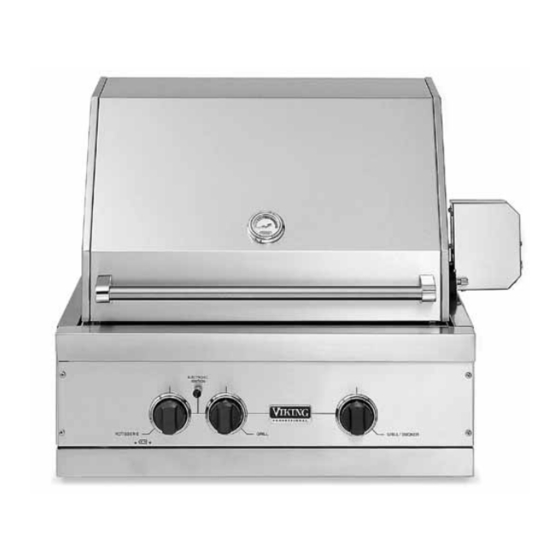

Viking VGBQ030-2T Installation Manual
T-series and e-series outdoor gas grills
Hide thumbs
Also See for VGBQ030-2T:
- Specification sheet (8 pages) ,
- Installation instructions manual (6 pages) ,
- Service manual (30 pages)
Related Manuals for Viking VGBQ030-2T
Summary of Contents for Viking VGBQ030-2T
- Page 1 Viking Installation Guide Outdoor Gas Grills Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA...
- Page 2 •Keep grill area clear and free from combustible materials, gasoline, and other flammable vapors. •When the outdoor grill is not in use, the gas supply must be turned off at the LP gas supply cylinder. •The pressure regulator and hose assembly supplied with the outdoor grill must be used.
- Page 3 Requirements LP/Propane: Electrical 9 volt DC battery for electronic ignition Requirements 120VAC/60HZ - 24” (61.0 cm) power cord supply cord with 3-prong grounded plug attached to rotisserie motor Grill Burner Rating TruSear Burner Rating (if applicable) Smoker Burner 12,500 Nat./10,500 LP BTU Rating ( ( I I f f a a p p p p l l i i c c a a b b l l e e ) ) ( 3.7 kW Nat./3.1 kW LP)
- Page 4 Requirements LP/Propane: Electrical 120VAC/60HZ - 3’ ( 91.4 cm) power cord supply cord with 3-prong grounded plug attached to grill Requirements 120VAC/60HZ - 24” (61.0 cm) power cord supply cord with 3-prong grounded plug attached to rotisserie motor Maximum Amp Usage 2.1 amps...
- Page 5 The gas grill and its individual shut-off valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 PSIG (3.5 kPa). The gas grill must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of that system at test pressures equal to or less than 1/2 psi (3.5 kPa).
-
Page 6: Regulator Assembly
Check with your local gas utility company or with local codes for instructions on installing gas supply lines. Be sure to check on type and size of run and how deep to bury the lines. If the gas line is too small, the grill will not function properly. - Page 7 Check with your local gas utility company or with local codes for instructions on installing gas supply lines. Be sure to check on type and size of run and how deep to bury the lines. If the gas line is too small, the grill will not function properly.
- Page 8 LP/Propane tank main valve “OFF” after each use and during transport of the tank or unit. First connect the regulator to the grill unit by screwing the 3/8” flare coupling to the 3/8” flare adapter.
- Page 9 Do not attempt to repair the cylinder valve if it should become damaged. The cylinder must be replaced. 8. If you are unable to stop a leak, shut off the gas supply at the cylinder valve. Remove the cylinder from the grill. Call an authorized gas appliance service technician or LP/Propane gas dealer.
- Page 10 The grill is not to be located under overhead unprotected combustible construction. 2. A minimum of 3” (7.6 cm) clearance from the back of the grill with a canopy and a minimum of 6” (15.2 cm) from the back of the grill without a canopy to non-combustible construction is required for the purpose of allowing the lid to open fully and for proper ventilation.
- Page 11 6” (15.2 cm) 10 9/16” (26.8 cm) M M O O D D E E L L V V G G B B Q Q 3 3 0 0 0 0 T T / / 0 0 3 3 0 0 2 2 T T V V G G B B Q Q 3 3 0 0 0 0 E E V V G G I I Q Q 3 3 0 0 0 0 T T V V G G I I Q Q 3 3 0 0 0 0 E E...
- Page 12 C C U U T T O O U U T T D D I I M M E E N N S S I I O O N N S S * * * * G G a a s s I I n n l l e e t t a a n n d d p p o o w w e e r r c c o o r r d d s s u u p p p p l l y y o o p p e e n n i i n n g g c c a a n n b b e e l l o o c c a a t t e e d d a a n n y y w w h h e e r r e e w w i i t t h h i i n n 5 5 ”...
- Page 13 2. If the flame is noisy and lifting away from the burner, turn the air shutter clockwise to reduce the amount of air to the burner. Once adjusted, turn the burner off, tighten the set screw on the air shutter, replace the valve panel for the grill burners and the grate support, burner bowls, and grates for the side burners.
-
Page 14: Air Shutters
F F i i g g . . 3 3 S S I I D D E E B B U U R R N N E E R R S S ( ( I I f f a a p p p p l l i i c c a a b b l l e e ) ) Air Shutters Orifice F F i i g g . - Page 15 With the skewer pushed as far in as possible, the grooved skewer bushing should rest on the left side bracket.
- Page 16 Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For more product information, call 1-888-VIKING1 (845-4641) or visit the Viking Web site at vikingrange.com (PS0606VR) F20054H...
