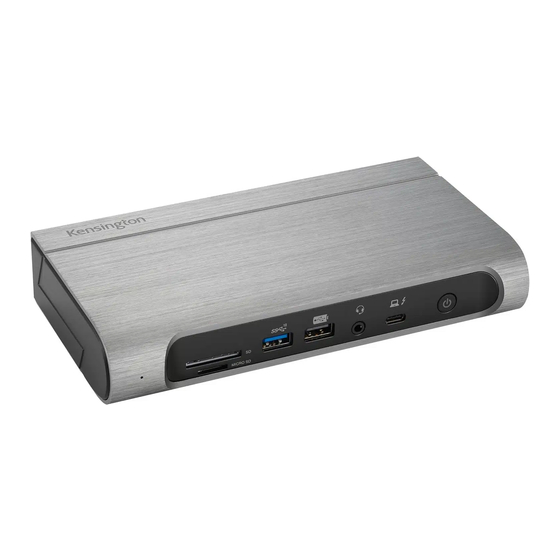

Kensington SD5800T Thunderbolt™ 4 and USB4 Quad Video Docking Station.
Register your docking station at kensington.com/register

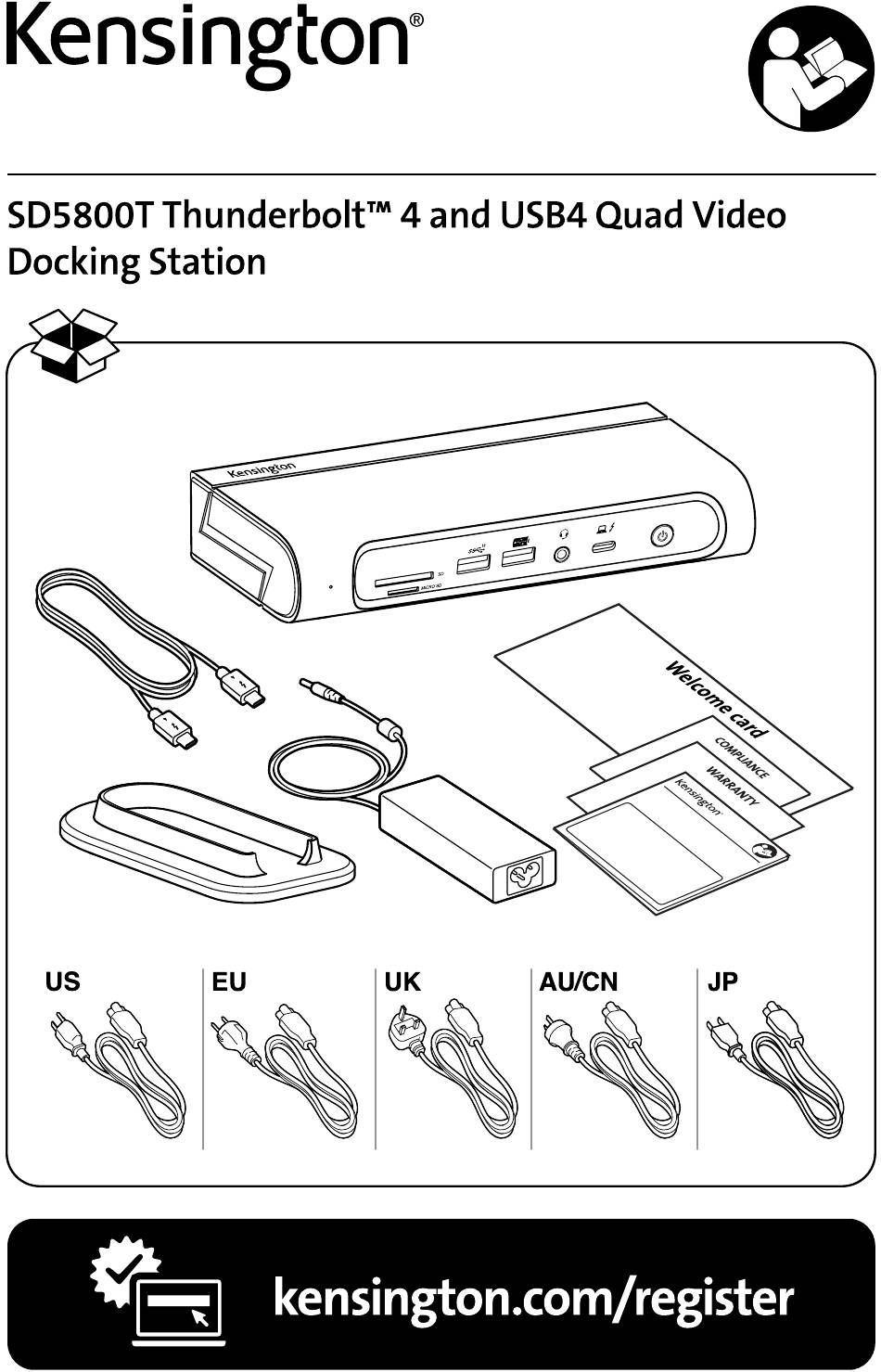

Inside the Box.
One SD5800T dock.
One Thunderbolt cable.
One SD5800T dock stand.
One DC power adapter.
One welcome card.
One warranty card.
One compliance card.
One instruction guide.
One power cord for the DC power adapter.
