Viking CC-4 Technical Practice

Technical Practice
Features
• Logs call statistics on 1 to 4 lines
• Compatible with analog loop or ground start
lines as well as analog PABX/KSU stations
• Data may be retrieved at any time
• Displays the following statistics for all lines as
well as individual lines:
1. Total number of incoming calls
2. Total number of outgoing calls
3. Total in use time for incoming calls
4. Total in use time for outgoing calls
• One year warranty
Made in the U.S.A.
E-mail...Sales@VikingElectronics.com
Telecommunication Peripheral Products
Capture Accurate Line Activity
Statistics on 1 to 4 Analog Lines
http://www.VikingElectronics.com
The CC-4 provides the data needed to make
important decisions concerning equipment,
staffing and the number of telephone lines
required.
The CC-4 monitors 1 to 4 telephone lines and
provides statistics on the total number of
incoming calls, the total number of outgoing
calls and the total time for both incoming and
outgoing calls.
available for individual lines.

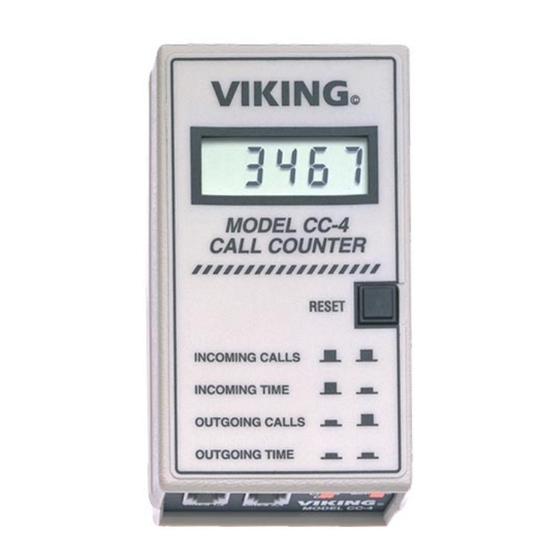

A large liquid crystal display (LCD) is provided
to view all available data.
Applications
• Traffic studies to determine the need to add or
reduce telephone lines or personnel
• Productivity of telemarketing personnel
• Central office and other voice mail or answering
service usage
Specifications
Power: 120V AC UL listed power supply provided
Dimensions: 120mm x 70mm x 36mm (4.7" x 2.8" x 1.4")
Shipping Weight: .9 kg (2 lb)
Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95%
non-condensing humidity
Display: 0.4" high, 4.5 digits, liquid crystal display
Connections: (2) RJ14 jacks and (2) RJ14 plugs
Sales...(715) 386-8861
CC-4
4 Line Call Counter
July 21, 1998
In addition, data is also
