Installation, Operation and Maintenance Manual

Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,

operate or maintain the product described. Protect yourself and others by observing all safety information. Failure

to comply with these instructions will result in voiding of the product warranty and may result in personal injury

and/or property damage.

Table of Contents

Windband to Nozzle

Document 1016006 . . . . . . . . . . . . . . . . . . 2

Dilution Nozzle to Fan

Document 1016008 . . . . . . . . . . . . . . . . . . 3

Inline Silencer

Document 1016009 . . . . . . . . . . . . . . . . . . 4

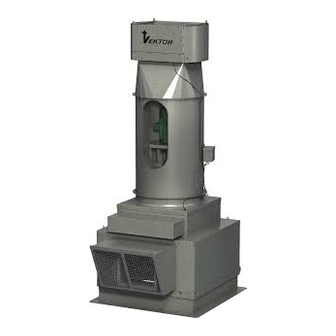

Model Vektor-MD

Fastener Kits

Vektor-MD Fastener Kits

Page 1 Document 1016008 ....3 Inline Silencer Document 1016009 ....4 Vektor-MD Fastener Kits ®...
Page 2 Use Document #1016006 with fastener kits 879425 and 879426. These kits are to be used with the Vektor-MD model. The fasteners contained within the kit are to be used to attach the windband to the Vektor-MD nozzle. Use the images located within this document to locate the position of the fasteners on the unit.
Page 3 Use Document #1016008 with fastener kit 879429. This kit is to be used with the Vektor-MD model. The fasteners contained within the kit are to be used to attach the Vektor-MD dilution style nozzle to the fan body. Use the images located within this document to locate the position of the fasteners on the unit.
Page 4 Use Document #1016009 with fastener kits 879430 and 879431. These kits are to be used with the Vektor-MD model. The fasteners contained within the kit are to be used to attach the silencer to the Vektor-MD dilution style nozzle, a silencer to the blower housing, or a silencer to a stack extension. Systems supplied with inline discharge silencers always have the nozzle section ship separate.
