1. Technical Specifications, Connections and Chassis Overview

Index:
1. Technical Specifications.
2. Connections.
3. Chassis Overview.
1.1 Technical Specifications
1.1.1 Reception
Tuning system: PLL
Color systems: NTSC-M
Sound systems: FM-mono & FM-stereo
A/V connections: NTSC 3.58
Channel selections: TV: 2-69,CATV: 2-13,A-W,
Aerial input: 75 OHM, 1VP-P
1.1.2 Miscellaneous
Audio output: ≥6W+6W
Mains voltage: AC110-240V~
Mains frequency: 50 /60 Hz
Ambient temperature: + 5 to + 45 deg. C
Maximum humidity: 90 %
Power consumption: 130W
Standby Power consumption: <4W
1.2 Connections
1.2.1 Front (or Side) Connections and Front (or Top) Control

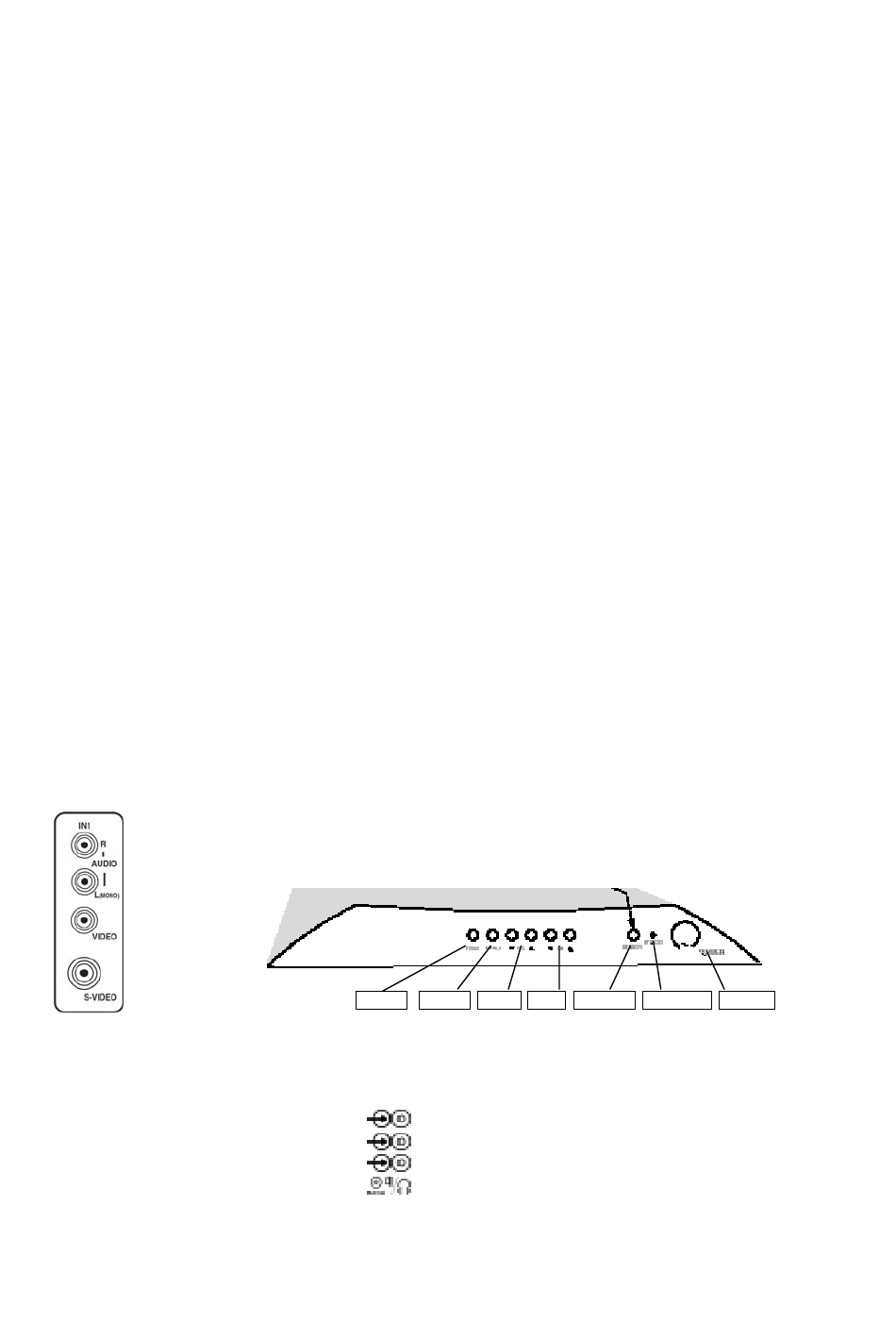

SIDE AV PANEL FRONT PANEL
AV/TV M EN U VO L CH SEN SO R STAN D BY PO W ER
A/V In (if present)
1 - Video CVBS (1 Vpp / 75 _)
2 - Audio L (0.2 Vrms / 10 k_)
3 - Audio R (0.2 Vrms / 10 k_)
