ORDER
NO. SD7905-1561

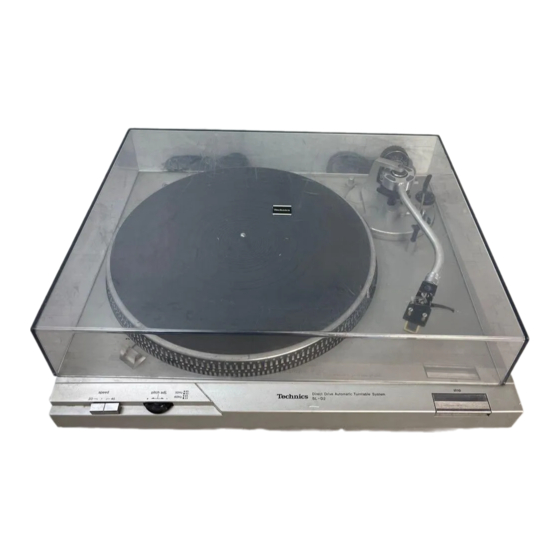

Turntable System
oL-D2
(XA), (XAL), (XGE), (E)
(XG), (XGF), (XGB)
oL- D2
(XAL), (E), (XG), (XA)
* The models SL-D2 (XA) and SL-D2K (XA) are available
in Asia, Latin America, Middle
East and Africa only.
* The Models SL-D2 (XAL) and SL-D2K (XAL) are
available in Australia only.
* The model
SL-D2 (XGE) is available in United
Kingdom
only.
* The models SL-D2 (E) and SL-D2K (E) are available in
Scandinavia and European only.
* The models SL-D2 (XG) and SL-D2K (XG) are available
in European
only.
* The model
SL-D2 (XGF) is available in France only.
* The model
SL-D2 (XGB) is available in Belgium only.
* SL-D2 is of silver finish.
* SL-D2K
is of black finish.
SPECIFICATIONS
(Specifications subject to change without notice.)
General
Overhang:
15 mm (19/32"')
Power supply:
~110-120/220-240V, 50 or
Friction:
Less than 7mq (lateral, vertical)
60 Hz
Effective mass:
12g (without cartridge)
Power consumption:
4,5W
Tracking error angle:
Within 2°32' at the outer groove
Dimensions:
A3.0.% 13.0-%-37:6-cm
of 30cm (12"') record
(WxHxD)
(16-59/64" x 5-7/64"' x
Within es at the inner groove
14-40/64'')
of 30cm (12'') record
Weight:
6.9 kg (15.2 Ib.)
Offset angle:
22°
Turntable section
Stylus pressure
Type:
Automatic turntable
adjustment range:
9 O-—2.5g
Auto return
Applicable cartridge
Auto stop
weight range:
6-9.5g
Drive method:
Direct drive
13.5-—17 g (including headshell)
Motor:
Brushless DC motor
(with shellweight):
3—6.5 9
Drive control method:
B8-FG servo control
10.5—14 g {including headsfel!)
Turntable platter:
Aluminum die-cast, 31.2cem
Headshell weight:
7.59
(12-9/32"')
Cartridge section
Turntable speeds:
33-1/3 rom and 45 rom
Model No.
EPC-270C
Pitch control:
10% adjustment range
Type:
Moving magnet
Wow and flutter.
0.014% WRMS*
Frequency response:
20 Hz to 25 kHz
0.037 WAMS«(J1S°C5521)
Output voltage:
3.2 mV at 1 kHz
£0.042% peak
5 cm/s. zero to peak lateral
(LEC 98A
Weighted)
velocity
"The
rating
refers
to turntable
assembly
alone,
ex-
Output voltage:
[9 mV at 1 kHz
10 cm/s. zen to
cluding
efects of record,
cartridge or tonearm,
but
peak 45° velocity (DIN 45 500) ]
including platter.
Measured by obtaining signal from
Channel separation:
25 dB at 1 kHz
frequency generator attached to motor assembly.
Channel balance:
Within 2 dB at 1 kHz
Rumble:
—53dB(IEC98A Unweighted)
Compliance (dynamic): 10x107° cm/dyne at 100 Ha
—75dB(ICE 98A weighted)
Stylus pressure:
1.75 40.259 (17.54+2.5mN)
Tonearm section
Load impedance:
A7 kQ2 to 100 kQ2
Type:
Universal tonearm
Weight:
6.0 g (cartridge only)
Effective length:
230 mm (9-1/16")
Replacement stylus:
= EPS-2/0SD
