- Page 1 Important information enclosed: please read before your first ride! Please keep the manual for future use!
-
Page 2: Table Of Contents
CONTENTS 1. GENERAL INTRODUCTION 1.1 Welcome .................................. 1.2 Use of the Manual ..............................1.3 Service and Technical Support ..........................1.4 Choosing the Right Size ............................1.5 Bike Components ..............................1.6 Range ..................................1.7 Shifting Recommendations ............................2. SAFETY 2.1 Battery & Charger ..............................2.2 Bike Usage ................................ -
Page 3: Welcome
1.2 Use of the Manual We encourage you to read this manual thoroughly before you take your new NCM E-bike for a ride. It is important not to overlook the safety instructions and explanations of both traditional and non-traditional bike parts, as this will offer you a general understanding of your new NCM E-bike. -

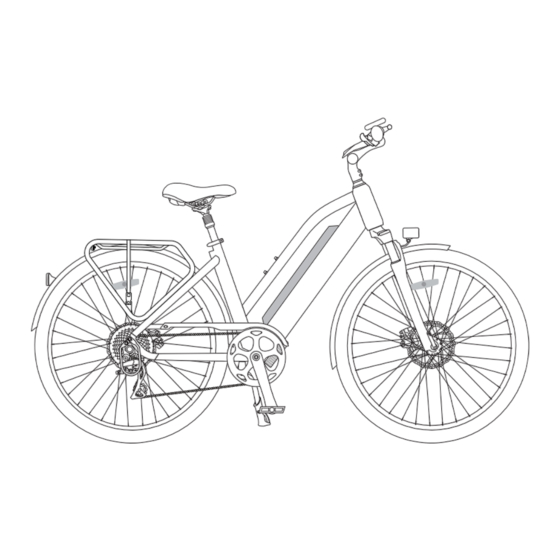

Page 4: Bike Components
GENERAL For some bicycles, like low-step cruisers, stand-over clearance measurement cannot be used as they either do not have a top tube or it is sloped very low. For these bikes the height of the seat post should be used to select the correct size. You should be able to touch the ground comfortably while sitting in the saddle when it is at its lowest point in the seat tube. -
Page 5: Range
GENERAL Handlebar Attachments 1. Left E-brake Lever 6. Right Shift Lever 2. Left Grip 7. Bell 3. Display Controller 8. Throttle 4. Display 9. Right E-brake Lever 5. Adjustable Stem 10. Right Grip Frame Number 1. Frame Number (head tube) 2. -
Page 6: Safety
SAFETY 2. SAFETY 2.1 Battery & Charger ● Keep the battery and charger away from water and heat sources. ● Do not connect positive and negative terminals. ● Keep the battery away from children and pets. ● Use the battery and charger only for their intended purpose as part of your E-bike. ●... - Page 7 SAFETY It is customary for countries with right-hand traffic to have the front brake on the left-hand brake lever and the rear brake on the right-hand lever. The opposite is generally true for countries with left-hand traffic. The table below shows several examples.
- Page 8 SAFETY Child Seat and Child Trailer Never carry a passenger. Installing a child seat on the bike is not allowed. Please check with us before installing a child trailer on the bike. Refer to and follow national and regional regulations on the use of child seats and child trailers. Never attach a child seat to handlebars, seat, or front luggage carrier.
-
Page 9: Transport
2.5 Liability Disclaimer You are responsible for your own actions while using an electric bike. NCM Bikes is not responsible/nor liable for any accidents or injuries (whether caused by you or others) that may occur during your use. This is especially valid for cases of ungranted modifications to the setup of the bike, e.g. -
Page 10: Installation And Adjustment
INSTALLATION AND ADJUSTMENT 3. INSTALLATION AND ADJUSTMENT 3.1 General remarks While we are confident about the ease and your ability to assemble the bike, we highly recommend a tune up and safety check from a professional bike shop or industry partner. 3.2 Front Mudguard and Front Wheel Assembly 1. -
Page 11: Handlebar And Stem Assembly
INSTALLATION AND ADJUSTMENT WARNING: ● To avoid any danger, after you have installed the wheel, please test the brake system before cycling. ● Avoid touching the brake discs/rotors with your hand to prevent oils from your hands on the surface. If you have to clean it, use suitable brake cleaner. -
Page 12: Assembly Of The Pedals
INSTALLATION AND ADJUSTMENT 3.4 Assembly of the Pedals - Identify your pedals: check the letters on the pedals, "L" or "R". - The "R" marked pedal is for the right (when facing the forward direction). For attachment to the crank, tighten clockwise. - The "L"... -
Page 13: Saddle Height
INSTALLATION AND ADJUSTMENT 3.5 Saddle Height To enable comfortable, fatigue-free and safe riding, the saddle and handlebar height should be adjusted to the body size of the rider. The saddle height is correct if the leg is near full extension while the foot is resting flat on the pedal in the bottom position of the crank cycle. -
Page 14: Saddle Adjustment
INSTALLATION AND ADJUSTMENT There is a minimum insertion line marked on the seat post (Failure to observe the minimum insertion line can result in serious injury); please ensure the seat post is always inserted into the seat tube beyond this line (the line must be inside the seat tube). -
Page 15: Shifter And Derailleur Adjustment
INSTALLATION AND ADJUSTMENT WARNING: Overuse or incorrect use of a front-wheel brake can cause the rear wheel to lift off the ground, resulting in decreased control of the bike or even flipping the bike and rider in the forward direction; this can lead to serious injury and bicycle damage. -
Page 16: E-Parts Overview
NCM E-bikes’ integrated lithium-ion battery packs are some of the highest capacity packs available on the market, with the NCM T7 step storing up to 960Wh of energy. The packs consist of high-density cells, meaning that our designs remain sleek and light without any sacrifices to battery capacity. -
Page 17: General Remarks
● Stop charging the battery immediately if you notice anything unusual, such as smoke or a strange smell; take out the battery and store it outside of the house, then take the battery to an authorized NCM dealer or experienced technician for service or replacement. -
Page 18: Usage
8. Push down on the top of the battery until you notice a ‘click’ in order to ensure that the battery is properly secured. 9. Pull out the key. 10. Your NCM E-bike is ready for use. Integrated downtube battery inside the bike 1. -
Page 19: Battery Tag
E-PARTS OVERVIEW 4.3 Battery tag 4.3.1 Quick instructions A. Turn on the device Press and hold the battery tag button for 5 seconds, the device will beep and turn on. B. Pair the device · Open the Find My app. ·... - Page 20 E-PARTS OVERVIEW D. What is the Find My network? And how does it work? The Apple Find My network provides an easy, secure way to locate compatible personal items on a map using the Find My app on your iPhone, iPad, iPod touch, Mac, or the Find Items app on Apple Watch.
-
Page 21: Display
DISPLAY 5. DISPLAY 5.1 APPEARANCE A Better Display. A Smart Display. Easy View 4" Display Panel. Superior Anodizing Aluminum Alloy Frame. PMMA Waterproof Cable Housing. Easy Control with Large Buttons. 5.2 NORMAL OPERATION 4.1 PAS LEVEL SELECTION section 4 4.2 ERROR CODE INDICATOR 3.1 LIGHT 3.2 SPEED INDICATOR section 3... - Page 22 DISPLAY NORMAL VIEW AREA With the display on, the default indicators are current indicator, trip 2, speed, PAS level, and battery indicator as shown in the figure below. Press SET to change the display information. Section 1: ON/OFF Press ON/OFF to activate the display. With the display on, press ON/OFF for 2 seconds to turn off power. With the display off, there is no battery power consumption.
- Page 23 DISPLAY Section 3: 3.1 BACKLIGHT, HEADLIGHT AND TAILIGHT Press ON/OFF to turn on the backlight, headlight and tailight. Press it again to turn off the backlight, headlight and tailight. 3.2 SPEED INDICATOR The central area displays the current riding speed of the E-bike. The speed display is as below. 3.3 KM/H and MPH Selecting KM/H or MPH for the speed and mileage will switch all indicators to the selected unit of measurement.
- Page 24 DISPLAY 3.4 WALK MODE Hold DOWN (-) for 2 seconds to enter the power-assisted walk mode. When the icon is lit, the E-bike will travel at 6km/h without the need for the rider to pedal. Assisted walk mode will cease when the button is no longer being pressed. Section 4: 4.1 PAS LEVEL SELECTION Press UP (+) or DOWN (-) to change the PAS level and thus change the power output of the motor.
- Page 25 DISPLAY ※ The display cannot return to normal status until the problem is solved, the E-bike’s electric components will not operate if there is an error in the system. However, the bike can still be operated conventionally (without electric assistance). ※...
- Page 26 Hall signal error (electromagnet in incorrect position) Brake error (detection after turning on) Under voltage Motor stalling Error in communication with controller Error in communication with display If you still have some questions about the display, please contact your NCM dealer.
-
Page 27: Recommendations And Maintenance
6.1 General Requirements NCM E-bikes use metal shells to cover the electric components, so we strongly advise against the use of excessive water to wash the shells and parts around them. Use a soft cloth with a neutral solution to wipe the dirt off the shells. Afterward, wipe everything dry with a clean soft cloth. - Page 28 RECOMMENDATIONS AND MAINTENANCE Maintenance Schedule Each ride Weekly Monthly 6 Monthly Yearly Tyre pressure Tyre condition Visual inspection Brake lever pressure Quick releases Handlebar alignment Saddle alignment Battery pack locked Wheel check Inspect frame condition (include welds for fissures) Clean and lubricate chain Check brake pads Lubricate forks Lubricate brakes &...
-
Page 29: Troubleshooting
How can I test my battery capacity? ● Please contact NCM to arrange the return of your battery for testing. If the battery tests above 85% capacity within the first year (from purchase date) you will be liable for return freight. If it is tested and is under capacity within the warranty period, your battery will be replaced. -
Page 30: Definition Of Tampering And Recommendations
We recommend you consult with us at NCM before you make modifications or add parts, in order to confirm their safety and compatibility with... -
Page 31: Technical Data
Total Weight 140KG (driver+bike) In order to meet our customers’ requirements as much as possible, NCM reserves the right to modify the characteristics of its products at any time, without notice. Please contact an authorized NCM distributor for assistance. 8. WARRANTY... - Page 32 Leon Cycle Pty Ltd | 3/45 Leakes Road Laverton North, Vic 3026, Australia | support.au@ncmbikes.com www.ncmbikes.com All rights reserved. NAU02...
