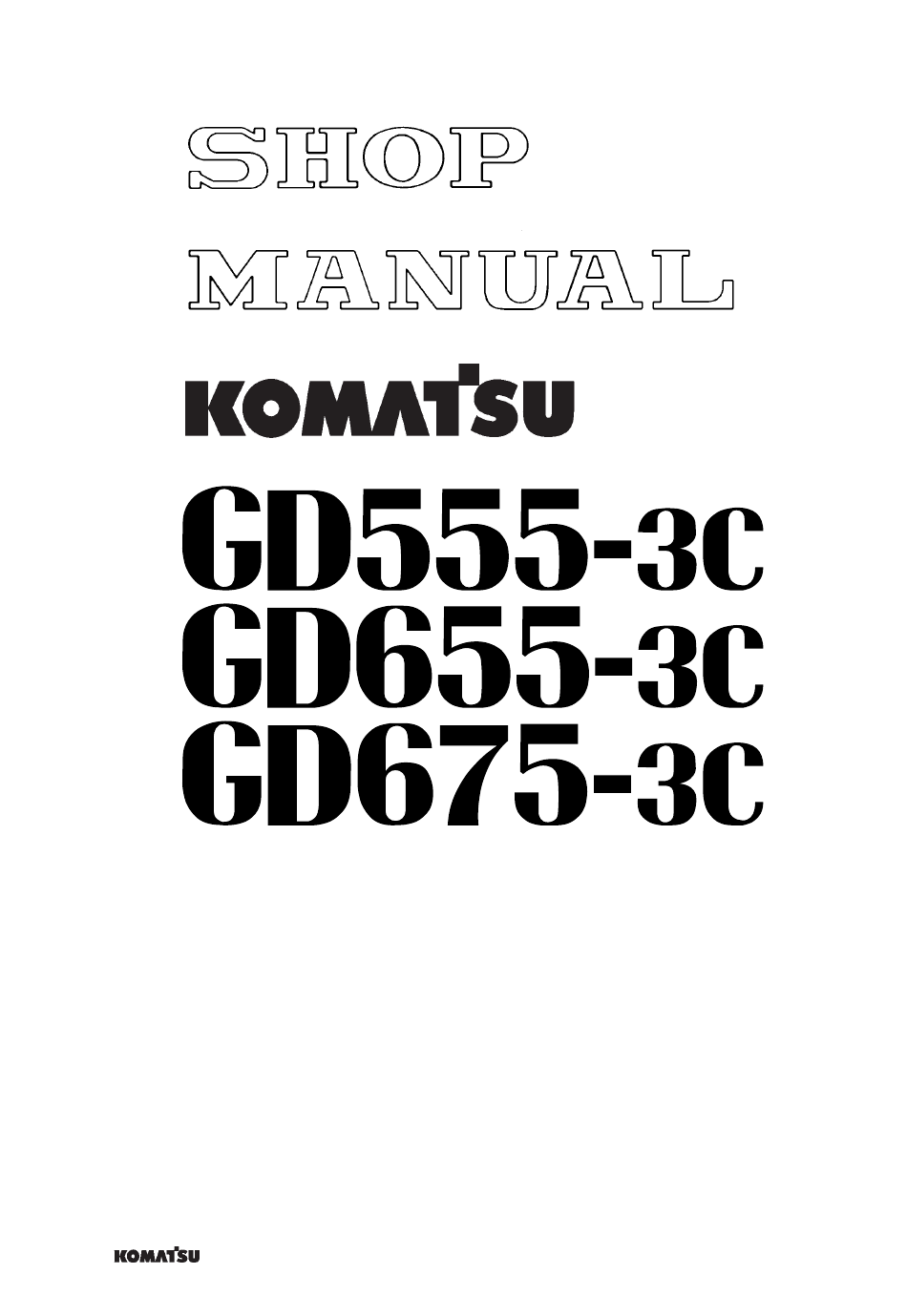

Komatsu GD555-3C Shop Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MACHINE MODEL
GD555-3C
GD655-3C
GD675-3C
•
This shop manual may contain attachments and optional equipment that are not avail-
able in your area. Please consult your local Komatsu distributor for those items you
may require.
Materials and specifications are subject to change without notice.
•
GD555-3C mounts the SA6D102E-1 or SAA6D102E-2 engine.
GD655-3C, GD675-3C mount the S6D114E-1, SA6D114E-1 or SAA6D114E-2 engine.
For details of the engine, see the 102 Series Engine Shop Manual and the 114 Series
Engine Shop Manual.
© 2017
All Rights Reserved
Printed in Japan 12-17 (01)
SERIAL NUMBER
50001 and up
00
50001 and up
00
50001 and up
00
SEBM020911
00
00
00
00-1
(11)
