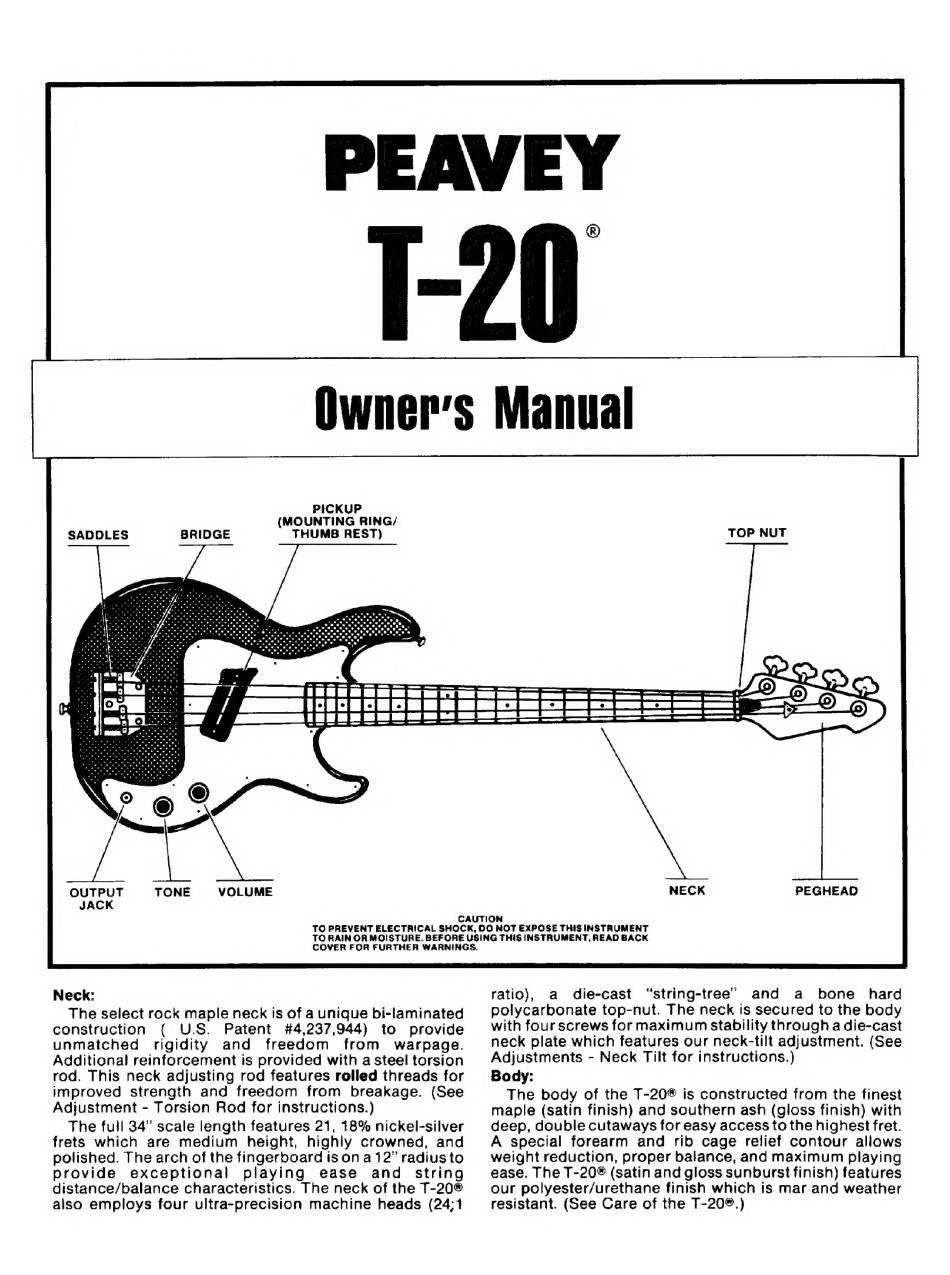

Peavey T-20 Owner's Manual

PEAVEY
1-20
Owner's Manual
PICKUP
(MOUNTING RING/
THUMB REST)
SADDLES BRIDGE
TOP NUT
OUTPUT TONE VOLUME NECK PEGHEAD
JACK
CAUTION
TO PREVENT ELECTRICAL SHOCK, 00 NOT EXPOSE THIS INSTRUMENT
TO RAIN OR MOISTURE. BEFORE USING THIS INSTRUMENT, READ BACK
COVER FOR FURTHER WARNINGS.
Neck: ratio), a die-cast 'string-tree" and a bone hard
The select rock maple neck is of a unique bi-laminated
construction ( U.S. Patent #4,237,944) to provide
unmatched rigidity and freedom from warpage.
Additional reinforcement is provided with a steel torsion
rod. This neck adjusting rod features rolled threads for
improved strength and freedom from breakage. (See
Adjustment - Torsion Rod for instructions.)
The full 34" scale length features 21, 18% nickel-silver
frets which are medium height, highly crowned, and
polished. The arch of the fingerboard is on a 12" radius to
provide exceptional playing ease and string
distance/balance characteristics. The neck of the T-20®
also employs four ultra-precision machine heads (24;1
polycarbonate top-nut. The neck is secured to the body
with four screws for maximum stability through a die-cast
neck plate which features our neck-tilt adjustment. (See
Adjustments - Neck Tilt for instructions.)
Body:
The body of the T-20® is constructed from the finest
maple (satin finish) and southern ash (gloss finish) with
deep, double cutaways for easy access to the highest fret.
A special forearm and rib cage relief contour allows
weight reduction, proper balance, and maximum playing
ease. The T-20® (satin and gloss sunburst finish) features
our polyester/urethane finish which is mar and weather
resistant. (See Care of the T-20®.)
