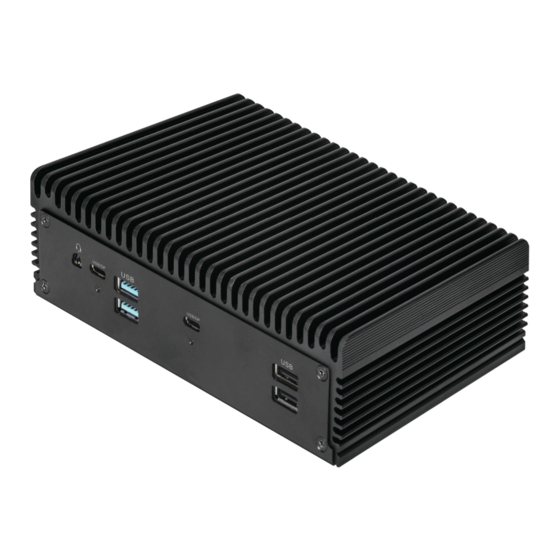

ASROCK iBOX 1300/D4 Series User Manual

Hide thumbs Also See for iBOX 1300/D4 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
iBOX 1200 Series
iBOX 1300/D4 Series
User Manual
Version 1.0
Published June 2022
User Manual

Advertisement

Table of Contents
loading

Related Manuals for ASROCK iBOX 1300/D4 Series

Summary of Contents for ASROCK iBOX 1300/D4 Series

  • Page 1 1200 Series iBOX 1300/D4 Series User Manual Version 1.0 Published June 2022 User Manual...
  • Page 2 Version 1.0 Published April 2023 Copyright©2023 ASRockInd INC. All rights reserved. Copyright Notice: No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRockInd Inc.
  • Page 3 AUSTRALIA ONLY Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
  • Page 4 Check local regulations for disposal of electronic products. Contact Information If you need to contact ASRock Industrial or want to know more about ASRock Industrial, you’re welcome to visit ASRock Industrial’s website at https://www.asrockind.com; or you may contact your dealer for further information.

  • Page 5: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Product Specifications Block Diagram Chapter 2 Product Overview Front View Rear View Inside View Chapter 3 Hardware Installation How to Remove the Bottom Case How to Install the WiFi Module How to Remove the M.2 SSD and the Bracket How to Install the M.2 SSD How to Install the 2.5-inch Hard Drive How to Install the Memory Modules (DDR4)
  • Page 6 Chapter 5 UEFI Setup Utility Introduction 5.1.1 UEFI Menu Bar 5.1.2 UEFI Menu Bar 5.1.3 Navigation Keys Main Screen (Advanced Mode) Advanced Screen 5.3.1 CPU Configuration 5.3.2 Chipset Configuration 5.3.3 Storage Configuration 5.3.4 Super IO Configuration 5.3.5 AMT Configuration 5.3.6 ACPI Configuration 5.3.7 USB Configuration 5.3.8 Trusted Computing Hardware Health Event Monitoring Screen...

  • Page 8: Chapter 1 Introduction

    Because the hardware specifications might be updated, the content of this documentation will be subject to change without notice. 1.1 Package Contents • 1 x iBOX 1300/D4 Series • 1 x 19V/90W Power Adapter • Wall Mount Kit & Screw Package •...

  • Page 9: Product Specifications

    Processor System 1.2 Product Specifications Processor System Intel 13th Gen (Raptor Lake-P) Core™ Processors ® iBOX-1365UE/D4 (i7-1365UE, 2P+8E) Processor System Intel 13th Gen (Raptor Lake-P) Core™ Processors ® iBOX-1335UE/D4 (i5-1335UE, 2P+8E) iBOX-1365UE/D4 (i7-1365UE, 2P+8E) iBOX-1315UE/D4 (i3-1315UE, 2P+4E) Intel 13th Gen (Raptor Lake-P) Core™ Processors ®...
  • Page 10 Storage iBOX 1300/D4 Series 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket) SATA 1 x SATA3.0 (6.0 Gb/s) Front I/O 2 x USB 3.2 Gen2 (Type-A) 1 x USB4/Thunderbolt™ 4 (supports DP1.4a display output) 1 x USB 3.2 Gen2 (Type-C, supports DP1.4a display output)

  • Page 11: Block Diagram

    1.3 Block Diagram INTEL TCP0+USB2#5 Type-C/TBT Burnside Bridge DDR4 3200MHZ SO-DIMM Connector Retimer TCP1+USB2#6 DDR4 3200MHZ Type-C SO-DIMM Connector HDMI TCP2 TMDS HDMI SATA (#0) Connector RETIMER SATA Port AUX/DDC DP++ TCP3 PCIe x1 (#6) SWITCH Connector CNVi M.2 Key E USB 2.0 (P10) 2 x USB 3.2 Gen2 (#1, #2) 2 x USB3.2 Gen2...

  • Page 12: Chapter 2 Product Overview

    1300/D4 Series Chapter 2 Product Overview This chapter provides diagrams showing the location of important components of the iBOX 1300/D4 Series. 2.1 Front View Description Audio (Mic-in, Line-out) USB 4/Thunderbolt™ 4 (supports DP1.4a display output) USB 3.2 Gen2 (Type-A) USB 3.2 Gen2 (Type-C, supports DP1.4a display output)

  • Page 13: Rear View

    2.2 Rear View Description COM Port Power Button 2 x USB 3.2 Gen2 Ports (Type-A) HDMI RJ-45 (2.5G LAN) DC-IN DisplayPort RJ-45 (2.5G LAN) *There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port...

  • Page 14: Inside View

    1300/D4 Series 2.3 Inside View Description SO-DIMM Slots SATA 3.0 Connector M.2 Slot (Key M) M.2 Slot (Key E) Hard disk drive tray (compatible with 2.5" SATA HDD/SSD) SO-DIMM memory, hard drive and mSATA SSD are not included with this system.

  • Page 15: Chapter 3 Hardware Installation

    Chapter 3 Hardware Installation This chapter helps you install or remove important components. 3.1 How to Remove the Bottom Case 1. Remove the four screws on the bottom case. 2. Then lift up and remove the bottom panel.

  • Page 16: How To Install The Wifi Module

    1300/D4 Series 3.2 How to Install the WiFi Module 1. Locate the WiFi Module slot on the motherboard. 2. Carefully insert the WiFi Module into the slot. 3. Tighten the screw to secure the WiFi Module to the motherboard.

  • Page 17: How To Remove The M.2 Ssd And The Bracket

    3.3 How to Remove the M.2 SSD and the Bracket 1. Release the screw and carefully remove the M.2 SSD. 2. Release the screw and remove the bracket from the motherboard.

  • Page 18: How To Install The M.2 Ssd

    1300/D4 Series 3.4 How to Install the M.2 SSD 1. Locate the M.2 slot on the motherboard. 2. Carefully insert the M.2 SSD into the slot. 3. Tighten the screw to secure the M.2 SSD to the motherboard.

  • Page 19: How To Install The 2.5-Inch Hard Drive

    3.5 How to Install the 2.5-inch Hard Drive 1. Remove the four screws on the bottom case. Then lift up and remove the bottom panel. 2. Attach the HDD cage to the bottom panel and secure it using the four screws. Then connect the SATA cable to the HDD.
  • Page 20 1300/D4 Series 3. Connect the SATA Data and Power Cable to the HDD. 4. Connect the SATA Cable to the connector.
  • Page 21 5. Then reinstall the bottom panel.

  • Page 22: How To Install The Memory Modules (Ddr4)

    1300/D4 Series 3.6 How to Install the Memory Modules (DDR4) 1. The iBOX 1300/D4 Series requires DDR4 SO-DIMM. 2. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 SO-DIMM pairs.

  • Page 23: How To Install The Vesa Bracket

    3.7 How to Install the VESA Bracket 1. Attach the two screws to the base of the iBOX 1300/D4 Series. 2. Attach the VESA Bracket to the rear of a compatible display using the four screws. *Choose mounting holes depending on the mounting hole pattern of your LCD screen...
  • Page 24 1300/D4 Series 3. Mount the iBOX 1300/D4 Series by sliding it into place.

  • Page 25: How To Install The Wall Mounting Brackets

    3.8 How to Install the Wall Mounting Brackets 1. Attach the wall mounting brackets to the base of the iBOX 1300/D4 Series and secure them with screws. 2. The iBOX 1300/D4 Series is installed with the wall mounting brackets.
  • Page 26 1300/D4 Series Dimension of the iBOX 1300/D4 Series with Wall Mounting Brackets Installed 197.4mm 187.1mm 99.2mm 110.4mm...

  • Page 27: How To Install The Din Rail Mounting Bracket (Optional)

    3.9 How to Install the Din Rail Mounting Bracket (Optional) 1. Attach the Din Rail Bracket to the base of the iBOX 1300/D4 Series. 2. Then secure it with screws. Din Rail Bracket is not provided by default. Please purchase it seperately if needed.

  • Page 28: Chapter 4 Motherboard

    1300/D4 Series Chapter 4 Motherboard 4.1 Motherboard Layout Top: AUDIO1 TC_T0 (Type C): BIOS USB4 / Thunderbolt 4 USB3_3_4 (USB3.2 Gen2): Bottom: USB3_3 USB2_7_8 Top: USB3_4 HDMI_DP_1: COM1 Bottom: HDMI Top: DP SATA3_0 USB3_1_2 Industrial (USB3.2 Gen2): Bottom: USB3_1...
  • Page 29 Back: FAN1 PWR_BTN1 ESPI1 BAT1 Back Side : 8 : Power Button (PWR_BTN1) 9 : Fan Connector (FAN1) 10 : Battery Connector (BAT1) 11 : ESPI Connector (ESPI1)

  • Page 30: Onboard Headers And Connectors

    1300/D4 Series 4.2 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause per- manent damage to the motherboard! USB 2.0 Connector...
  • Page 31 SATA3 Port Signal Name (SATA3_0) SATA0_TXP (see p. 21, No. 5) SATA0_TXN SATA0_RXN SATA0_RXP The Serial ATA3 (SATA3) connector supports SATA data cables for internal storage devices. The current SATA3 interface allows up to 6.0 Gb/s data transfer rate. JP1 Header 1-2: SIO AT Mode (Default Open: SIO ATX Mode) (8-pin JP1)
  • Page 32 1300/D4 Series PWRBTN (Power Switch): Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch. RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.
  • Page 33 ESPI Header Signal Name (ESPI1) ESPI_CLK (see p. 22, No. 11) ESPI_CS# ESPI_RESET# SMB_CLK SMB_DATA ESPI_IO0 ESPI_IO1 ESPI_IO2 ESPI_IO3 +3VSB Internal Use Internal Use ESPI_ALERT#...

  • Page 34: Expansion Slots (M.2 Slots)

    1300/D4 Series 4.3 Expansion Slots (M.2 Slots) There are 2 M.2 sockets on this motherboard. M.2 for SSD: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x 4 for SSD. * M.2 Key M 2280 (Supported by bracket) M.2 for Wi-Fi: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.

  • Page 35: Chapter 5 Uefi Setup Utility

    Chapter 5 UEFI Setup Utility 5.1 Introduction ASRock Industrial UEFI (Unified Extensible Firmware Interface) is a BIOS utility which offers tweak-friendly options in an advanced viewing interface. The UEFI system works with a USB mouse and offers users a faster, sleeker experience.

  • Page 36: Uefi Menu Bar

    1300/D4 Series 5.1.2 UEFI Menu Bar The top of the screen has a menu bar with the following selections: Main For setting system time/date information For advanced system configurations Advanced H/W Monitor Displays current hardware status Security For security settings...

  • Page 37: Navigation Keys

    5.1.3 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 38: Main Screen (Advanced Mode)

    1300/D4 Series 5.2 Main Screen (Advanced Mode) When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.

  • Page 39: Advanced Screen

    5.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Super IO Configuration, AMT Configura- tion, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction. Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM.

  • Page 40: Cpu Configuration

    1300/D4 Series 5.3.1 CPU Configuration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Configuration options: [Enabled] [Disabled] Active Processor P-Cores This allows you to select the number of cores to enable in each processor package.
  • Page 41 Enhanced Halt State (C1E) The option allows you to enable Enhanced Halt State (C1E) for lower power consumption. Configuration options: [Enabled] [Disabled] Package C State Support The option allows you to enable CPU, PCIe, Memory, Graphics C State Support for power saving.
  • Page 42 1300/D4 Series Intel Turbo Boost Technology Intel Turbo Boost Technology enables the processor to run above its base operating frequency when the operating system requests the highest performance state. The default value is [Enabled]. Configuration options: [Enabled] [Disabled] CPU Thermal Throttling CPU Thermal Throttling allows you to enable CPU internal thermal control mecha- nisms to keep the CPU from overheating.

  • Page 43: Chipset Configuration

    5.3.2 Chipset Configuration VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance. Configuration options: [Enabled] [Disabled] Re-Size BAR Support If system has Resizable BAR capable PCIe Devices, this option enables or disables Resizable BAR Support.
  • Page 44 1300/D4 Series Render Standby Power down the render unit when the GPU is idle for lower power consumption. Configuration options: [Enabled] [Disabled] Onboard LAN1 This allows you to enable or disable the Onboard LAN1 feature. Configuration options: [Enabled] [Disabled] Onboard LAN2 This allows you to enable or disable the Onboard LAN2 feature.

  • Page 45: Storage Configuration

    5.3.3 Storage Configuration SATA Controller(s) The option allows you to enable or disable the SATA controllers. Configuration options: [Enabled] [Disabled] SATA Mode Selection AHCI supports new features that improve performance. Configuration option: [AHCI] AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk performance.
  • Page 46 1300/D4 Series SATA Aggressive Link Power Management SATA Aggressive Link Power Management allows SATA devices to enter a low power state during periods of inactivity to save power. It is supported only by AHCI mode. Configuration options: [Enabled] [Disabled] Hard Disk S.M.A.R.T.

  • Page 47: Super Io Configuration

    5.3.4 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Type Select Use this to select COM1 port type: [RS232], [RS422] or [RS485]. WDT Timeout Reset Use this to set the Watch Dog Timer. Configuration options: [Enabled] [Disabled]...

  • Page 48: Amt Configuration

    1300/D4 Series 5.3.5 AMT Configuration USB Provisioning of AMT Use this to enable or disable AMT USB Provisioning. The default is [Disabled]. MAC Pass Through The option enables or disables MAC Pass Through function. Dynamic Lan Switch This allows switching AMT support from Integrated LAN to Discrete LAN.
  • Page 49 One Click Recovery(OCR) Configuration Configuration setting for One Click Recovery. This allows access for AMT to boot a recovery OS application Remote Platform Erase Configuration Remote Platform Erase configuration menu. MEBx This Formset contains forms for configuring MEBx.

  • Page 50: Acpi Configuration

    1300/D4 Series 5.3.6 ACPI Configuration Suspend to RAM Suspend to RAM allows you to select [Disabled] for ACPI suspend type S1. It is recommended to select [Auto] for ACPI S3 power saving. Configuration options: [Auto] [Disabled] Onboard LAN Power On Use this item to enable or disable onboard LAN to turn on the system from the power-soft-off mode.

  • Page 51: Usb Configuration

    5.3.7 USB Configuration USB Power Control Use this option to control USB power. Configuration options: [Always Enabled] [Default Setting]...

  • Page 52: Trusted Computing

    1300/D4 Series 5.3.8 Trusted Computing NOTE: Options vary depending on the version of your connected TPM module. Security Device Support Security Device Support allows you to enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
  • Page 53 Pending Operation Pending Operation allows you to schedule an Operation for the Security Device. NOTE: Your computer will reboot during restart in order to change State of the Device. Configuration options: [None] [TPM Clear] Platform Hierarchy This item allows you to enable or disable Platform Hierarchy. Configuration options: [Enabled] [Disabled] Storage Hierarchy This item allows you to enable or disable Storage Hierarchy.
  • Page 54 1300/D4 Series Device Select This item allows you to select the TPM device to be supported. [TPM 1.2] restricts support to TPM 1.2 devices. [TPM 2.0] restricts support to TPM 2.0 devices. [Auto] supports both TPM 1.2 and TPM 2.0 devices with the default set to TPM 2.0 devices.

  • Page 55: Hardware Health Event Monitoring Screen

    5.4 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed, chassis fan speed, and the critical voltage. NOTE: Options vary depending on the features of your motherboard. Fan1 Setting This allows you to set FAN1’s speed.

  • Page 56: Security Screen

    1300/D4 Series 5.5 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has the authority to change the settings in the UEFI Setup Utility.

  • Page 57: Boot Screen

    5.6 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Boot Option #1 The item allows you to set the system boot order. Boot From Onboard LAN The item allows the system to be waked up by the onboard LAN.
  • Page 58 1300/D4 Series Full Screen Logo [Enabled] Select this item to display the boot logo. [Disabled] Select this item to show normal POST messages.

  • Page 59: Exit Screen

    5.7 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop out. Select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, the following message “Discard changes and exit setup?”...

  • Page 60: Chapter 6 Software Support

    1300/D4 Series Chapter 6 Software Support 6.1 Install Operating System ® ® This motherboard supports various Microsoft Windows operating systems: 11 64-bit / 10 64-bit. Because motherboard settings and hardware options vary, use the setup procedures in this chapter for general reference only. Refer your OS docu-...

This manual is also suitable for:

Ibox-1365ue/d4Ibox-1335ue/d4Ibox-1315ue/d4
