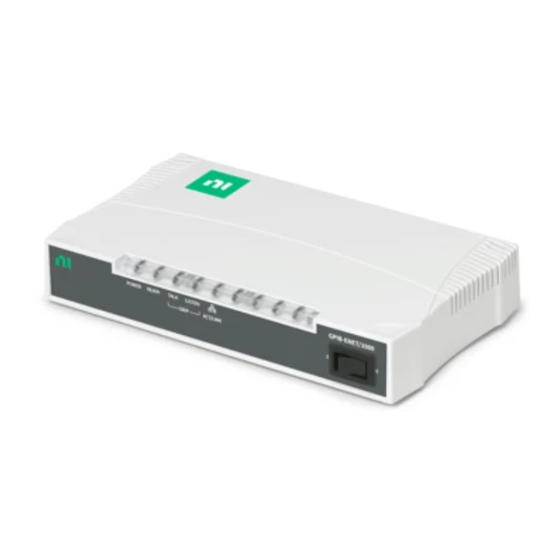

- Page 1 GPIB-ENET-1000...
-
Page 2: Table Of Contents
INSTALLATION GUIDE AND SPECIFICATIONS GPIB Hardware Contents Electromagnetic Compatibility Guidelines ................1 GPIB-USB Interfaces ....................... 2 LED Signaling ........................4 PCIe-GPIB, PCIe-GPIB+, PCI-GPIB, PCI-GPIB+, PCI-GPIB/LP, and PCI-8232....5 ExpressCard-GPIB ........................7 PMC-GPIB ..........................8 PXI-GPIB and PXI-8232......................10 GPIB-ENET/1000 ........................12 GPIB-ENET/1000 Installation .................. -
Page 3: Gpib-Usb Interfaces
Operation of this hardware in a residential area is likely to cause harmful interference. Users are required to correct the interference at their own expense or cease operation of the hardware. Changes or modifications not expressly approved by National Instruments could void the user’s right to operate the hardware under the local regulatory rules. - Page 4 Otherwise, the GPIB interface is detected when you start your computer. Figure 1. Installing the GPIB-USB Interface Computer USB Connector GPIB-USB Interface To GPIB Devices The GPIB hardware installation is now complete. GPIB Hardware Installation Guide and Specifications | © National Instruments | 3...
-
Page 5: Led Signaling
LED Signaling The GPIB-USB-HS controller uses two LEDs to indicate status and activity. When you connect the GPIB-USB-HS controller, the READY LED lights either green or amber once the driver is installed and detected. Table 1 summarizes the functionality of the LEDs on the GPIB-USB-HS hardware. -
Page 6: Pcie-Gpib, Pcie-Gpib+, Pci-Gpib, Pci-Gpib+, Pci-Gpib/Lp, And Pci-8232
Figure 2. It might be a tight fit, but do not force the board into place. Your PCI Express board may be larger than the one shown in the figure. Note GPIB Hardware Installation Guide and Specifications | © National Instruments | 5... - Page 7 Figure 2. Installing Your PCI/PCI Express Board PCI Express Board Computer PCI Board Computer PCI Express Slot PCI Slot Screw the mounting bracket of the GPIB board to the back panel rail of the computer. Replace the top cover (or the access panel to the expansion slot). Power on your computer.
-
Page 8: Expresscard-Gpib
GPIB devices are at the same ground potential. If your computer is already running, the operating system automatically detects the GPIB interface. Otherwise, the GPIB interface is detected when you start your computer. GPIB Hardware Installation Guide and Specifications | © National Instruments | 7... -
Page 9: Pmc-Gpib
Figure 3 shows how to insert the ExpressCard-GPIB and connect the cable. Figure 3. Inserting the ExpressCard-GPIB Notebook Computer ExpressCard Slot ExpressCard-GPIB Cable The GPIB hardware installation is now complete. PMC-GPIB Electrostatic discharge can damage several components on your GPIB Caution board. - Page 10 Use the mounting hardware provided to fasten the PMC-GPIB to the host. Reinstall the host, if you removed it to install the PMC-GPIB. Power on your system. The PMC-GPIB hardware installation is now complete. GPIB Hardware Installation Guide and Specifications | © National Instruments | 9...
-
Page 11: Pxi-Gpib And Pxi-8232
PXI card has an onboard DMA controller that can only be used if the board is installed in a slot that supports bus arbitration, or bus master cards. National Instruments recommends installing your PXI card in such a slot. If you install the board in a non-master slot, you must disable your PXI card’s onboard DMA controller using the board-level call... - Page 12 Screw the front panel of the PXI card to the front panel mounting rail of the PXI or CompactPCI chassis. Power on your PXI or CompactPCI chassis. The PXI card installation is now complete. GPIB Hardware Installation Guide and Specifications | © National Instruments | 11...
-
Page 13: Gpib-Enet/1000
GPIB-ENET/1000 GPIB-ENET/1000 Installation Complete the following steps and refer to Figure 6 to install the GPIB-ENET/1000: Connect one end of your shielded Ethernet cable to your GPIB-ENET/1000. Connect the other end of the shielded Ethernet cable to your Ethernet network. Connect one end of the power cord to the power supply. -
Page 14: Baseplate Identification Label
Safe Mode. The only operation allowed in Safe Mode is to update the firmware. Refer to the section for instructions on how to update the firmware. Firmware Update GPIB Hardware Installation Guide and Specifications | © National Instruments | 13... -
Page 15: Ethernet Connector Leds
Off—Indicates you do not have a network link. Software Recognition In Windows, use the GPIB Ethernet Wizard to add the GPIB-ENET/1000 to your system. Launch the GPIB Ethernet Wizard from Start»Programs»National Instruments»NI-488.2. 14 | ni.com | GPIB Hardware Installation Guide and Specifications... -
Page 16: Ethernet Configuration
GPIB-ENET/1000 even if the numerical IP address changes. Some DHCP servers do not implement hostname registration. The GPIB-ENET/1000 requires Domain Name Server (DNS) registration when using DHCP. If your DHCP server GPIB Hardware Installation Guide and Specifications | © National Instruments | 15... - Page 17 does not support DNS registration, you must use an Auto IP address or static network parameters. Choose whether you need to use DHCP with Auto IP fallback or a static IP configuration. • Leaving the checkbox unchecked enables DHCP with Auto IP fallback. You do not need to enter any network parameters unless you want to change the Ethernet device hostname.
-
Page 18: Firmware Update
The READY LED blinks red slowly in a distinct pattern to alert you of internal errors. Use this section to interpret and record the pattern that the READY LED flashes, and then contact National Instruments. GPIB Hardware Installation Guide and Specifications | © National Instruments | 17... -
Page 19: Cfg Reset Switch
When you have computed your error message number, write it down and also note the ON/OFF state of the ACT/LINK LED. Have this information available when calling National Instruments. CFG RESET Switch The Configuration Reset (CFG RESET) switch is a recessed switch located beside the power connector on the rear panel. -
Page 20: Specifications
(1.34 in. × 2.95 in. × 0.2 in.) Connector GPIB 26-position latching connector with cable to IEEE 488 24-pin connector included in shipping ExpressCard ExpressCard/34 standard connector interface GPIB Hardware Installation Guide and Specifications | © National Instruments | 19... -
Page 21: Gpib-Enet/1000
Environment Operating ambient temperature 0 °C to 65 °C (Tested in accordance with IEC 60068-2-1 and IEC 60068-2-2.) Operating relative humidity 5% to 95%, noncondensing (Tested in accordance with IEC 60068-2-56.) Storage ambient temperature -20 °C to 65 °C (Tested in accordance with IEC 60068-2-1 and IEC 60068-2-2.) Nonoperating thermal shock -20 °C to 65 °C, 5 shocks... -
Page 22: Gpib-Usb-Hs
(Tested in accordance with IEC 60068-2-64. Nonoperating test profile exceeds the requirements of MIL-PRF-28800F, Class 3.) GPIB-USB-HS Performance GPIB 3-wire up to 1830 kbytes/s HS488 up to 7230 kbytes/s GPIB Hardware Installation Guide and Specifications | © National Instruments | 21... -
Page 23: Gpib-Usb-Hs
Power Requirements USB bus-powered device +5 V (VBUS) 140 mA, Typical 500 mA, Maximum Physical Characteristics Dimensions 10.7 cm × 6.6 cm × 2.6 cm (4.2 in. × 2.6 in. × 1.0 in.) Weight 180 g (6.3 oz), includes USB cable weight Connector GPIB IEEE 488 24-pin connector... -
Page 24: Pci-8232
IEC 60068-2-2.) Storage relative humidity 5% to 95%, noncondensing (Tested in accordance with IEC 60068-2-56.) PCI-8232 Performance GPIB 3-wire up to 1830 kbytes/s HS488 up to 7920 kbytes/s GPIB Hardware Installation Guide and Specifications | © National Instruments | 23... - Page 25 Ethernet interface 10Base-T up to 10 Mbit/s 100Base-TX up to 100 Mbit/s 1000Base-T up to 1000 Mbit/s Power Requirements +5 V 917 mA, Typical 1500 mA, Maximum Physical Characteristics Dimensions 12.90 cm × 10.65 cm (5.08 in. × 4.19 in.) Weight 102 g (3.6 oz) Connector...
-
Page 26: Pcie-Gpib And Pcie-Gpib
A version of the PCIe-GPIB controller (part number 190243x-01, manufactured prior to 2008) differs from these specifications in power consumption, physical dimensions, and ambient temperature range. For specific details, refer to the Notice of Board Change—PCIe-GPIB on ni.com GPIB Hardware Installation Guide and Specifications | © National Instruments | 25... -
Page 27: Pci-Gpib
PCI-GPIB Performance GPIB 3-wire up to 1536 kbytes/s HS488 up to 7885 kbytes/s Power Requirements PCI-GPIB/TNT4882C +3.3 V 121 mA, Typical 182 mA, Maximum +5 V 300 mA, Typical 450 mA, Maximum PCI-GPIB/TNT5004 +5 V 150 mA, Maximum 5 mA, Maximum PCI-GPIB/LP (Low Profile) +5 V 300 mA, Typical... -
Page 28: Pci-Gpib
3.3 V 170 mA, Typical 575 mA, Maximum Physical Characteristics Dimensions 10.67 cm × 11.99 cm (4.2 in. × 4.7 in.) Connector GPIB IEEE 488 24-pin connector Universal GPIB Hardware Installation Guide and Specifications | © National Instruments | 27... -
Page 29: Pmc-Gpib
Environment Operating ambient temperature 0 °C to 55 °C (Tested in accordance with IEC 60068-2-1 and IEC 60068-2-2.) Operating relative humidity 10% to 90%, noncondensing (Tested in accordance with IEC 60068-2-56.) Storage ambient temperature -20 °C to 70 °C (Tested in accordance with IEC 60068-2-1 and IEC 60068-2-2.) Storage relative humidity 5% to 95%, noncondensing... -
Page 30: Pxi-8232
1500 mA, Maximum Physical Characteristics Dimensions 10.0 cm × 16.0 cm (3.9 in. × 6.3 in.), 3U Connector GPIB IEEE 488 24-pin connector Ethernet RJ-45 with integrated LEDs GPIB Hardware Installation Guide and Specifications | © National Instruments | 29... -
Page 31: Pxi-Gpib
Environment Operating ambient temperature 0 °C to 55 °C (Tested in accordance with IEC 60068-2-1 and IEC 60068-2-2.) Operating relative humidity 10% to 90%, noncondensing (Tested in accordance with IEC 60068-2-56.) Storage ambient temperature -40 °C to 70 °C (Tested in accordance with IEC 60068-2-1 and IEC 60068-2-2.) Storage relative humidity 5% to 95%, noncondensing... - Page 32 5 Hz to 500 Hz, 0.3 g Nonoperating 5 Hz to 500 Hz, 2.4 g (Tested in accordance with IEC 60068-2-64. Nonoperating test profile exceeds the requirements of MIL-PRF-28800F, Class 3.) GPIB Hardware Installation Guide and Specifications | © National Instruments | 31...
-
Page 33: All Devices
Product misuse can result in a hazard. You can compromise the safety protection built into the product if the product is damaged in any way. If the product is damaged, return it to National Instruments for repair. This product is designed to meet the requirements of the following electrical equipment safety standards for measurement, control, and laboratory use: •... - Page 34 For more information about how to recycle NI products in your region, visit ni.com/environment/weee National Instruments (RoHS) National Instruments RoHS ni.com/ (For information about China RoHS compliance, environment/rohs_china go to ni.com/environment/rohs_china GPIB Hardware Installation Guide and Specifications | © National Instruments | 33...
-
Page 35: Worldwide Support And Services
NI products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patents Notice at ni.com/patents. You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the NI global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data.
