Installation Instructions
479
Sizes 180 &
Series D
ALL WEATHER HEATING and COOLING UNIT
bryant
Cancels: 39479D6 I 39479D8
| 9/20/71
A70680

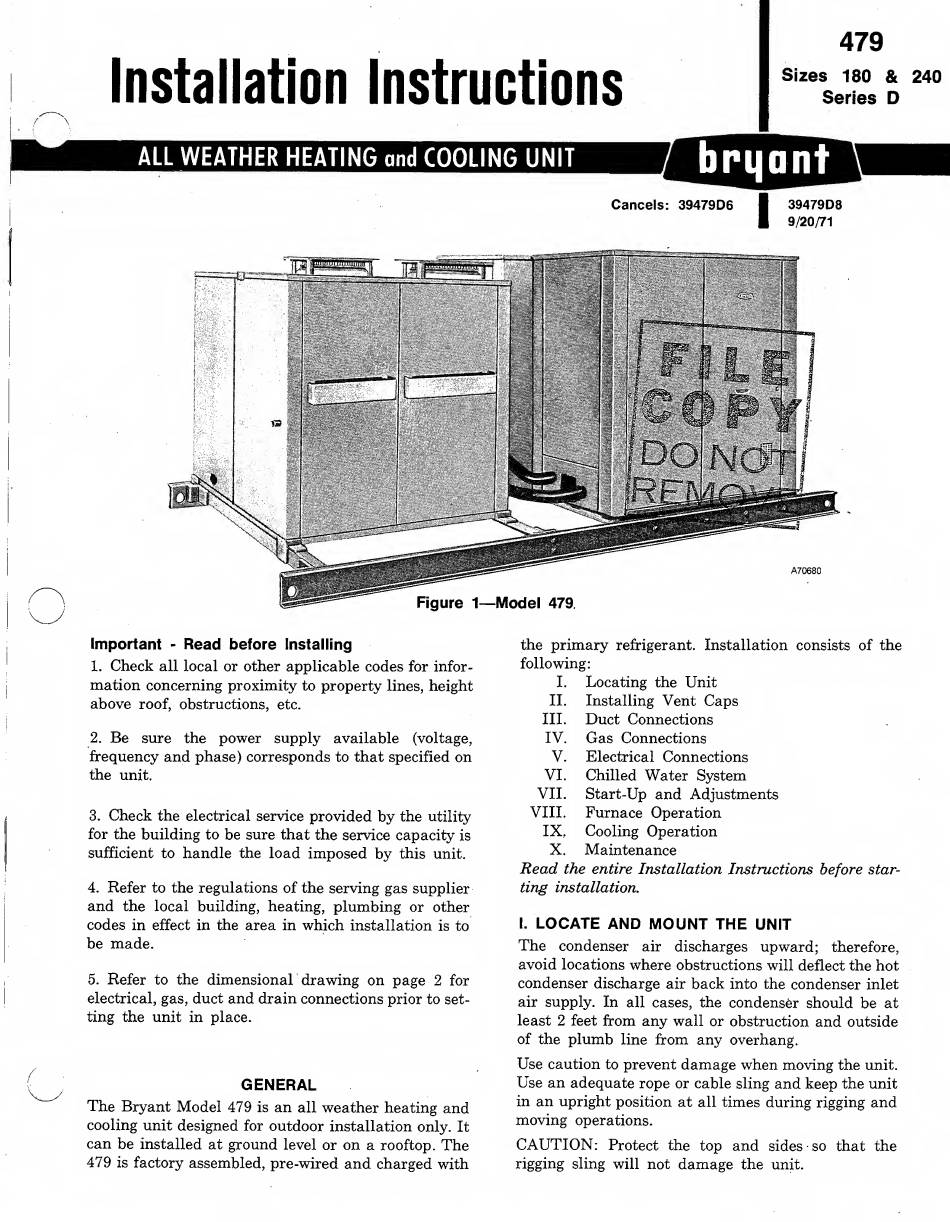

Model 479.
■ it
■j
.
c— L
PjMpjMffi
__gn
MB■■
Important - Read before Installing
1. Check all local or other applicable codes for infor¬
mation concerning proximity to property lines, height
above roof, obstructions, etc.
2. Be sure the power supply available (voltage,
frequency and phase) corresponds to that specified on
the unit.
3. Check the electrical service provided by the utility
for the building to be sure that the service capacity is
sufficient to handle the load imposed by this unit.
4. Refer to the regulations of the serving gas supplier
and the local building, heating, plumbing or other
codes in effect in the area in which installation is to
be made.
5. Refer to the dimensional drawing on page 2 for
electrical, gas, duct and drain connections prior to set¬
ting the unit in place.
GENERAL
The Bryant Model 479 is an all weather heating and
cooling unit designed for outdoor installation only. It
can be installed at ground level or on a rooftop. The
479 is factory assembled, pre-wired and charged with
the primary refrigerant. Installation consists of the
following:
I. Locating the Unit
II. Installing Vent Caps
III. Duct Connections
IV. Gas Connections
V. Electrical Connections
VI. Chilled Water System
VII. Start-Up and Adjustments
VIII. Furnace Operation
IX, Cooling Operation
X. Maintenance
Read the entire Installation Instructions before star¬
ting installation.
I. LOCATE AND MOUNT THE UNIT
The condenser air discharges upward; therefore,
avoid locations where obstructions will deflect the hot
condenser discharge air back into the condenser inlet
air supply. In all cases, the condenser should be at
least 2 feet from any wall or obstruction and outside
of the plumb line from any overhang.
Use caution to prevent damage when moving the unit.
Use an adequate rope or cable sling and keep the unit
in an upright position at all times during rigging and
moving operations.
CAUTION: Protect the top and sides so that the
rigging sling will not damage the unit.
240
