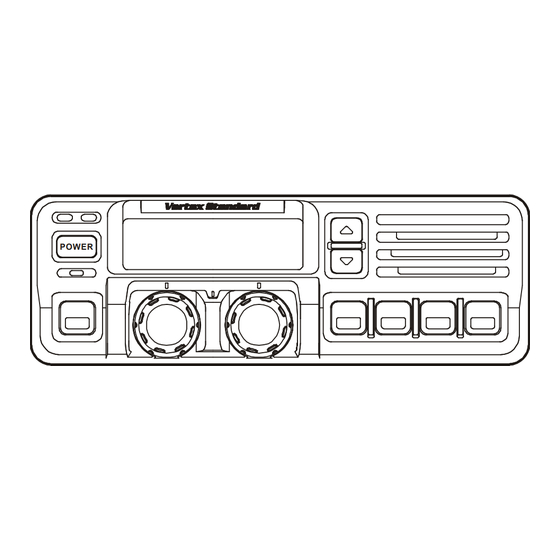

Vertex Standard VX-5500 Operating Manual

Vertex standard vx-5500 radio-mobile: owners manual
Hide thumbs Also See for VX-5500:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
FCC ID: K66VX-5500V
VX-5500
O
M
PERATING
ANUAL
POWER
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
International Division
8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
Vertex Standard Co., Ltd.

Advertisement

Table of Contents
loading

Related Manuals for Vertex Standard VX-5500

Summary of Contents for Vertex Standard VX-5500

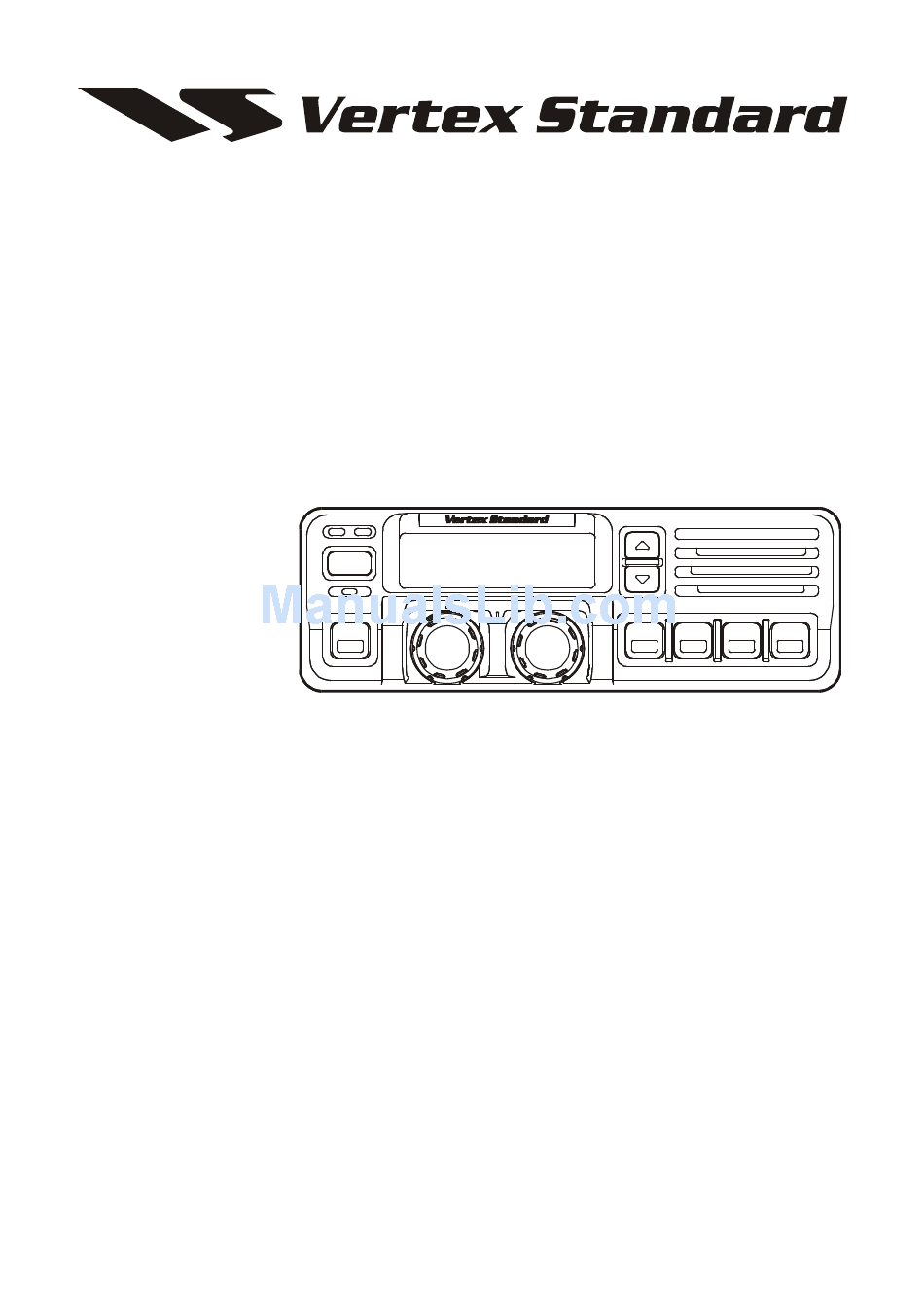

  • Page 1 FCC ID: K66VX-5500V VX-5500 PERATING ANUAL POWER VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. International Division 8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.

  • Page 2: Safety / Warning Information

    For roof top installation, the antenna must be placed in the center of the roof. Radiated frequency and Distance radio will keep you in constant team. Call on us any time, because our business is NOTICE VX-5500V (C) 1.97 Feet (0.6 m) FCC ID: K66VX-5500V two-way Vertex Standard Co., Ltd.
  • Page 3 VERTEX STAN- DARD CT-71 Programming Cable and CE49 Software. The pages which follow will detail the many advanced features provided on the VX-5500 transceiver. After reading this manual, you may wish to consult with your Network Ad- ministrator regarding precise details of the configuration of this equipment for use in your application.

  • Page 4: Controls And Connectors

    … ˆ ‰ Š ” List This channel on “I ” or Receiver Monitor 8 Character Alpha-numeric Display VX-5500 Operating Manual FCC ID: K66VX-5500V ” List NTERCOM This channel on “S ” List Channel Group Number Vertex Standard Co., Ltd.

  • Page 5: Side Panel

    Programmable Function Button (PF button) This button can be set up for special applications, such as high/low power selection, monitor, dimmer, talk-around, and call alert function, as determined by your network requirements and programmed by your VERTEX STANDARD dealer. Ç VOLUME Knob This knob sets the volume of the receiver.

  • Page 6: Antenna Socket

    An external loudspeaker may be connected to this 2-contact, 3.5-mm mini-phone jack. Caution: Do not connect this line to ground, and be certain that the speaker has adequate capability to handle the audio output from the VX-5500. Â 13.8-V DC Cable Pigtail w/Connector The supplied DC power cable must be connected to this 2-pin connector.

  • Page 7: Setting The Volume

    PTT and wait for the “penalty timer” to expire (if you press the PTT before this timer expires, the timer restarts, and you will have to wait another “penalty” period) VX-5500 Operating Manual FCC ID: K66VX-5500V RANSCEIVER Page 5 Vertex Standard Co., Ltd.

  • Page 8: Advanced Operation

    8. For further details, contact your VERTEX STANDARD dealer. For future reference, check the box next to each function that has been assigned to the PF button on your particular radio, and keep it handy.

  • Page 9: Channel Scan

    To stop Dual Watch: m Press the assigned PF button of the “Dual Watch”. m Operation will revert to the channel to which the CHANNEL selector knob is set. VX-5500 Operating Manual DVANCED PERATION Programmable Function Button (PF button)
  • Page 10 Press the assigned PF button of the “DIM” to adjust the brightness of the display and key backright. Page 8 DVANCED PERATION VX-5500 Operating Manual FCC ID: K66VX-5500V Vertex Standard Co., Ltd.
  • Page 11 Press the assigned PF button of the “PA” to use the transceiver as a PA amplifier. When you enable this function, a tone sounds and “ The public address can be used even while scanning and receiving a call. VX-5500 Operating Manual DVANCED PERATION FCC ID: K66VX-5500V ”...
  • Page 12 Encryption (Option) When the Voice Scrambler feature is enabled, pressing the assigned PF button of the “Encryption” toggles the Scrambler on and off. Page 10 DVANCED PERATION VX-5500 Operating Manual FCC ID: K66VX-5500V ” Vertex Standard Co., Ltd.

  • Page 13: Optional Accessories

    Mobile Loud speaker (12 W Peak Power) MMB-79 Mobile Mounting Bracket MMB-77 Locking Mobile Mounting Bracket FIF-7 Inter face Board (for F2D-8, F5D-14, VTP-50, FVP-25) CN-6 Inter face Board (for Accessories) VX-5500 Operating Manual CCESSORIES FCC ID: K66VX-5500V Page 11 Vertex Standard Co., Ltd.
  • Page 14 FCC ID: K66VX-5500V Note: VX-5500 Operating Manual Page 12 Vertex Standard Co., Ltd.
  • Page 15 Operation is subject to the condition that this device does not cause harmful interference. Part 15.21: Changes or modifications to this device not expressly ap- proved by Vertex Standard could void the user’s authorization to oper- ate this device. VX-3200 O...
  • Page 16 FCC ID: K66VX-5500V Copyright 2003 VERTEX STANDARD CO., LTD. All rights reserved No portion of this manual may be reproduced without the permission of VERTEX STANDARD CO., LTD. Printed in Japan. Vertex Standard Co., Ltd.

This manual is also suitable for:
