SERVICE MANUAL
Servicing should be performed by only trained and qualified service personnel.
Contents
DP52848, N6ME, PRODUCT CODE 113015604

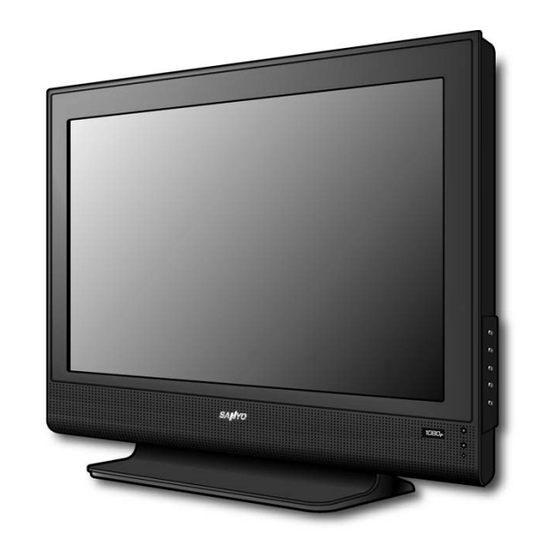

Remote Control Digital
Color Television
FILE NO.
DP52848
ORIGINAL VERSION
Chassis No. P52848-00
NOTE: Match the Chassis No. on
the unit's back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit's, additional Service
Literature is required. You
must refer to "Notices" to
the Original Service Manual
prior to servicing the unit.
Specifications
POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75Ω
RECEIVING CHANNEL . . . . . . . . . . . . . . . . . 2 - 13 (VHF),
REMOTE READY. . . . . . . . . 32 KEY REMOTE CONTROL
SOUND OUTPUT. . . . . . . . . . . . . . . . . . . . . . . . 5.0 W/CH
INTERMEDIATE FREQUENCY
PICTURE IF CARRIER . . . . . . . . . . . . . . . . . . 45.75MHz
SOUND IF CARRIER . . . . . . . . . . . . . . . . . . . 41.25MHz
COLOR SUB CARRIER . . . . . . . . . . . . . . . . . 42.17MHz
CABINET DIMENSIONS
WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1267.5mm
HEIGHT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 909.3mm
DEPTH INCLUDING BASE . . . . . . . . . . . . . . . 292.1mm
REFERENCE No.
(U.S.A.)
(CANADA)
330W (AVG.)
UHF/VHF/CATV
DIGITAL
14 - 69 (UHF),
01, 14-94, 95-135 (CATV)
1-135 (DIGITAL)
SM
780154
