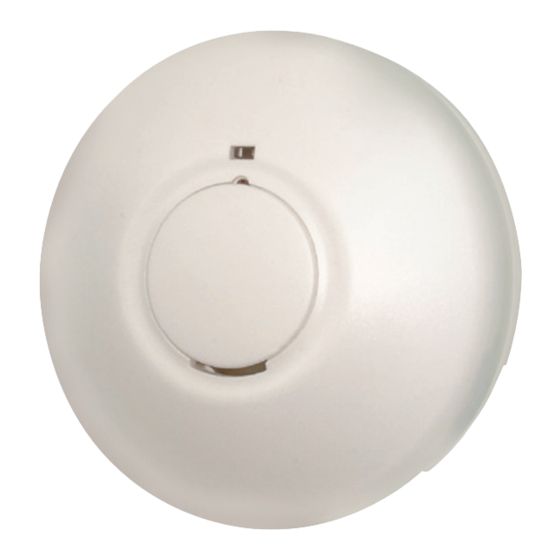

Eclipse SGD1236 Installation Instructions

BATTERY REPLACEMENT
Always TURN OFF the A.C. supply to the Smoke Alarm before replacing the battery. Replace the battery at least once
annually, or immediately when the low battery signal sounds once a minute, even though the Smoke Alarm is receiving
A.C. power. Test the alarm for correct operation using the test facility whenever the battery is replaced.
WARNING: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. THE USE OF BATTERIES
OTHER THAN THOSE RECOMMENDED ON THE BACK OF THE SMOKE ALARM MAY BE DETRIMENTAL TO ITS
OPERATION
The battery should only be replaced by a qualified electrician or similarly qualified person.
• Turn off the A C power supply to the Smoke Alarm.
• Gently unlock the detector unit from the base by push back the snap lock with a screw driver and turn the alarm unit
clockwise to release it. See Figure 5 and Figure 6
• Remove the battery from the compartment.
• Insert a new, healthy 9V battery. NOTE POLARITY OF CONNECTIONS. Ensure the metal tab is fully depressed
when the battery has been fitted
• Using the Push-to-Test button, test the smoke alarm to verify 9V DC battery back-up. See "TESTING YOUR
SMOKE ALARM"
• Reattached the Smoke alarm to the mounting plate by rotating the alarm unit counter-clockwise until the it snaps into
place. (see Figure 4)
• Turn on the AC power and test the Smoke Alarm using the Push-to-Test button. See "TESTING YOUR SMOKE
ALARM"
IMPORTANT SAFEGUARDS
• Installation of your smoke alarm is only one step in your safety plan. Other important steps should be taken to
further improve your safety:-
• Install the smoke alarm properly, following this instruction leaflet
• Test your smoke alarm weekly
• Replace the battery immediately once depleted
• Do not smoke in bed
• Keep matches & lighters away from children
• Store flammable materials in a proper manner away from naked flames or sparks
• Maintain emergency equipment such as Fire Extinguishers, escape ladders etc and ensure all occupants know how
to use them correctly.
• Plan an escape route/s from your building in advance and ensure all occupants are aware of them. Re-enforce this
awareness periodically through-out the year.
• Make sure escape routes remain free of any obstructions.
WARNING: IF THERE IS ANY QUESTION AS TO THE CAUSE OF AN ALARM IT SHOULD BE ASSUMED THAT
THE ALARM IS DUE TO AN ACTUAL FIRE AND THE DWELLING SHOULD BE EVACUATED IMMEDIATELY. THIS
PRODUCT IS A SEALED UNIT AND CANNOT BE REPAIRED – IF THE UNIT IS TAMPERED WITH IT WILL INVALIDATE
THE WARRANTY. IF THE UNIT IS FAULTY PLEASE RETURN IT TO YOUR ORIGINAL SUPPLIER WITH YOUR PROOF
OF PURCHASE.
YOUR SMOKE ALARM WARRANTY
These smoke alarms are warranty to be free from defects in materials and workmanships under normal use and
service for a period of five years from date of purchase. The company will not be obligated to repair or replace parts
which are found to be in need of repair because of misuse, damage or alterations occur after the date of purchase.
Send the Smoke Alarm with proof of purchase, postage and return postage prepaid, to local distributor. The liability of
the company arising from the sale of this smoke alarm shall not in any case exceed the cost of replacement of smoke
alarm and in no case shall the company be liable for consequential loss or damages resulting from the failure of the
smoke alarm.
SOLAS GEAL DISTRIBUTION LTD. SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY
OR PROPERTY DAMAGE, OR ANY SPECIAL INCIDENTAL, CONTINGENT OR CONSEQUENTIAL
DAMAGE OF ANY KIND RESULTING FROM A FIRE. THE EXCLUSIVE REMEDY FOR BREACH OF
THE LIMITED WARRANTY CONTAINED HEREIN IS THE REPAIR OR REPLACEMENT OF THE
DETECTIVE PRODUCT AT SOLAS GEAL DISTRIBUTION LTD. OPTION. IN NO CASE SHALL
SOLAS GEAL DISTRIBUTION LTD.'S LIABILITY UNDER ANY OTHER REMEDY PRESCRIBED
BY LAW EXCEED THE PURCHASE PRICE. YOUR SMOKE ALARMS IS NOT A SUBSTITUTE FOR
PROPERTY, DISABILITY, LIFE OR OTHER INSURANCE OF ANY KIND. APPROPRIATE COVERAGE
IS YOUR RESPONSIBILITY. CONSULT YOUR INSURANCE AGENT. THIS DOES NOT AFFECT YOUR
STATUTORY RIGHTS.
This alarm is only suitable for single occupancy private dwellings only and not intended for multi occupancy private
dwellings or commercial or industrial dwellings.
Unit 7/8 Ashbourne Business Centre, Ballybin Road, Ashbourne, Co. Meath, Ireland, A84 YP58,
For more information contact:
Phone: 00353 1 835 7447
Unit 32 Junction One Business Park, Valley Road, Birkenhead, Merseyside, UK, CH41 7ED,
0330 551 7000
UK Ph:
Website:
www.sgd.ie
eclipse
220~240V
AC OPERATED
INTERCONNECTABLE
PHOTOELECTRIC SMOKE
ALARM
MODEL: SGD1236
(With 9V Battery Back-up)
KM 638574
CLASS II
BS
2797-CPR-638573
APPARATUS
EN14604:2005
Main Features :
• Photoelectric Sensor For Slow
Smoldering Fires
• Power / Alarm Test Button
• HUSH FEATURE
• Battery Back-Up
• Low Battery Warning
• INTERCONNECTABLE (UP TO 20 HEAT
AND/OR SMOKE ALARMS)
• Kitemark Approved – BS EN14604:
2005
• Supplied with Fixing Kit
• Loud 85dB Alarm Signal
• Fault signal
This instruction leaflet contains important information on
the correct installation and operation of your smoke alarm.
Read this leaflet fully before attempting installation and
retain for future reference.
SPECIFICATION
Power Source : 220-240Vac~ 50-60Hz with 9V
battery back-up (battery included)
Battery Back-up : 9V DC Carbon Zinc Battery (Peak
Installation Instructions
240v AC Operated Interconnectable
Photoelectrical Smoke Alarm (with 9v battery Backup)
PRODUCT CODE: SGD1236
Battery Back-up Life : In the event of a break in the mains supply
the battery will give detector operation for
1 month minimum
Operation Current : <40mA operation (In Alarm)
Sensitivity to smoke : 0.08-0.18db/m
Operation Temperature : 0 C - 40 C
o o
Ambient Humidity : 10%-90%
This instruction leaflet contains important information on the correct installation
This instruction leaflet contains important information on the correct installation and operation of your smoke alarm. Alarm Sound Level : 85 Decibels at 3 metres
and operation of your smoke alarm. Read this leaflet fully before attempting installation
Read this leaflet fully before attempting installation and retain for future reference. Interconnect facility : 20 smoke detector over 150
and retain for future reference.
metres maximum
MAIN FEATURES Approved to : BS EN14604:2005
MAIN FEATURES
• Photoelectric Sensor For Slow Smoldering Fires
• Photoelectric Sensor For Slow Smoldering Fires
• Power / Alarm Test Button PRODUCT DESCRIPTION
• Power / Alarm Test Button
• HUSH FEATURE
SGD1236 is a multiple station photoelectric smoke alarm and can
• HUSH FEATURE
• Battery Back-Up
be connected to other alarms of the same make and type. This
• Battery Back-Up
• Low Battery Warning
interconnect feature allow up to 20 units to be connected together
• Low Battery Warning
• INTERCONNECTABLE (UP TO 20 HEAT AND/OR SMOKE ALARMS)
over 150 metres maximum, using the single white wire, and thus
• INTERCONNECTABLE (UP TO 20 HEAT AND/OR SMOKE ALARMS)
• Kitemark Approved – BS EN14604: 2005
allowing all alarms to sound when any one is activated.
• Kitemark Approved – BS EN14604: 2005
• Supplied with Fixing Kit
• Supplied with Fixing Kit
• Loud 85dB Alarm Signal
Note: This smoke alarm cannot be connected to any other
• Loud 85dB Alarm Signal
• Fault signal
device such as a fire alarm panel.
• Fault signal

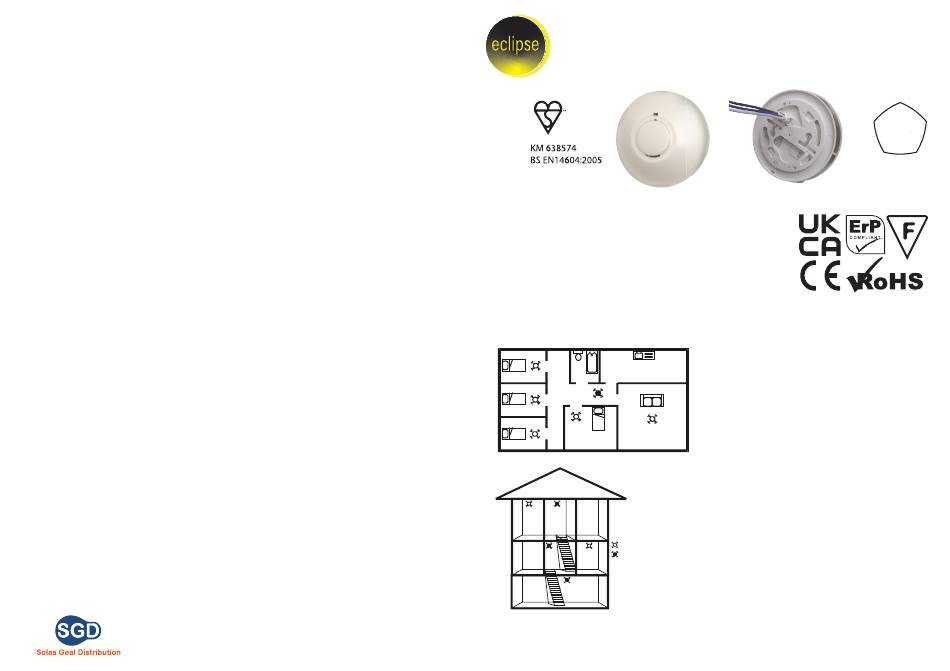

FIGURE 1 - SINGLE STOREY DWELLING
BATHROOM
BEDROOM
KITCHEN
BEDROOM
HALL
BEDROOM
LIVING
BEDROOM
ROOM
FIGURE 2 - 2/3 STOREY DWELLING
BEDROOM LANDING BATHROOM
KEY
MAXIMUM PROTECTION
MINIMUM PROTECTION
LIVING
KITCHEN HALL
ROOM
BASEMENT
All the Smoke Alarms should be interconnected to ensure the
early warning will be heard, particularly by somebody sleeping. A
LOCATING THE SMOKE ALARM
properly designed early warning fire system ensures the alarm is
If your dwelling is multi-storey, for minimum protection one alarm should be fitted at the bottom of the staircase with
given before the escape routes become blocked with smoke.
LOCATING THE SMOKE ALARM
If your dwelling is multi-storey, for minimum protection one alarm
should be fitted at the bottom of the staircase with further alarms fitted
on each upstairs landing. This includes basements but excludes crawl
spaces and unfinished attics. See Figure 2 for examples.
NOTE: For maximum protection an alarm should be fitted in every
room (except kitchen, bathroom and garage).
DO NOT FIT AN ALARM IN THE KITCHEN OR BATHROOM, as
cooking fumes or steam may trigger the alarm.
DO NOT FIT ALARM IN GARAGE, as exhaust fumes are likely to set
it off.
POSITIONING THE SMOKE ALARM
Ceiling Mounting
As hot smoke rises and spread out, it is advisable to mount on a
ceiling in a central position. Avoid areas where there is no air
circulation. E.g. Corners of rooms and keep away from items
which may prevent the free flow of air. Place the unit at least 300
mm from and light fitting or decorative object which might obstruct
smoke entering the alarm. Keep at least 300 mm away from walls.
See Figure 3i.
SPECIFICATION
Wall Mounting
Power Source: 22 0- 240Vac~ 50-60Hz with 9V battery back-
Do not mount tight into the corners. Put the top edge of your
up (battery included)
smoke alarm between 150 and 300mm below the ceiling. Keep at
Battery Backup: 9V DC Carbon Zinc Battery (Peak Power
least 300mm from room corners. See Figure 3i
1604E Golden Power 1604D, Gold Peak
1604P), Alkaline Battery (Gold Peak 1604A, Energizer 522,
Duracell MN1604) or Lithium Battery (EVE CR9V/P) On a Sloping Ceiling
Battery Backup Life: In the event of a break in the mains
In areas with sloping or peaked ceilings install your Smoke Alarm
supply the battery will give detector operation for 1
900mm from the highest point measured horizontally because
month minimum
"dead air" at the apex may prevent smoke from reaching the unit.
Operation Current: <40mA operation (In Alarm)
See Figure 3ii.
Sensitivity to smoke:0.08-0.18db/m
Operation Temp: 0°C - 40°C
Figure 3i - Positioning the smoke / heat detector Figure 3ii
Ambient Humidity: 10%-90%
30 cm
CEILING
Alarm Sound Level: 85 Decibels at 3 metres
Interconnect facility: 20 smoke detector over 150 metres
DEAD AIR SPACE,
Do not mount
within this area
maximum BEST IN CENTRE OF ROOM
Approved to: BS EN14604:2005
900 mm
(3 ft)
PRODUCT DESCRIPTION
SGD1236 is a multiple station photoelectric smoke alarm and
can be connected to other alarms of the same make and type.
This interconnect feature allow up to 20 units to be connected
WALL
together over 150 metres maximum, using the single white
wire, and thus allowing all alarms to sound when any one is
Areas to be avoided include the following :-
activated.
Note: This smoke alarm cannot be connected to any other Situations where the temperature may fall below 0℃ or

device such as a fire alarm panel.
rise above 40℃
Humid areas such as bathrooms, kitchens, shower rooms

All the Smoke Alarms should be interconnected to ensure the
where the relative humidity may exceed 90%
early warning will be heard, particularly by somebody sleeping.
Near a decorative object, door, light fitting, window molding

A properly designed early warning fire system ensures the
etc., that may prevent smoke from entering the alarm.
alarm is given before the escape routes become blocked with
Fume filled environments such as garages. Exhaust gases
smoke. 
may cause false alarms.
Adjacent to or directly above hot components such as

radiators or wall vents that can affect the direction of air
currents.
5
Do not

years
the alar
Quality
Assurance
INSTALLI
WARNING
wiring by a
IEE Regulat
The circuit
permanent
normal user
WARNING :
attached to
instructions
Figure A
COMPLIANT
! Important
Brown, Blue
above. If th
color order
store imme
The Smoke
alarm or inte
All intercon
single powe
A common n
Do not conn
Disconn

used.
Having

suitable
other e
mountin
Unlock

with a s
it. See F
Fix mou

Strip the

Connec

intercon
single s
Ensure
The ala

