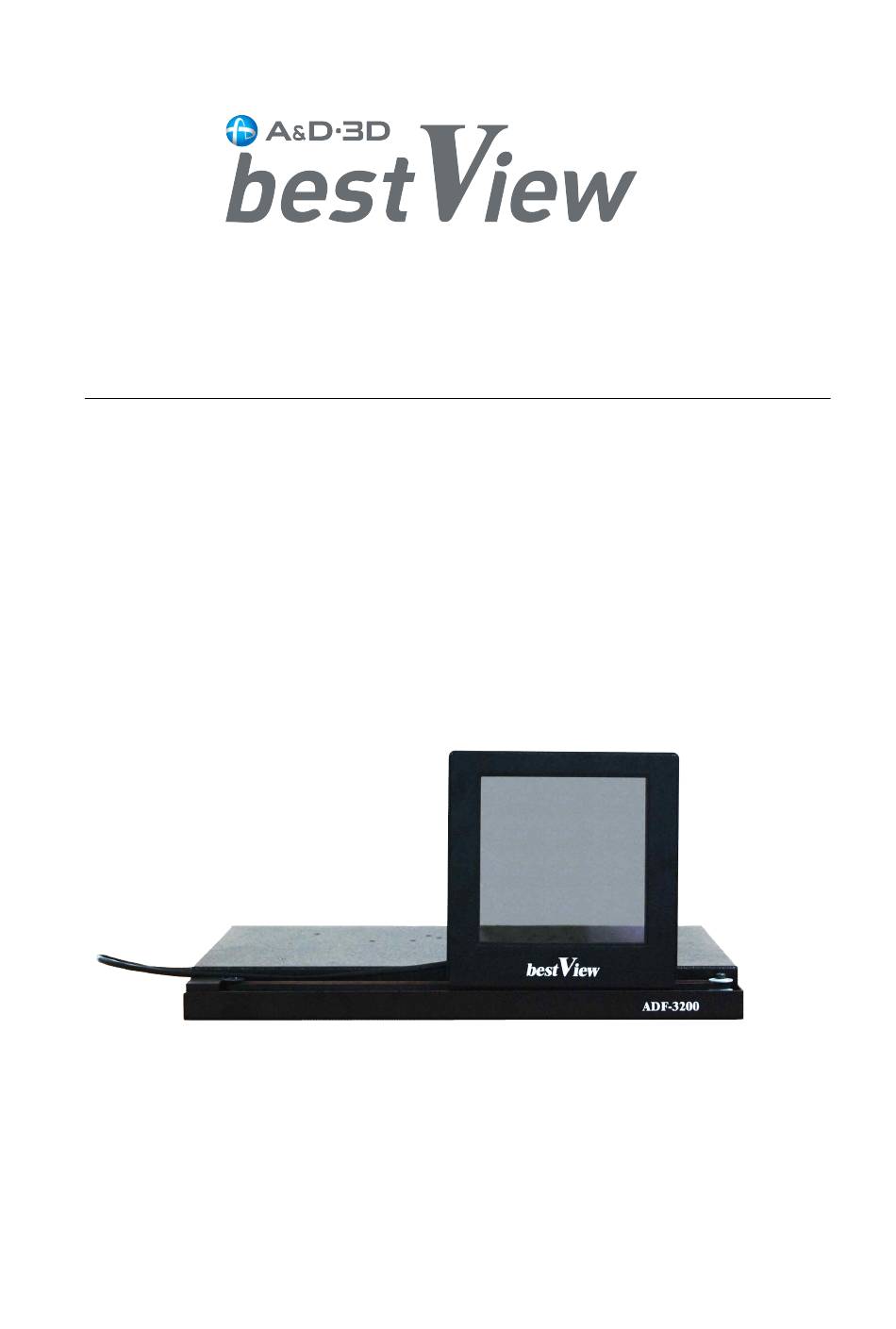

- Page 1 Operating Instructions Functional Manual Digital 3D Filter for 3D DLP Projector ADF-3200 / 3200A Model. ADF-3210 / 3210A ADF-3220 / 3220A Date : DEC. 18th, 2013...
- Page 2 ADF-3200 Installation and Operation Guide A&D 3D Co., Ltd. - Analogue and Digital 3D Head Office ： 209 Multimedia Center, Chungnam Techno Park, 511, Jiksan-eup, Seobuk-gu, Cheonan-city, Chungnam-do, 331-858, KOREA Phone : +81-41-589-0790 Fax : +81-41-589-0799 Email : and3d@andkr.co.kr eric@andkr.co.kr Website : http://www.bestviewsystem.com http://www.andkr.co.kr copyright@2013 A&D 3D Co., Ltd.
-
Page 3: Table Of Contents
ADF-3200 Installation and Operation Guide Contents 1. Overview ADF-3200 technology highlights • • • • • • • • • • • • • • • • 4 1-2 About this manual • • • • • • • • • • • • • • • • • • • • • • • • • • • • 4 ADF-3200 requirements •... - Page 4 ADF-3200 Installation and Operation Guide 5. Maintenance 5-1 Cleaning Dust • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 18 5-2 Fingerprints and Smudges •...
-
Page 5: Overview
ADF-3200 Installation and Operation Guide 1. OVERVIEW ADF-3200 TECHNOLOGY HIGHLIGHTS No delicate alignment and installation The bestView ADF-3200 is a polarization modular that can be placed simply with your DLP 3D-Ready projector. Change over 2D to 3D and 3D to 2D simply Practical design allows the user to switch between 2D and 3D DLP projector presentations using the same projector. -
Page 6: Adf-3200 Requirements
ADF-3200 Installation and Operation Guide ADF-3200 REQUIREMENTS In order to use bestView ADF-3200 system. The following equipments are required for proper functioning of the ADF-3200. You must need a polarized silver screen, circular polarizing passive 3D glasses, 3D projector, 3D player (computer or Blu-ray disk player) and 3D contents. -
Page 7: Description Of Adf-3200
ADF-3200 Installation and Operation Guide 2. DESCRIPTION OF ADF-3200 2-1 CHARACTERISTICS QUALITY High speed switching technology Designed for high bright projectors with big size of aperture High bright images with high bright effect of panel Very low refresh time and channel cross-talk No panel delay time EFFICIENCY Easy setup for use with suitable single-lens 3D projectors both... -
Page 8: Package
ADF-3200 Installation and Operation Guide 2-2 PACKAGE ① bestView ADF-3200 system ② Premium passive 3D glasses ADG-3200 (50 PCs) ③ Power adapter (AC 110~240V / DC 24V) ④ Power cable (AC 220V) ⑤ RGB cable (D-Sub to D-Sub) ⑥ VESA MINI DIN Cable ⑦... -
Page 9: Descriptions
ADF-3200 Installation and Operation Guide 2-3 DESCRIPTIONS 3D filter bestView system body Panel drive cable 3D filter moving pulley 3D filter moving motor Height adjustment screw Panel drive cable Right moving button Left moving button Panel drive signal out L/R mode change button 3D sync in(VESA 3D) RGB(D-Sub) image in(DLP Link) Remote control receiver in... - Page 10 ADF-3200 Installation and Operation Guide - 3D filter : separator left and right images from each other - Panel drive cable : connecting between side of body and 3D-filter - Right moving button : for moving 3d-filter to the right - Left moving button : for moving 3-filter to the left - Panel drive signal out : connecting one side of panel drive cable - L/R mode change button : left &...
-
Page 11: Setup & Operations
ADF-3200 Installation and Operation Guide 3. SETUP & OPERATIONS 3-1 PREPARATION BEFORE MOUNTING ON THE PROJECTOR. The procedure in this section will help installers to set up polarization modular on to projector and test 3D presentation. - Before going ahead with this installation, please carefully read the previous instructions. -
Page 12: Check The Panel Driver Cable
ADF-3200 Installation and Operation Guide 3-1-2 CHECK THE PANEL DRIVE CABLE In order to operate exactly, installers have to check the panel drive cable. The cable connects between terminal of panel drive signal out and polarization window panel. The cable connects tightly both sides with clicking noises. -
Page 13: Ceiling Mount
ADF-3200 Installation and Operation Guide 3-1-4 CEILING MOUNT When installers set up projector and bestView ADF-3200 on the ceiling, The bestView must be located between projector and projector bracket which mounted on the ceiling. The projector and bestVew must be installed upside down. -
Page 14: Connection
ADF-3200 Installation and Operation Guide 3-2 CONNECTION 3-2-1 SYSTEM CONFIGURATION System Configuration is like below. 3-2-1-1 Computer connecting system bestView Projector Computer 3D glasses Silver screen ① Connecting RGB cable between computer and projector. ② Connecting RGB cable between projector and bestView. 3-2-1-2 Blu-ray disc player connecting system bestView Blue-ray Player... -
Page 15: Cable Connection
ADF-3200 Installation and Operation Guide 3-2-2 CABLE CONNECTION ① ② ③ ④ ⑤ ⑥ ⑦ (only DLP Link type 3D projector) ① DC 24V IN jack ② Remote control receiver cable ③ RGB cable between projector and bestView ④ RGB cable between computer and projector ⑤... - Page 16 ADF-3200 Installation and Operation Guide ① ② ③ ④ ⑤ (VESA 3D sync jack in 3D DLP Projector) ① DC 24V IN jack ② Remote control receiver cable ③ VESA DIN cable between projector and bestView ④ RGB cable between computer and projector ⑤...
-
Page 17: Installation
ADF-3200 Installation and Operation Guide 3-3 INSTALLATION The 3D-filter of vestView ADF-3200 should be placed directly in front of the lens of the projector at a distance such that the image from the projector covers as much as possible the entire area of the 3D filter in order to minimize thermal heating effects. -
Page 18: Starting & Ending
ADF-3200 Installation and Operation Guide 3-4 STARTING & ENDING 3-4-1 SETTING No deliberate adjustment is needed for standard use. You have only to connect power source through DC(24V) adaptor from AC power supply and connect RGB cable between RGB image in port of vestView and RGB out port of projector. -
Page 19: Trouble Shooting
ADF-3200 Installation and Operation Guide 4. TROUBLE SHOOTING ISSUE CAUSE RESOLUTION • Projection lens is out of focus • Focus projection lens Blurry picture, low contrast, • Fingerprints or other blemishes • Clean projection lens and 3D-filter “soft” image on projection lens or 3D-filter •... -
Page 20: Maintenance
ADF-3200 Installation and Operation Guide 5. MAINTENANCE A small amount of dust or dirt on 3D-filter(polarized panel) has minimal effect on image quality. Clean 3D-filter only when dust, dirt, oil or other marks are obvious. When doing so, clean the glass according to the instructions in the following sections : Never touch the optical surfaces with bare hands. -
Page 21: Technical Specifications
ADF-3200 Installation and Operation Guide 6. TECHNICAL SPECIFICATIONS SPECIFICATION UNIT DATA Aperture 122 X 122 Maximum power of projector ANSI Lumen 8,500 Maximum switching speed Frame Optical light efficiency Efficiency through glasses Channel cross-talk Panel refresh time (Dark time) Switch delay time Operating temperature ℃... -
Page 22: Others
ADF-3200 Installation and Operation Guide 7. OTHERS 7-1 LED SIGNALS Red LED : The system is powered but not synchronized Green LED : signal of 3D synchronization (greater than 76Frame) 7-2 GUARANTEE The bestView ADF-3200 is guaranteed to the original purchaser for 24 months according to Korean legislation. -
Page 23: Customer Support Center
ADF-3200 Installation and Operation Guide - Use a clean soft cloth when cleaning the panel of 3D-filter to avoid scratching, especially on the panel surface. - Alway transport the bestView system in a rigid case to avoid scratching the panel and to prevent system body from breaking. - Do not expose the bestView ADF-3200 system to water.
