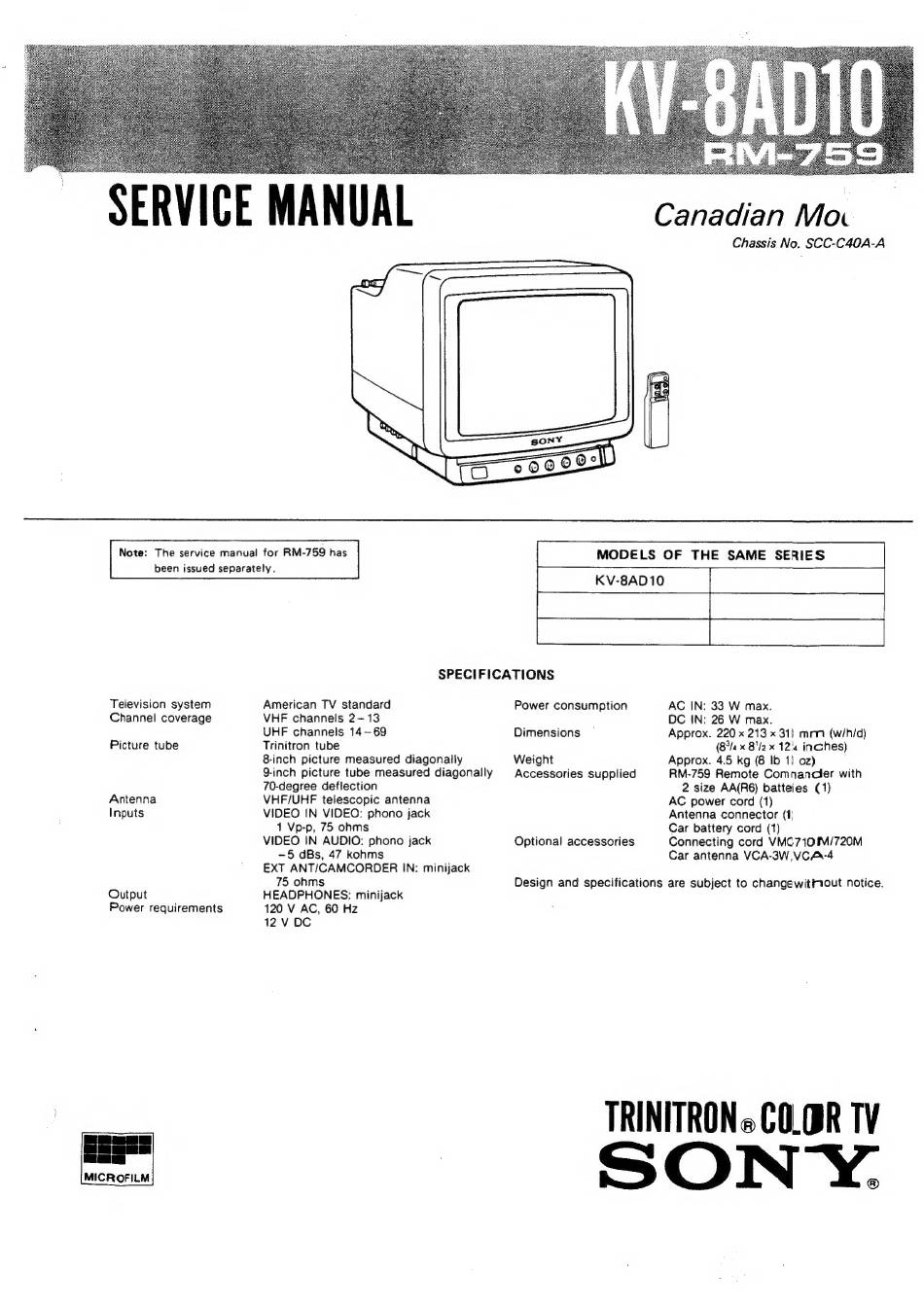

Sony TRINITRON KV-8AD10 Service Manual

MICROFILM
Canadian Mav
Chassis No. SCC-C40A-A
Note: The service manual for RM-759 has
been issued separately.
Television system
Channel coverage
Picture tube
Antenna
Inputs
Output
Power requirements
SPECIFICATIONS
American TV standard
VHF channels 2-13
UHF channels 14-69
Trinitron tube
8-inch picture measured diagonally
9-inch picture tube measured diagonally
70-degree deflection
VHF/UHF telescopic antenna
VIDEO IN VIDEO: phono jack
1 Vp-p, 75 ohms
VIDEO IN AUDIO: phono jack
~5 dBs, 47 kohms
EXT ANT/CAMCORDER IN: minijack
75 ohms
HEADPHONES: minijack
120 V AC, 60 Hz
12 V DC
Power consumption
Dimensions
Weight
Accessories supplied
Optional accessories
MODELS OF THE SAME SERIES
KV-8AD10
AC IN: 33 W max.
DC IN: 26 W max.
Approx. 220 x 213 x 31) mmn (w/h/d)
(8°/4 x 8'/2 x 12's inches)
Approx. 4.5 kg (8 Ib 1! oz) ,
RM-759 Remote Comnancler with
2 size AA(R6) batteies (1)
AC power cord (1)
Antenna connector (1
Car battery cord (1)
Connecting cord VMC710M/720M
Car antenna VCA-3W,VCA.-4
Design and specifications are subject to changewittnout notice.
TRINITRON.. COLOR TV
SONY.
