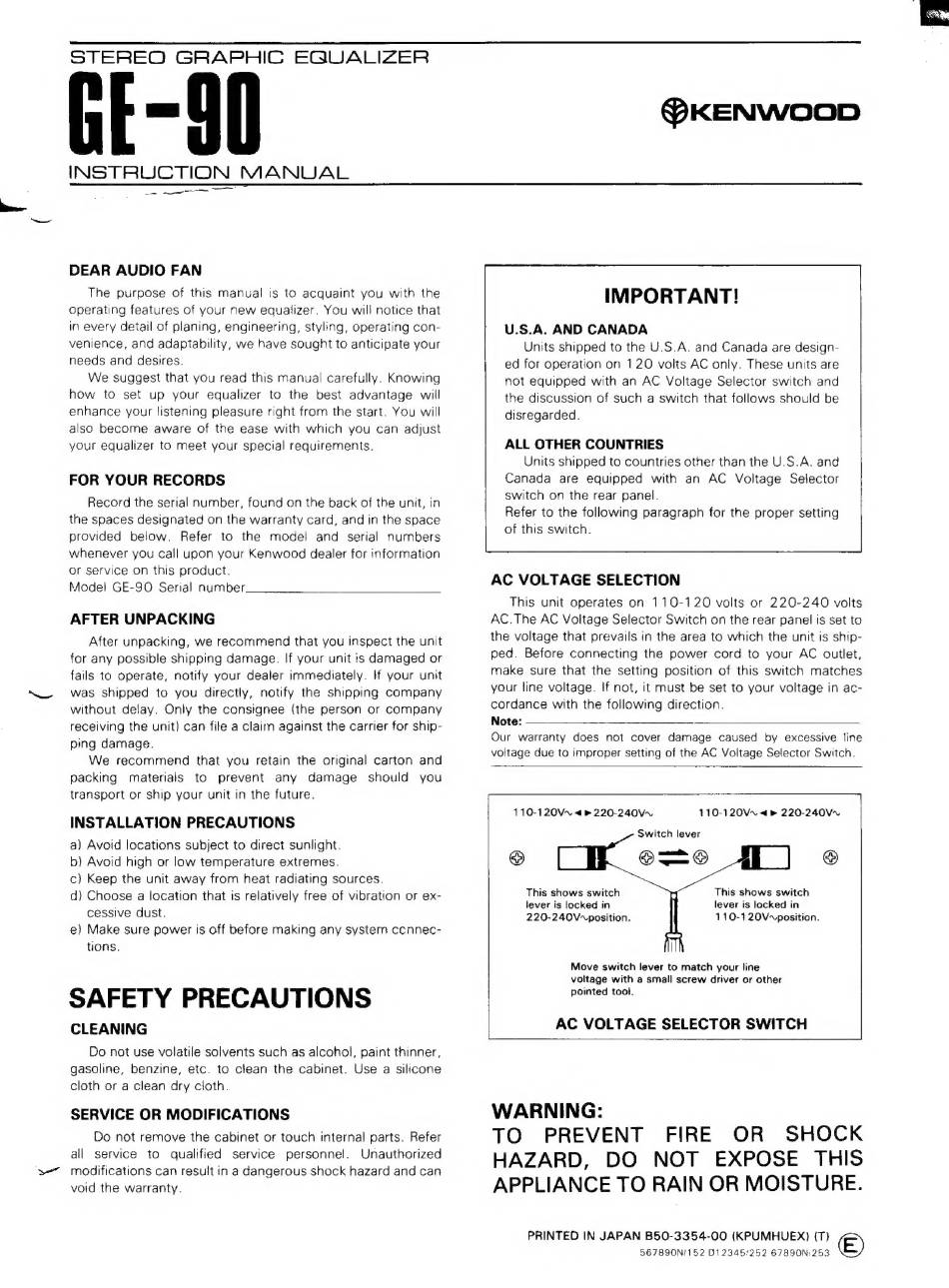

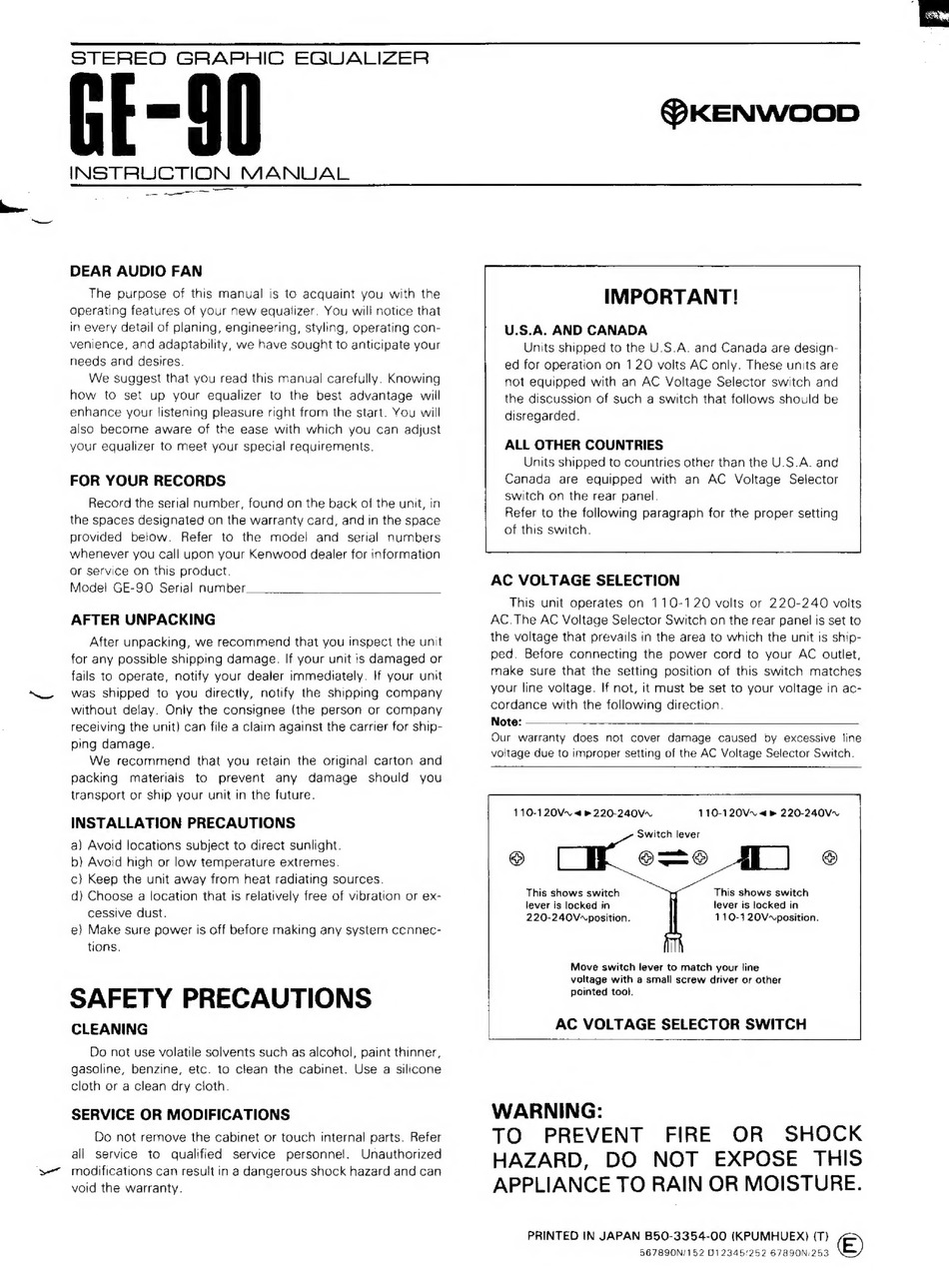

STEREO
GRAPHIC
EQUALIZER
INSTRUCTION
MANUAL
@KENWOOD
—
oo
DEAR AUDIO FAN
The purpose
of this manual
is to acquaint you with the
operating features of your new equalizer. You will notice that
in every detail of planing, engineering, styling, operating con-
venience, and adaptability, we have sought to anticipate your
needs and desires.
We suggest that you read this manual! carefully. Knowing
how
to set up your
equalizer
to the best advantage
will
enhance your {listening pleasure right from the start. You will
also become
aware of the ease with which you can adjust
your equalizer to meet your special requirements.
FOR YOUR RECORDS
Record the serial number, found on the back of the unit, in
the spaces designated on the warranty card, and in the space
provided
below.
Refer
to the
model
and
serial
numbers
whenever you call upon your Kenwood dealer for information
or service on this product.
Model GE-90 Serial number
AFTER UNPACKING
After unpacking, we recommend that you inspect the unit
for any possible shipping damage. If your unit is damaged or
fails to operate, notify your dealer immediately.
If your unit
was shipped to you directly, notify the shipping company
without delay. Only the consignee (the person or company
receiving the unit) can file a claim against the carrier for ship-
ping damage.
We recommend
that you retain the original carton and
packing
materiais
to
prevent
any
damage
should
you
transport or ship your unit in the future.
INSTALLATION PRECAUTIONS
a) Avoid locations subject to direct sunlight.
b} Avoid high or low temperature extremes.
c} Keep the unit away from heat radiating sources.
d) Choose a location that is relatively free of vibration or ex-
cessive dust.
e) Make sure power is off before making any system ccnnec-
tions.
SAFETY PRECAUTIONS
CLEANING
Do not use volatile solvents such as alcohol, paint thinner,
gasoline, benzine, etc. to clean the cabinet.
Use a silicone
cloth or a clean dry cloth.
SERVICE OR MODIFICATIONS
Do not remove the cabinet or touch internal parts. Refer
all service
to
qualified
service
personnel.
Unauthorized
modifications can result in a dangerous shock hazard and can
void the warranty.
IMPORTANT!
U.S.A. AND CANADA
Units shipped to the U.S.A. and Canada are design-
ed for operation on 120 volts AC only. These units are
not equipped with an AC Voltage Selector switch and
the discussion of such a switch that follows should be
disregarded.
ALL OTHER COUNTRIES
Units shipped to countries other than the U.S.A. and
Canada
are equipped
with an AC Voltage
Selector
switch on the rear panel.
Refer to the following paragraph for the proper setting
| of this switch.
AC VOLTAGE SELECTION
This unit operates on 110-120 volts or 220-240 voits
AC.The AC Voltage Selector Switch on the rear panel is set to
the voltage that prevails in the area to which the unit is ship-
ped. Before connecting the power cord to your AC outlet,
make sure that the setting position of this switch matches
your line voltage. If not, it must be set to your voltage in ac-
cordance with the following direction.
Note:
Our warranty
does
not cover
damage
caused
by excessive
line
voltage due to improper setting of the AC Voltage Selector Switch.
110-120V~ < » 220-240V~
110-1 20V~ <m 220-240V~
Switch lever
met)
This shows switch
lever is locked in
110-120V~position.
This shows switch
lever is locked in
220-240V~position.
Move switch lever to match your line
voltage with a small screw driver or other
pointed tool.
AC VOLTAGE SELECTOR SWITCH
WARNING:
TO
PREVENT
FIRE
OR
SHOCK
HAZARD,
DO
NOT
EXPOSE
THIS
APPLIANCE TO RAIN OR MOISTURE.
PRINTED IN JAPAN B50-3354-00 (KPUMHUEX) (T}
567890N/152 D12345/252 67890N:253
