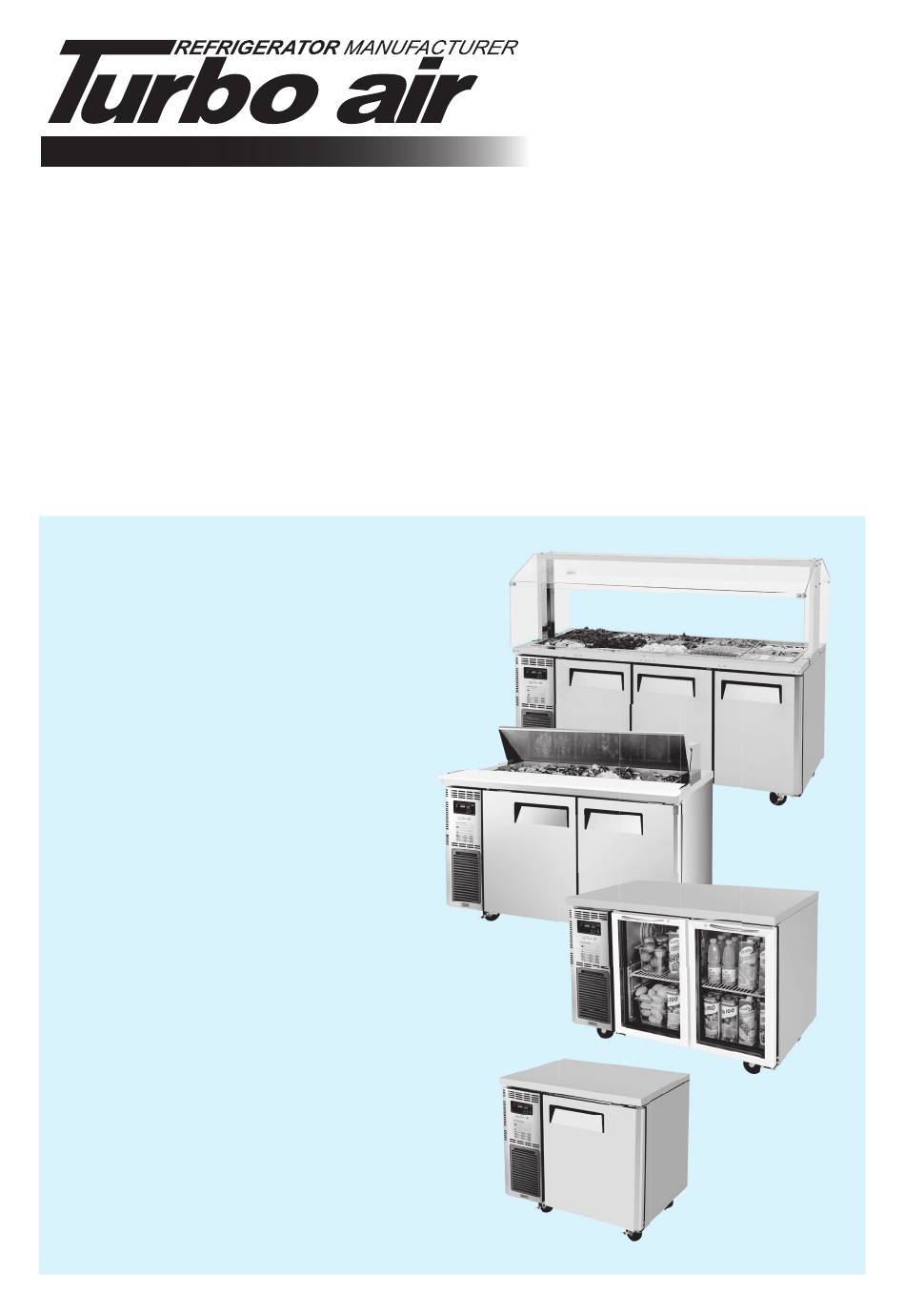

Turbo Air Speeds up the Pace of Innovation
J Series
Refrigerators & Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment.
BUFFET DISPLAY TABLES
JBT-36-N
JBT-48-N
JBT-60-N
JBT-72-N
SANDWICH/SALAD UNITS
JST-36-N
JST-48-N
JST-60-N
JST-72-N
UNDERCOUNTER REFRIGERATORS
JUR-36-N6 JUR-36S-N6 JUR-48-G-N
JUR-48-N6 JUR-48S-N6 JUR-60-G-N
JUR-60-N6 JUR-60S-N6 JUR-72-G-N
JUR-72-N6 JUR-72S-N6

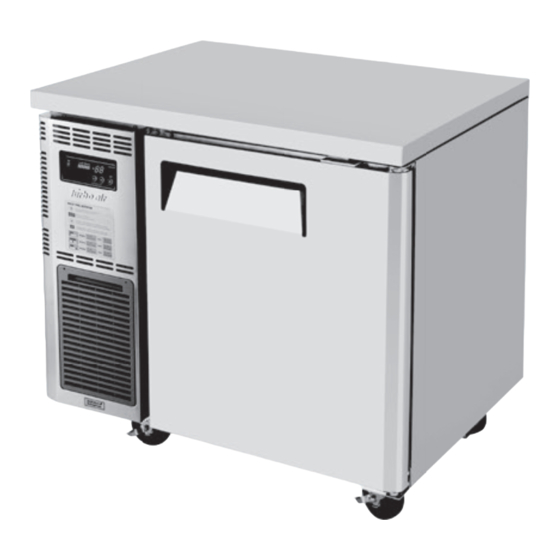

JUR-44D-N
JUR-67D-N
JUR-93D-N
UNDERCOUNTER FREEZERS
JUF-36-N JUF-36S-N JUF-44D-N
JUF-48-N JUF-48S-N JUF-67D-N
JUF-60-N JUF-60S-N JUF-93D-N
DUAL TEMP. UNDERCOUNTERS
JURF-48-N
JURF-60-N
JURF-72-N
N
N
N
www.turboairinc.com
Advertisement
Table of Contents
Related Manuals for Turbo Air JUR-44D-N
Summary of Contents for Turbo Air JUR-44D-N
- Page 1 Turbo Air Speeds up the Pace of Innovation J Series Refrigerators & Freezers Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment. BUFFET DISPLAY TABLES JBT-36-N JBT-48-N JBT-60-N JBT-72-N SANDWICH/SALAD UNITS JST-36-N...
-
Page 2: Table Of Contents
TABLE OF CONTENTS NOTICE FOR HYDROCARBON REFRIGERATION UNITS 4 - 5 IMPORTANT SAFETY INFORMATION 6 - 9 SPECIFICATIONS / SERIAL NUMBER 10 -11 NOTICE TO CUSTOMER / INSTALLATION PART NAME & FUNCTION DISPLAY PANELS 14 - 15 CAUTION 16 - 19 INSTALLATION &... -
Page 3: Notice
NOTICE • This equipment is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of this equipment and the hazards involved by a person responsible for their safety. •... -
Page 4: For Hydrocarbon Refrigeration Units
FOR HYDROCARBON REFRIGERATION UNITS WARNING This unit uses R-290 (propane), or R-600a (isobutane) as a refrigerant. These hydrocarbon refrigerants are highly environmentally compatible but also are flammable and combustible. Please read this manual thoroughly before installing and operating the unit. Please take cautious measures to avoid risk of fire or explosion. PLEASE REFER TO THE LABEL INSIDE THE CABINET TO CHECK REFRIGERATION TYPE AND VOLUME. - Page 5 FOR HYDROCARBON REFRIGERATION UNITS WARNING • Handle the unit with care in order to avoid any serious damage to the refrigeration system. • The refrigerant tubing, condenser, and evaporator coils are prone to damage while handling, moving, installing, and cleaning the unit, which may lead to fire or even explosion.
-
Page 6: Important Safety Information
IMPORTANT SAFETY INFORMATION SAFETY PRECAUTIONS To avoid any risk of fire, explosion, electric shock, personal injury, material damage or incorrect use of the appliance, be sure to observe the following safety precautions (After reading these owner’s manual instructions, please keep the manual booklet in a safe place for reference. - Page 7 IMPORTANT SAFETY INFORMATION INSTALLATION & USAGE WARNING • Do not install the unit in a damp place where it could be splashed with water. Incorrect insulation of the electrical parts may cause fire or electric shock. • Do not plug several appliances into the same sockets. This could cause fire due to overheating.
- Page 8 IMPORTANT SAFETY INFORMATION INSTALLATION & USAGE CAUTION • There is a risk of death from suffocation if a child puts the packing materials on his or her head. • Do not store any articles on top of the appliance. Articles may fall while opening or closing the door, and could cause personal injury or material damage.
- Page 9 IMPORTANT SAFETY INFORMATION PROPER DISPOSAL OF OLD APPLIANCE For environmental purposes, refrigeration appliances must be properly disposed. This applies to your old appliance, and at the end of its service life, for your new appliance as well. WARNING Before disposing of old appliances, make them inoperable. Remove plug from mains, severe the power cable, and remove or destroy any snap or latch closures.
-
Page 10: Specifications / Serial Number
R-600a 250 lbs. JUR-72-N6 115V/60Hz R-600a 295 lbs. Undercounter Refrigerators - Extra Deep MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT JUR-44D-N 115V/60Hz R-290 290 lbs. JUR-67D-N 115V/60Hz R-290 400 lbs. JUR-93D-N 1/2+ 115V/60Hz R-290 550 lbs. Undercounter Refrigerators - Narrow MODEL COM H.P. - Page 11 SPECIFICATIONS Undercounter Refrigerators - Glass Door MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT JUR-48-G-N 115V/60Hz 272 lbs. R-290 JUR-60-G-N 115V/60Hz R-290 312 lbs. JUR-72-G-N 115V/60Hz R-290 370 lbs. Undercounter Freezers MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT JUF-36-N 115V/60Hz R-290 197 lbs.
-
Page 12: Notice To Customer / Installation
Insufficient space causes vibration noise, inefficient refrigeration, damage to the refrigeration system, and the waste of electricity (Turbo Air recommends that the rear of the unit should be no less than 5 inches from the wall). -
Page 13: Part Name & Function
PART NAME AND FUNCTION 1. THE STRUCTURE OF SANDWICH / SALAD UNITS EVAPORATOR SHELVES STRONG COOLING CYCLE DOOR COOLING AIR EXIT SIDE COVER COOLING AIR ENTRANCE DISPLAY PCB FRONT COVER MAIN PCB CONDENSER FAN MOTOR 2. THE STRUCTURE OF UNDERCOUNTERS COUNTER TOP EVAPORATOR SHELVES... -
Page 14: Display Panels
DISPLAY PANEL OF REFRIGERATOR AND FREEZER BASIC OPERATION 1. Plug in and turn on the power switch located on the top side of the unit front cover. The display panel will be lighted and make a beep sound. The compressor will begin to run. - Page 15 DISPLAY PANEL OF DUAL TEMP BASIC OPERATION 1. Plug in and the display panel will be lighted and make a beep sound. The compressor will begin to run. 2. The compressor is automatically cycled by the electronic controller (PCB). 3. The defrost cycle is automatically controlled by the PCB. 4.
-
Page 16: Caution
CAUTION MARK AND NOTE PROHIBITION WARNING It is dangerous NO SCREW for people NO TOUCH CAUTION OBEY It will cause injury to human or lost of property PLUG OFF Be sure not to put more Please use a dedicated Wet hands off the power plug in the socket. - Page 17 CAUTION Do not put bottled drinks in the Please do not disassemble, repair refrigerator for a long time. or alter products! - Frost crack - Fire, electric shock etc. Be sure not to touch the power when Disassemble all the switch gear the gas leak.
- Page 18 CAUTION Please choose the environment When the abnormal situation occurs, without rat to set the product. unplug the power then contact the nearest service center. - Damage the power that will cause fire. Do plug the power without dragging! Please ask more people to carry the unit.
- Page 19 CAUTION Be sure not to put pharmaceuticals Be sure to avoid the children touching and chemicals. the unit. - It will result in an explosion. - It is dangerous. Please keep the plug clean. Be sure not to put hot food in the unit. - The dust and water will cause short circuit.
-
Page 20: Installation & Operation
INSTALLATION AND OPERATION INSTALLATION NOTE Be sure to set the unit in door. Be sure that the location be chosen has a strong enough floor to support - To prevent damage, leakage. total weight of the cabinet and other contents. - The uneven will make noise and shake. -
Page 21: Cleaning & Precaution
CLEANING AND PRECAUTION CLEANING - UNPLUG THE REFRIGERATOR CLEANING THE INTERIOR AND EXTERIOR - To maintain proper refrigerator performance, the condenser coil must be free of dust, - Please clean the product with a soft damp dirt and grease. cloth. When the product is too dirty, please - This will require periodic cleaning. -
Page 22: Troubleshooting
TROUBLESHOOTING SYMPTOMS CAUSES SOLUTIONS • Thermostat set too cold. • Turn the thermostat setting Cooler is freezing to a higher temperature food. position • There is a power connection • Check the power cord and The unit does not failure problem. plug in correctly. -
Page 23: Stainless Steel Equipment Care & Cleanning
STAINLESS STEEL EQUIPMENT CARE AND CLEANING CAUTION : Do not use any steel wool, abrasive or chlorine based products to clean stainless steel surfaces. There are three basic things which can break down your stainless steel’s passivity layer and allow corrosion to occur. - Page 24 STAINLESS STEEL EQUIPMENT CARE AND CLEANING 4. Water Treatment To reduce deposits, soften the hard water when possible. Installation of certain filters can remove corrosive and distasteful elements. Salts in a properly maintained water softener can be to your advantage. Contact a treatment specialist if you are not sure of the proper water treatment.
-
Page 25: Warranty Information
Air and upon proper installation* (indoor building only) and start-up in accordance with the instruction packet supplied with each Turbo air unit. Turbo Air s obligation under this warranty is limited to a period of two (2) years from the date of original installation or twenty seven (27) months after shipment date from Turbo Air, whichever occurs first. - Page 26 WARRANTY INFORMATION What is Not Covered by This Warranty... Turbo Air’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.
-
Page 27: Warranty Registeration Card
Address: (Street / Unit #) (City) (State) (Zip Code) hereby inform and certify to Turbo Air Inc. (Manufacturer) that the product model (Owner’s Name) and serial number mentioned above was purchased on from (Date of Purchase) (Name of the Dealer) Turbo Air Inc. - Page 28 4184 E. Conant St., Long Beach, CA 90808 Toll Free: 1-800-381-7770 Fax: 310-900-1033 Email: warranty@turboairinc.com www.turboairinc.com...
