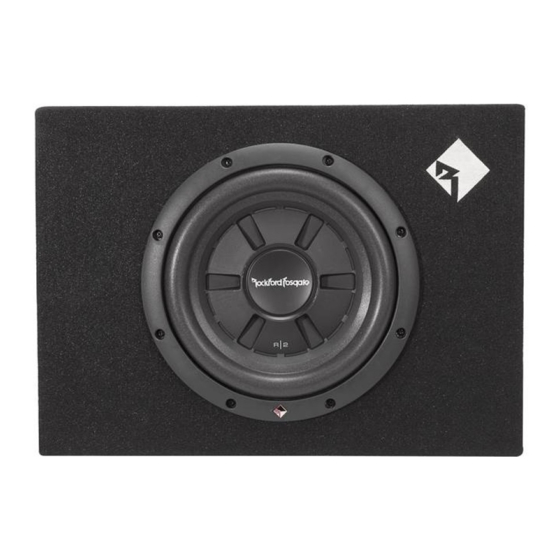

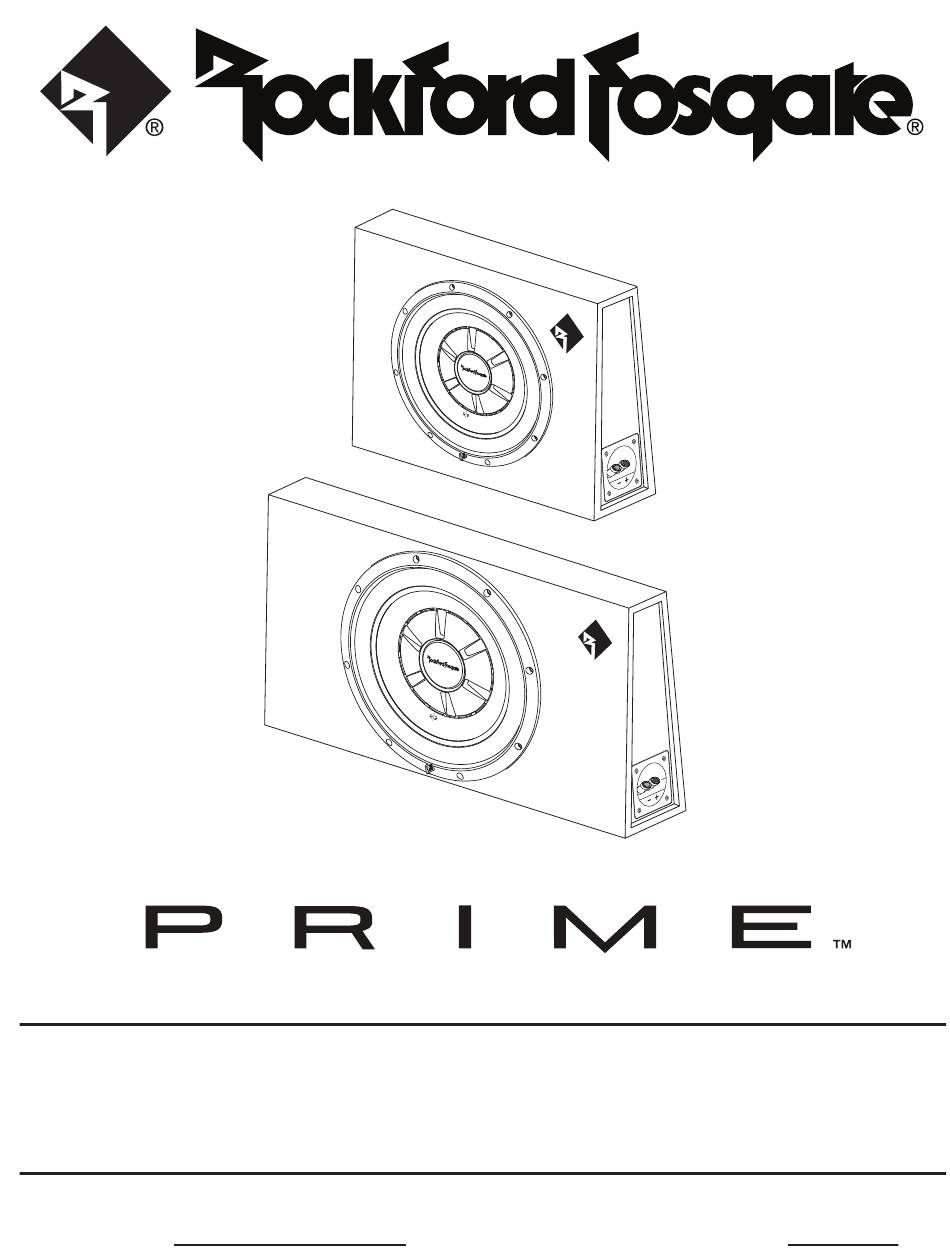

- Page 1 R2S – L OADED NCLOSURES DVC - S INGLE OICE UBWOOFERS 10" 12" Single R2S-1X10 R2S-1X12 Installation & Operation Serial Number: Date of Purchase:...
- Page 2 – E NSTALLATION NGLISH CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. Run the speaker cable from the amp. When routing the speaker cable from the amplifier, avoid running it close to any sources of high cur- rent (wiring harnesses).The positive (+) speaker output from the amp connects to the red terminal of the enclosure, and the negative (-) connects to the black terminal.
- Page 3 PECIFICATIONS R2S-1X10 Single 10" DVC R2S-1X12 Single 12" DVC Nominal Impedance (Ohms) Nominal Impedance (Ohms) 2Ω Replacement Woofer R2SD4-12 Replacement Woofer R2SD4-10 Power Handling (Watts) 250 RMS / 500 Max Power Handling (Watts) 200 RMS / 400 Max Overall Dimensions (HxWxD) 13.5”...
- Page 4 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.
