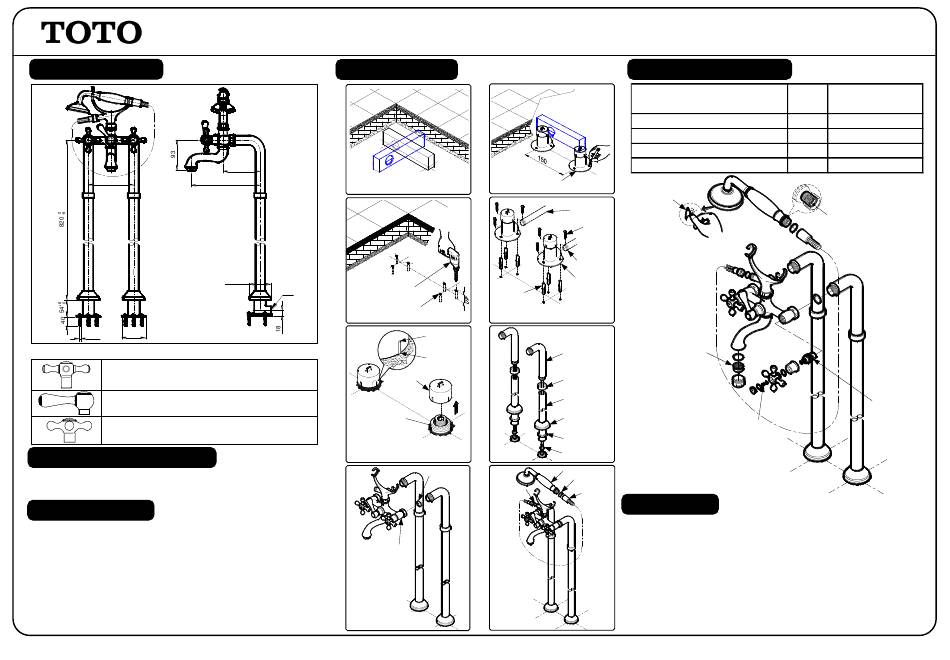

Toto CURIO TX411SCV3 Manual

SPECIFICATIONS
150
Ø80
Ø8
OPTIONAL HANDLE
TX 411 SCV3
"Curio" Cross Handle Floor Standing Bath & Shower Set
TX 411 SCLV3
"Curio" Lever Handle Floor Standing Bath & Shower Set
TX 411 SCSV3
"Curio" Simple Cross Handle Floor Standing Bath & Shower Set
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
S06070-3S
"CURIO" FLOOR STANDING BATH & SHOWER SET TX411SCV3
INSTALLATION
1
123
229
Make sure the flo or i s fla t
3
Ø72.5
Drill
G½
6 - Hole 8
5
* Cover
Mortar
* Remove the cover after th e
mortar has dry
7
Body
2
Base
4
Hot Water
Supply *
Screw
Cold W ater
Supply *
Base
Sleeve
Anchor
* Pi pe sup plied by owne r
Maximum 6
Mortar
Minimum
Pipe
Mortar
Ring
Pipe
Cover
Nut
Flexible Hose
8 Shower
Packing
Packing
Packing Flexible
Hose
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory spray 1
Flow rate unsatisfactory 2
3
Water leaks around the handle
Handle is loose 4
1. NOZZLES
2. AERATOR
4. BOLT
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and fittings.
2. Flow Regulator should not be remove because it could
damage the system
3. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the
basic installation principles are the same.
4. The hot water supply side of the faucets is in a condition of
high temperature. Do not allow skin to contact with the
hardware surface directly. Otherwise, scalding may occur.
SOLUTION
Clean
Remove and clean
Tighten
Tighten
Flow Regulator Inside
(Don t remove)
3. CERAMIC
HEAD WORK
R5
