erent Service Manual
Published
by
Service
Dent.

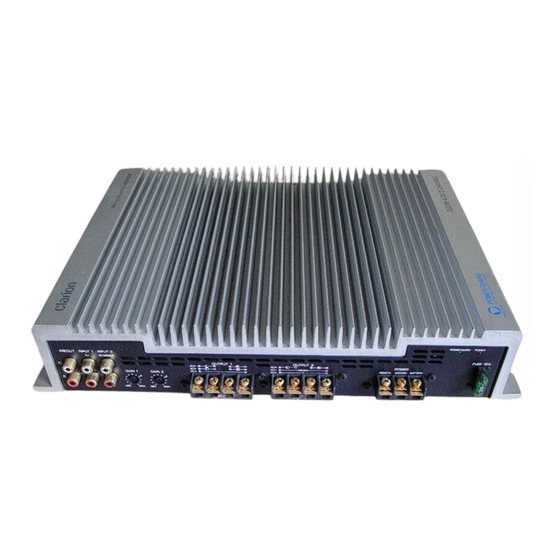

4-CHANNEL CAR AUDIO
AMPLIFIER
voce:
APA4200
(GA-952B:U.S.A.)
(GA-952E:EUROPEAN)
MSPECIFICATIONS
HCOMPONENTS
Maximum power output
@ GA-952B-51/E-51
:320watts(80 watts per
Main unit
=
1
channel)
Power cord
850-2710-00
1
Continuous average power output
Ground cord
840-0523-00
1
'50 watts per channe!
Flat terminal
321-1002-00
9
into4ohms;
Sleeve
348-0258-00
9
20Hz to 20kHz at 0.02% THD
Tapping screw
716-1705-00
4
Frequency response(-1 dB)
Plate nut
725-0242-00
4
:10Hz to 50 kHz
Cord clamp
335-0833-06
5
Signal to noise ratio(A-wtd)
Terminal cover(3P)
345-7588-00
1
'110dB
Terminal cover(4P)
345-7587-00
2
Input sensitivity(at rated output)
-:200mV to 3 V
MFEATURES
Current consumption(at full output)
@ Continuous average power output:200W
ee empe
(4 x SOW into 4 ohms,20Hz-20kHz,0.02% THD)
Speaker load capacity
@Power guard distortion limiting circuit
a
eae
@Pulse-width regulated MOS-FET power supply
Dimensions
367mm(Width)
@ Mixed mode operation
68mm{Height)
@Bridgeable for 2-,3- or 4-channel mode operation
.
250mm(Depth)
@Selectable 90Hz/140Hz,-24dB/oct. low pass filter
Weight
5.8kg
@2-ohm load capability in stereo drive
@Overheating, DC voitage,speaker lead short-circuit
protection circuits
@lsolated earthing input
* For improvement purposes, specifications and design are subject to change
without prior notice.
_ 4
Printed in Japan 298-5267-00 JUN.1995B
|A PA4200
