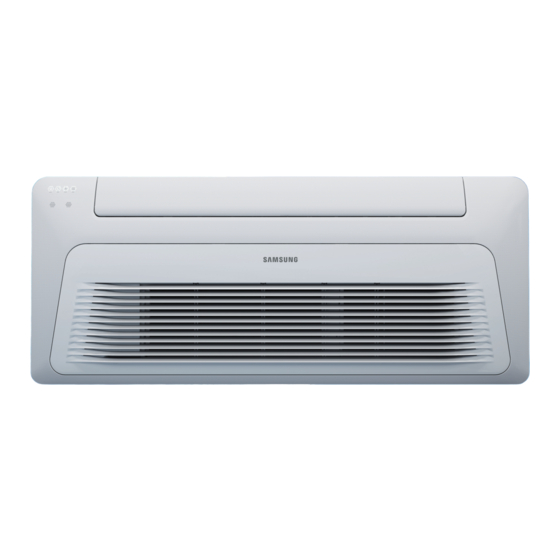

Samsung AG TN1DKH Series User Manual
Fan coil unit
Hide thumbs
Also See for AG TN1DKH Series:
- Technical data book (36 pages) ,
- User manual (22 pages) ,
- Installation manual (34 pages)
Related Manuals for Samsung AG TN1DKH Series
Summary of Contents for Samsung AG TN1DKH Series
- Page 1 Fan Coil Unit User manual AG***TN1DKH* • Thank you for purchasing this Samsung fan coil unit. • Before operating this unit, please read this user manual carefully and retain it for future reference.
-
Page 2: Table Of Contents
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit: www.samsung.com/uk/aboutsamsung/sustainability/environment/our-... -
Page 3: Safety Information
Because the following operating instructions cover various models, the characteristics of your fan coil unit may differ slightly from those described in help and information online at www.samsung.com. WARNING Hazards or unsafe practices that may result in severe personal injury or death. - Page 4 Safety Information technician or service company. • the product, or injury and may also void warranty on the installed product. Install a Isolation Switch next to the Fan Coil Unit (but not on the panels of the Fan Coil Unit)and circuit breaker dedicated to the fan coil unit. •...
- Page 5 If using the product after being left idle for an extended period of time, make sure to open the air vent valve to release air. • Running water noises may occur inside, or cooling/heating performance may degrade. • Use a bucket or hose to catch water. If using Cool mode only, in the winter season, make sure to remove stagnant water to prevent the product from freezing and bursting.
- Page 6 Safety Information FOR POWER SUPPLY WARNING When the circuit breaker is damaged, contact your nearest service centre. Do not pull or excessively bend the power line. Do not twist or tie the power line. Do not hook the power line over a metal object, place a heavy object on the power line, insert the power line between objects, or push the power line into the space behind the appliance.
- Page 7 FOR USING WARNING • If the appliance generates a strange noise, a burning smell or smoke, unplug the power plug immediately and contact your nearest service centre. • In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power line.
- Page 8 Safety Information After unpacking the fan coil unit, keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. • If a child places a bag over its head, it may result in suffocation. operation.
- Page 9 CAUTION Do not place objects or devices under the fan coil unit. • Max current is measured according to IEC standard for safety and current is Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- Page 10 Safety Information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
-
Page 11: At A Glance
Fan Coil Unit Overview The product appearance and labels may differ from the illustrations, depending on the model and panel type. 01 Display 02 Remote control sensor 04 Wind-Free panel (You can use the Wind-Free Cooling function when the Cool or Fan mode is running.) (Refer to the remote control manual for product operation) Indication... -
Page 12: Operation Features
Operation Features If using the product in a location with temperature and humidity outside the standard operating range, the protective system activates and the product may not operate. Use the product under conditions with temperature and humidity within the standard operating range. Operating temperature and humidity Mode Indoor temperature... -
Page 13: Cleaning And Maintenance
Cleaning and Maintaining CAUTION • Before cleaning, be sure to turn off the fan coil unit and the auxiliary power switch (MCCB, ELB). Cleaning the fan coil unit Wipe the surface of the indoor unit with a tepid damp cloth. Remove the dust accumulated in the narrow gaps of the product with a soft brush. -
Page 14: Cleaning The Air Filter
Cleaning and Maintaining CAUTION • Before cleaning, be sure to turn off the fan coil unit and the auxiliary power switch (MCCB, ELB). • Be sure to hold the grille with a hand to prevent dropping from the opening of the front grille. Press the PUSH signs on the front panel, then open the grille. - Page 15 soft brush. If dust is too heavy, then rinse it with running water. CAUTION • other cleaning utensil. This may damage NOTE • Unpleasant smells or unusual noises may water with a neutral detergent for about 30 minutes and then rinse it thoroughly. •...
- Page 16 Cleaning and Maintaining CAUTION • If the fan coil unit is used without the air as follows: • Fan coil unit with the wired remote control: Press the Filter Reset button. • Fan coil unit with the wireless remote control: Press the Settings <...
-
Page 17: Periodical Maintenance
Periodical maintenance Maintenance item Interval technicians At least once a month Clean the condensate drain pan. Once a year Required Clean up the heat exchange. Once a year Required Clean the condensate drain pipe. Once every 4 months Required Replace the remote control batteries. At least once a year English... -
Page 18: Troubleshooting
Cleaning and Maintaining Troubleshooting Refer to the following chart if the fan coil unit operates abnormally. This may save time and unnecessary expense. Problem Solution • Check if the power plug is properly connected. • Check whether the auxiliary power switch (MCCB, ELB) is turned on. The fan coil unit does If the auxiliary power switch (MCCB, ELB) is turned off, the fan coil not operate at all. - Page 19 Problem Solution • Check the cool/hot water supply line to ensure that the water pipe system valve is open. If this valve is locked, cold and hot water does not circulate properly, and cooling and heating do not work. Open the main valve.
- Page 20 Cleaning and Maintaining Problem Solution • If the product is used in a smelly or smoky place, ventilate the place. – You may experience unpleasant smells if the indoor temperature Unpleasant odours and humidity are high. Operate the product in Clean or Fan mode permeate the room.
-
Page 21: Technical Specifications
Model Net weight Net dimension (W x D x H) AG026TN1DKH 10.1 kg 970mm x 410mm x 135mm AG032TN1DKH 10.1 kg 970mm x 410mm x 135mm AG042TN1DKH 14.0 kg 1200mm x 450mm x 138mm English... - Page 22 ROMANIA www.samsung.com/ro/support ITALIA 800-SAMSUNG (800.7267864) CYPRUS 8009 4000 only from landline, toll free www.samsung.com/it/support 80111-SAMSUNG (80111 726 7864) only from land line GREECE (+30) 210 6897691 from mobile and land line 801-172-678* lub +48 22 607-93-33* POLAND http://www.samsung.com/pl/support/ LITHUANIA 8-800-77777 www.samsung.com/lt/support...
