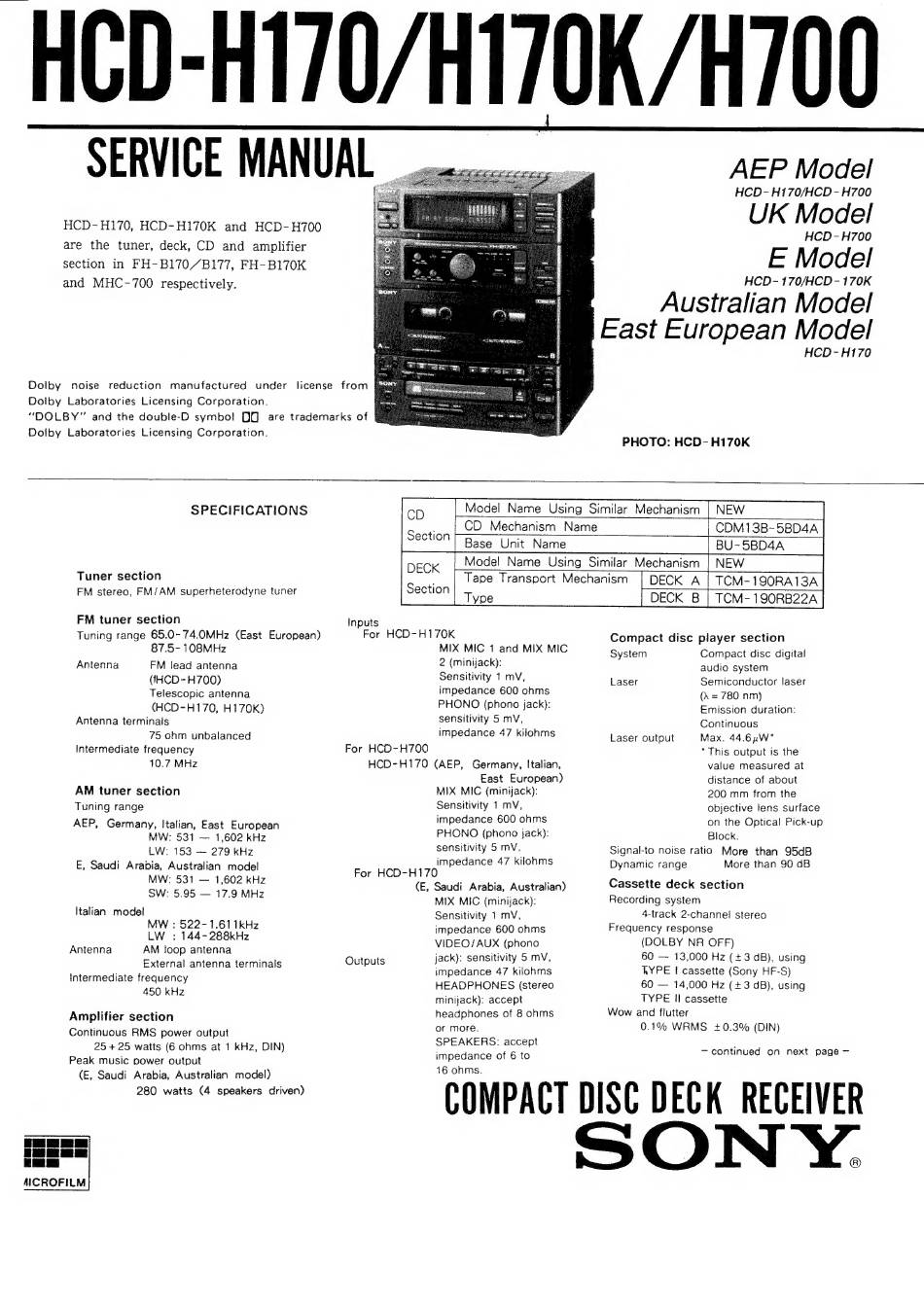

Sony HCD-H170 Service Manual

SERVICE MANUAL
HCD-H170, HCD-H170K and HCD-H700
are the tuner, deck, CD and amplifier
section in FH-B170//B177, FH-B170K '
and MHC-700 respectively.
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol 0 are trademarks of
Dolby Laboratories Licensing Corporation.
AEP Model
HCD- H170/HCD- H700
UK Model
HCD -H700
E Model
HCD- 170/HCD- 170K
Australian Model
East European Model
HCD-H170
PHOTO: HCD- H170K
SPECIFICATIONS CD
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 65.0-74.0MHz (East European)
87.5- 108MHz
FM lead antenna
(fHCD-H700)
Telescopic antenna
(HCD-H170, H170K)
Antenna terminals
75 ohm unbalanced
Intermediate frequency
10.7 MHz
Inputs
Antenna
For HCD-H700
AM tuner section
Tuning range
AEP, Germany, Italian, East European
MW: 531 — 1,602 kHz
LW: 153 — 279 kHz
E, Saudi Arabia, Australian model
MW: 531 — 1,602 kHz
SW: 5.95 — 17.9 MHz
Italian model
MW : 522-1.611kHz
LW : 144-288kHz
AM loop antenna
External antenna terminals
Intermediate frequency
450 kHz
Antenna
Outputs
Amplifier section
Continuous RMS power output
25 + 25 watts (6 ohms at 1 kHz, DIN)
Peak music power output
(E, Saudi Arabia, Australian model)
280 watts (4 speakers driven)
AICROFILM
Section
DECK
Section
For HCD-H170K
HCD-H170 (AEP, Germany, Italian,
jack): sensitivity 5 mV,
Model Name Using Similar Mechanism
CD Mechanism Name
Base Unit Name
Model Name Using Similar Mechanism
Tape Transport Mechanism | DECK A
CDM13B-5BD4A
BU-5BD4A
TCM-190RA13A
TCM- 190RB22A
Compact disc player section
MIX MIC 1 and MIX MIC
Ph System Compact disc digital
: (nindaes): audio system
Senstivity TV, Laser Semiconductor laser
* This output is the
value measured at
distance of about
200 mm from the
objective lens surface
on the Optical Pick-up
Block.
Signal-to noise ratio More than 95dB
Dynamic range More than 90 dB
East European)
MIX MIC (minijack):
Sensitivity 1 mV,
impedance 600 ohms
PHONO (phono jack):
sensitivity 5 mV,
impedance 47 kilohms
For HCD-H170
(E, Saudi Arabia, Australian)
MIX MIC (minijack):
Sensitivity 1 mV,
Cassette deck section
Recording system
4-track 2-channel stereo
Frequency response
(DOLBY NR OFF)
60 — 13,000 Hz (+3 dB), using
RYPE | cassette (Sony HF-S)
60 — 14,000 Hz (+3 dB), using
TYPE Il cassette
Wow and flutter
0.1% WRMS +0.3% (DIN)
impedance 600 ohms
VIDEO/AUX (phono
impedance 47 kilohms
HEADPHONES (stereo
minijack): accept
headphones of 8 ohms
or more.
SPEAKERS: accept
impedance of 6 to
16 ohms.
COMPACT DISC DECK RECEIVER
ONY.
— continued on next page —
