- Page 1 Forza 150B USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd...
-
Page 2: Product Diagram

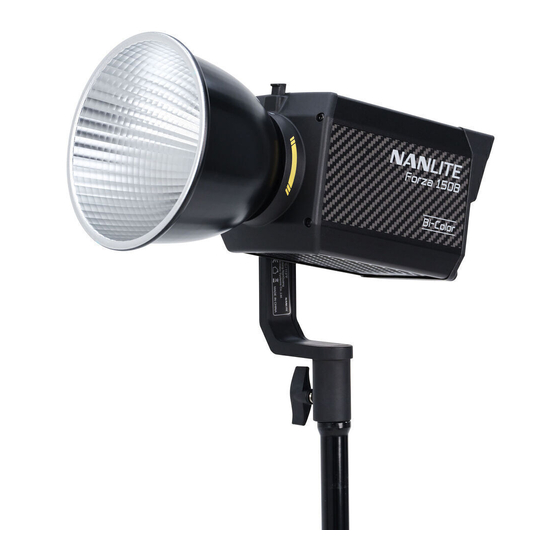

Forza 150B LED Bi-color Spot Light Product Diagram Technical Data Rated Power: 170W Input voltage/current: DC 24V/7.5A Max AC100-240V 50/60Hz Color Temperature: 2700K-6500K CRI: Average 96 TLCI: Average 98... -
Page 3: Product Details
Product Details 8. Right knob 9. Lock catch 1. LCD screen 10. Reflector 2. Left knob 3. MODE button 4. DC power socket 5. USB port 11. Angle fixing knob 6. Power switch 12. L shaped bracket 7. DMX In/Out 13. -
Page 4: Detailed Description
Detailed Description 1. LCD screen: For displaying various function, operations and data. 2. Left knob: For adjusting the DIM and scrolling through different selections. 3. MODE button: For switching between CCT mode, EFFECT mode and MENU. 4. DC power socket: DC power input socket 5. - Page 5 Usage 1. Installation of the Reflector ① When installing the reflector, ensure its mounting points align with the slots on the light fixture. When the mounting points and slots are aligned, push the reflector in place and rotate it in the direction shown on the light until it clicks into place.
- Page 6 2. Installation of Bowens Mount Adapter ① ② Adjust the L bracket to the overhead position first. When installing the adapter, ensure its mounting points align with the slots on the light fixture, rotate it according to the direction shown on the light until the adapter is put into place.
-
Page 7: Remote Control
Remote Control Forza 150B supports 2.4G remote control, DMX/RDM control, and includes a built-in Bluetooth module as well. · ▲ Address code need to be pre-set for 2.4G remote control, DMX/RDM control solutions. - Page 8 MENU MENU OUTPUT MODE: MAX OUTPUT MODE: MAX Rotate "Right knob" to CH. MENU MENU OUTPUT MODE: MAX OUTPUT MODE: MAX Rotate "Left knob" to select address code. ② DMX Mode Setting MENU MODE OUTPUT MODE: MAX Press the MODE button to enter the menu. MENU MENU BT: RESET...
- Page 9 MENU MENU BT: RESET BT: RESET DMX MODE: ULTIMATE DMX MODE: CCT 8bit Rotate "Left knob" to select the desired DMX mode. ③ DMX REDUCED CHANNELS MENU MODE OUTPUT MODE: MAX Press the MODE button to enter the MENU. MENU MENU DMX REDUCED: OUTPUT MODE: MAX...
- Page 10 ④ DMX DIMMING CURVE MENU MODE OUTPUT MODE: MAX Press the MODE button to enter the MENU. MENU MENU DMX REDUCED: OFF OUTPUT MODE: MAX DMX DIM: LINEAR Rotate the “right knob” to DMX DIM CURVE. MENU MENU DMX REDUCED: OFF DMX REDUCED: OFF DMX DIM: LINEAR...
- Page 11 MENU MENU DMX SMOOTHING: OUTPUT MODE: MAX WIRELESS PR: V1.0 Press the MODE button to enter the MENU. MENU MENU DMX SMOOTHING: DMX SMOOTHING: WIRELESS PR: V1.0 WIRELESS PR: V1.0 Rotate the “left knob” to select ON or OFF. 2. DMX Control ①...
- Page 12 Refer to the DMX reference guide and control the light via DMX/RDM console. (For detailed operation please refer to the DMX/RDM console operation manual.) Note: DMX reference guide "Forza_150B_REFERENCE_GUIDE_EN" is downloadable from www.nanlite.com. Please scan the QR to check and download the latest DMX reference guide.
- Page 13 020B：Forza 150B Manufacturer: Nanguang 4. 2.4G Remote Control The Forza 150B can be remotely controlled by 2.4G remote controller or NANLINK transmitter box. The Forza 150B · also has built-in Bluetooth connection functionality, so it can be controlled via Bluetooth module.
- Page 14 MENU MENU DMX SMOOTHING: OFF OUTPUT MODE: MAX WIRELESS PR: V1.0 Rotate ''Right knob'' to WIRELESS PROTOCOL. MENU MENU DMX SMOOTHING: OFF DMX SMOOTHING: OFF WIRELESS PR: V1.0 WIRELESS PR: V2.0 Rotate ''Left knob'' to select V1.0 or V2.0. Operating Instructions 1.
- Page 15 2. CCT Mode setting Press MODE button to CCT mode, rotate "Left knob" to adjust the DIM (DIM range: 000%…100%), roate "Right knob" to adjust the color temperature (CCT range: 2700K…6500K) CH: 512 000% 6500K MODE Press MODE button to CCT mode. CH: 512 CH: 512 000% 6500K...
- Page 16 3. EFFECT Mode setting Press MODE button to EFFECT mode. The Forza 150B has built-in effects including CCT LOOP, INT LOOP, FLASH, PULSE, STORM, TV, PAPARAZZI, CANDLE/FIRE, BAD BULB, FIREWORK, EXPLOSION and WELDING.
- Page 17 ① CCT LOOP CCT LOOP setting: rotate "Right knob" to select from DIM, CCT and SPD (Range: 02S…30S), then rotate "Left knob" to adjust the value of DIM, CCT and SPD. EFFECT CH: 512 EFFECT CH: 512 CCT LOOP FX: CCT LOOP DIM: 100% DIM: 100% Rotate "Right knob"...
- Page 18 EFFECT CH: 512 EFFECT CH: 512 FX: INT LOOP FX: INT LOOP DIM: 000%-100% DIM: 001%-100% Rotate "Left knob" to adjust the value of DIM, CCT and SPD. ③ FLASH FLASH setting: rotate "Right knob" to select from DIM, CCT and INTERVALS (INTERVALS: 0.1S…10S), then rotate "Left knob"...
- Page 19 ④ PULSE PULSE setting: rotate "Right knob" to select from DIM, CCT and PULSES/MIN (Range: 001…240), then rotate "Left knob" to adjust the value of DIM, CCT and PULSES/MIN. EFFECT CH: 512 EFFECT CH: 512 FULSE FX: FULSE DIM: 100% DIM: 100% Rotate "Right knob"...
- Page 20 EFFECT CH: 512 EFFECT CH: 512 FX: STORM FX: STORM DIM: 100% DIM: 099% Rotate "Left knob" to adjust the value of DIM, CCT and INTVL. ⑥ TV setting: rotate "Right knob" to select from DIM, CCT and SPD (Range: 001…100), then rotate "Left knob"...
- Page 21 ⑦ PAPARAZZI PAPARAZZI setting: rotate "Right knob" to select from DIM, CCT and SPD (Range: 001…100), then rotate "Left knob" to adjust the value of DIM, CCT and SPD. EFFECT CH: 512 EFFECT CH: 512 PAPARAZZI FX: PAPARAZZI DIM: 100% DIM: 100% Rotate "Right knob"...
- Page 22 EFFECT CH: 512 EFFECT CH: 512 FX: CANDLE/FIRE FX: CANDLE/FIRE DIM: 000%-100% DIM: 001%-100% Rotate "Left knob" to adjust the value of DIM, CCT and SPD. ⑨ BAD BULB BAD BULB setting: rotate "Right knob" to select from DIM, CCT and SPD (Range: 001…100), then rotate "Left knob"...
- Page 23 ⑩ FIREWORK RIREWORK setting: rotate "Right knob" to select from DIM ,CCT, SPD (Range: 001…100) and DECAY (Range: 001…100), then rotate "Left knob" to select from DIM ,CCT, SPD and DECAY. EFFECT CH: 512 EFFECT CH: 512 FIREWORK FX: FIREWORK DIM: 100% DIM: 100% Rotate "Right knob"...
- Page 24 EFFECT CH: 512 EFFECT CH: 512 FX: EXPLOSION FX: EXPLOSION DIM: 100% DIM: 099% Rotate "Left knob" to select from DIM, CCT, SPD and DECAY. ⑫ WELDING WELDING setting: rotate "Right knob" to select from DIM, CCT, SPD (Range: 001…100) and PAUSE (ON/OFF), then rotate "Left knob"...
-
Page 25: Output Mode
4. MENU setting MENU MODE OUTPUT MODE: MAX Press MODE button to MENU. MENU MENU CH: 512 OUTPUT MODE: MAX OUTPUT MODE: Press "Right knob" to select from CHANNEL, OUTPUT MODE, BLUETOOTH, DMX MODE, DMX REDUCED CHANNELS, DMX DIMMING CURVE, DMX SMOOTHING, WIRELESS PROTOCOL, FAN, FIRMWARE UPDATE, LANGUAGE and FIRMWARE VERSION. -
Page 26: Bluetooth Reset
MENU MENU CH: 512 OUTPUT MODE: MAX OUTPUT MODE: Rotate "Right knob" to OUTPUT MODE. MENU MENU CH: 512 CH: 512 OUTPUT MODE: OUTPUT MODE: CONST Rotate "Left knob" to select MAX or CONSTANT. ③ BLUETOOTH RESET MENU MODE OUTPUT MODE: MAX Press MODE button to switch to the MENU. - Page 27 MENU BT RESET RESET BACK RESET DMX MODE: ULTIMATE Press "Right knob" to the interface of bluetooth reset. BT RESET BT RESET BACK RESET BACK RESET Rotate "Right knob" to select RESET. MENU BT RESET BACK RESET OUTPUT MODE: MAX Press "Right knob"...
- Page 28 ⑦ DMX Smoothing Settting Please refer to P9 for DMX Smoothing Settting. ⑧ Wireless Protocol Setting Please refer to P12 for Wireless Protocol Setting. ⑨ MENU MODE OUTPUT MODE: MAX Press MODE button to MENU. MENU MENU FAN: OUTPUT MODE: MAX FW UPDATE: UPDATE Rotate "Right knob"...
-
Page 29: Firmware Update
⑩ FIRMWARE UPDATE Insert the USB flash drive with the latest firmware into the light fixture. MENU MODE OUTPUT MODE: MAX Press MODE button to MENU. MENU MENU FAN: OFF OUTPUT MODE: MAX FW UPDATE: UPDATE Rotate "Right knob" to the FW UPDATE. MENU FOUND FIRMWARE _V1.02.08... - Page 30 FOUND FIRMWARE _V1.02.08 FIRMWARE UPDATED BACK UPDATE Press "Right knob" to start the update, it will show "FIRMWARE UPDATED" after the firmware update is completed. ⑪ LANGUAGE MENU MODE OUTPUT MODE: MAX Press MODE button to MENU. MENU MENU LANGUAGE: ENGLISH OUTPUT MODE: MAX VERSION: V1.02.02...
- Page 31 ⑫ VERSION MENU MODE OUTPUT MODE: MAX Press MODE button to MENU. MENU MENU LANGUAGE: ENGLISH OUTPUT MODE: MAX VERSION: V1.02.02 Rotate "right knob" to VERSION to check the current firmware version. 5. Lock or Unlock Settings: long press the "Right knob" to lock the light status. The current light status cannot be changed by pressing the button or rotating the knobs.
-
Page 32: Safety Precautions
6. When the fixture is not in use, please turn it off. Safety Precautions 1. Please open the package to check for possible damage caused in transit, please do not use if damage is found and contact place of purchase or manufacturer as soon as possible. 2. - Page 33 What's in th box? Please kindly check. AS-BA-FMM AS-CAP-FMM RF-FMM-45 Forza 150B×1 Bowens mount adapter ×1 COB Protective Cap ×1 Reflector ×1 Power Adapter 24V/7.5A×1 Power Cable 4.5M ×1 DMX Reference Guide×1 User Manual×1 Forza 150B Forza 150B USER MANUAL DMX REFERENCE GUIDE Guangdong NanGuang Photo&Video Systems Co., Ltd...
- Page 34 If the failure is not resolved after troubleshooting, please contact place of purchase. This manual has been compiled according to the rigorous testing of our company's products. Product designs are subject to change without prior notice. You can download the latest version of the manual for this particular product from www.nanlite.com.
- Page 35 Version: V3 2023-04-03 +86-754-85751187 +86-754-85300887 service@nanlite.com Zhanglin,324,Dongli Chenghai Shantou Guangdong China www.nanlite.com...
